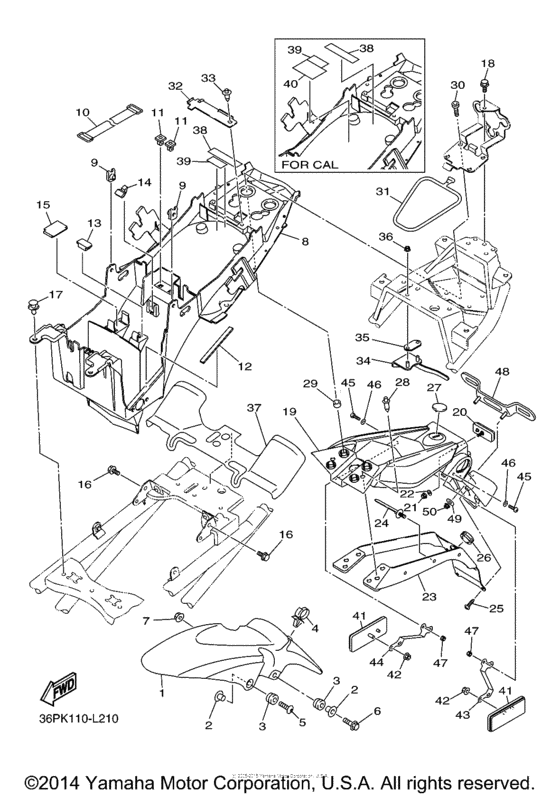

Fender Diagram Yamaha FZ6 FZ6R
- Year
- 2015
- Sales region
- USA
- Engine Capacity
- 600
- Model
- FZ6-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VX-21511-A0-P8 Fender, Frontfor Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
5VX-21511-A0-P8 |
from US $75.99 |
||
|
2
|
2
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
2
|
2
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.66 |
||
|
3
|
3
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.94 |
||
|
4
|
4
90464-18002-00 Clamp |
90464-18002-00 |
from US $1.81 |
||
|
5
|
5
90110-06202-00 Bolt, Hexagon Socket Head |
90110-06202-00 |
from US $1.81 |
||
|
6
|
6
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
7
|
7
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
8
|
8
20S-21611-00-00 Fender, Rear |
20S-21611-00-00 |
from US $33.15 |
||
|
9
|
9
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
9
|
9
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
10
|
10
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
10
|
10
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
11
|
11
904-80070-03-00 Grommet |
904-80070-03-00 |
from US $1.42 |
||
|
12
|
12
5JW-2174X-00-00 Damper |
5JW-2174X-00-00 |
from US $0.45 |
||
|
13
|
13
20S-216A2-00-00 Seal, 2 |
20S-216A2-00-00 |
from US $1.98 |
||
|
14
|
14
20S-216A3-00-00 Seal, 3 |
20S-216A3-00-00 |
from US $2.69 |
||
|
15
|
15
20S-216A4-00-00 Seal, 4 |
20S-216A4-00-00 |
from US $2.55 |
||
|
16
|
16
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
16
|
16
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
16
|
16
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
17
|
17
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.81 |
||
|
18
|
18
95822-06010-00 Bolt, Flange |
95822-06010-00 |
from US $0.90 |
||
| replacements | |||||
|
18
|
18
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
18
|
18
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
19
|
19
20S-21629-10-00 Guard, Mud |
20S-21629-10-00 |
from US $22.24 |
||
|
20
|
20
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $11.12 |
||
|
21
|
21
95602-05100-00 Nut, U |
95602-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
21
|
21
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
22
|
22
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
23
|
23
20S-21688-01-00 Bracket, Rear Stay |
20S-21688-01-00 |
from US $72.67 |
||
|
24
|
24
90464-31001-00 Clamp |
90464-31001-00 |
from US $2 |
||
| replacement | |||||
|
24
|
24
90464-20005-00 Clamp |
90464-20005-00 |
from US $2.55 |
||
|
25
|
25
901-60050-12-00 Screw, Round Tapping |
901-60050-12-00 |
from US $1.52 |
||
|
26
|
26
90480-23345-00 Grommet |
90480-23345-00 |
from US $1.98 |
||
|
27
|
27
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $20.39 |
||
|
28
|
28
90269-07001-00 Rivet |
90269-07001-00 |
from US $1.81 |
||
|
29
|
29
903-87062-32-00 Collar |
903-87062-32-00 |
from US $2.13 |
||
|
30
|
30
91312-08025-00 Bolt |
91312-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
31
|
31
3YX-21376-00-00 Band, Tool |
3YX-21376-00-00 |
from US $11.33 |
||
|
32
|
32
20S-21677-01-00 Plate, Fitting 3 |
20S-21677-01-00 |
US $4.96 |
||
|
33
|
33
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.66 |
||
|
34
|
34
36P-2115J-00-00 Bracket, Helmet Hanger |
36P-2115J-00-00 |
from US $19.84 |
||
|
35
|
35
20S-24792-00-00 Plate |
20S-24792-00-00 |
from US $1.56 |
||
|
36
|
36
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
37
|
37
36P-21639-00-00 Damper 2 |
36P-21639-00-00 |
from US $20.54 |
||
|
38
|
38
3JJ-28446-A1-00 Label, Caution |
3JJ-28446-A1-00 |
from US $4.39 |
||
|
39
|
39
3TB-24877-A0-00 Label, Caution |
3TB-24877-A0-00 |
from US $1.84 |
||
|
40
|
40
5VX-21684-00-00 Plate, RoutingFOR CALIFORNIA |
5VX-21684-00-00 |
from US $5.81 |
||
|
41
|
41
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $11.12 |
||
|
42
|
42
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
42
|
42
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
43
|
43
36P-2164F-00-00 Stay 1 |
36P-2164F-00-00 |
US $16.15 |
||
|
44
|
44
36P-2164G-00-00 Stay 2 |
36P-2164G-00-00 |
US $13.50 |
||
|
45
|
45
98502-04012-00 Screw, Pan Head |
98502-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
45
|
45
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
45
|
45
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
46
|
46
929-02046-00-00 Washer, Plate |
929-02046-00-00 |
from US $0.95 |
||
| replacement | |||||
|
46
|
46
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
47
|
47
95602-04100-00 Nut, U |
95602-04100-00 |
from US $4.25 |
||
| replacement | |||||
|
47
|
47
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $4.25 |
||
|
48
|
48
39P-84751-00-00 Bracket, License |
39P-84751-00-00 |
US $27.31 |
||
|
49
|
49
90201-06088-00 Washer, Plate |
90201-06088-00 |
from US $1.81 |
||
|
50
|
50
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
50
|
50
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
