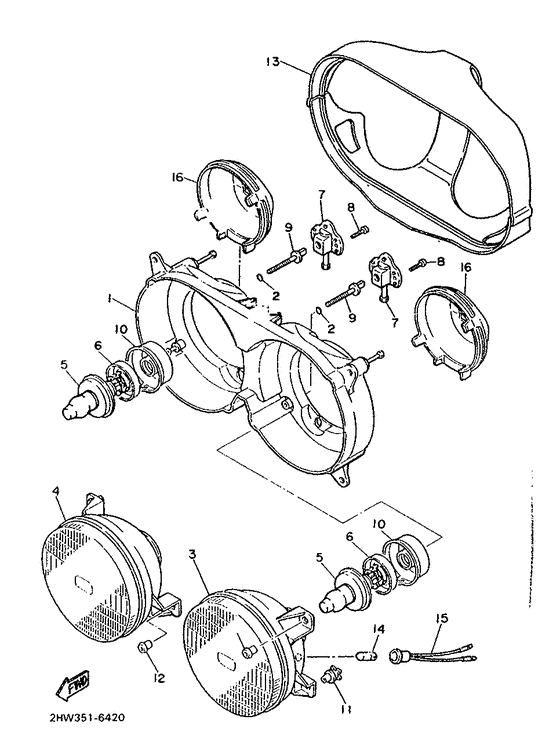

Headlight Diagram Yamaha FZ600
- Year
- 1986
- Colour
- Silky White (SW; 00GE)
- Model code
- 2HW
- Sales region
- France (999)
- Engine Capacity
- 600
- Model
- FZ600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2AX-84330-A0-00
Body Assy
|
2AX-84330-A0-00 |
— | ||
| replacement | |||||
|
01
|
01
2AX-84330-00-00
Body Assembly
|
2AX-84330-00-00 |
— | ||
|
02
|
02
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
03
|
03
2HW-84320-F0-00
Lens Assy
|
2HW-84320-F0-00 |
— | ||
|
04
|
04
2HW-8432A-F0-00
Lens Assy
|
2HW-8432A-F0-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
07
|
07
46X-8430M-00-00 Gear Unit Assembly |
46X-8430M-00-00 |
US $30.13 |
||
| replacement | |||||
|
07
|
07
3LD-8430M-00-00 Gear Unit Assembly |
3LD-8430M-00-00 |
US $30.13 |
||
|
08
|
08
97706-40616-00 Screw, Tapping |
97706-40616-00 |
from US $1.26 |
||
| replacement | |||||
|
08
|
08
97707-40616-00 Screw, Tapping |
97707-40616-00 |
from US $1.42 |
||
|
09
|
09
46X-84331-00-00
Screw, Rim Adjusting
|
46X-84331-00-00 |
— | ||
|
10
|
10
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
11
|
11
51L-8431U-00-00
Holder
|
51L-8431U-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3AJ-8431U-00-00 Holder |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
12
|
12
51L-84332-00-00 Spring, Screw |
51L-84332-00-00 |
from US $4.96 |
||
|
13
|
13
2AX-84396-00-00
Cover
|
2AX-84396-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
34L-84346-00-00 Socket, Pilot Light |
34L-84346-00-00 |
US $21.11 |
||
| replacement | |||||
|
15
|
15
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
16
|
16
46X-84397-01-00
Cover, Socket
|
46X-84397-01-00 |
— | ||
