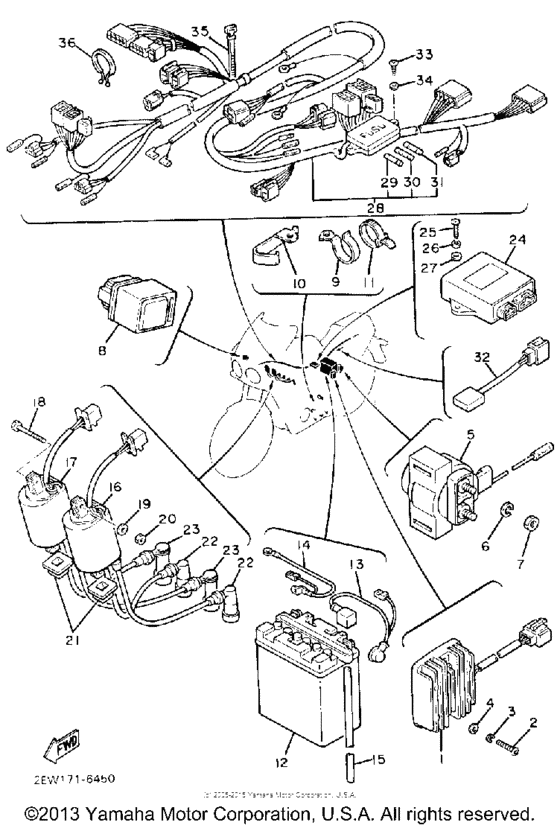

Electrical (1) Diagram Yamaha FZ600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- FZ600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2XL-81960-A0-00 Rectifier/reg Assembly |
2XL-81960-A0-00 |
US $214.88 |
||
|
2
|
2
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
2
|
2
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
36Y-81940-00-00 Starter Relay Assy |
36Y-81940-00-00 |
from US $87.73 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
7
|
7
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
8
|
8
4U8-81950-02-00 Relay Assy (4U8-02)4U8-02 FOR SIDE STAND |
4U8-81950-02-00 |
from US $83.86 |
||
| replacement | |||||
|
8
|
8
4U8-81950-03-00 Relay Assy4U8-02 FOR SIDE STAND |
4U8-81950-03-00 |
from US $93.93 |
||
|
9
|
9
90462-08078-00 Clamp |
90462-08078-00 |
from US $6.23 |
||
|
10
|
10
90462-08087-00 Clamp |
90462-08087-00 |
US $10.63 |
||
|
11
|
11
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
11
|
11
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
12
|
12
BTY-12N12-A4-A1
Yuasa 12N12A-4A-1 (366-82110-60
12N12A-4A-1 UR |
BTY-12N12-A4-A1 |
— | ||
| replacement | |||||
|
12
|
12
12N-12A4A-1Y-00
CB16CLB GS BATTERY
12N12A-4A-1 UR |
12N-12A4A-1Y-00 |
— | ||
|
13
|
13
1UT-82115-00-00
Wire, Plus Lead
|
1UT-82115-00-00 |
— | ||
|
14
|
14
2AX-82116-00-00
Wire, Minus Lead
|
2AX-82116-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90445-08380-00 Hose |
90445-08380-00 |
US $10.91 |
||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
2XL-82310-10-00 Ignition Coil Asy |
2XL-82310-10-00 |
from US $189.28 |
||
| replacement | |||||
|
16
|
16
1WG-82310-09-00 Ignition Coil Assy |
1WG-82310-09-00 |
from US $200.13 |
||
|
17
|
17
2XL-82320-10-00 Ignition Coil Asy |
2XL-82320-10-00 |
from US $189.28 |
||
| replacement | |||||
|
17
|
17
1WG-82310-09-00 Ignition Coil Assy |
1WG-82310-09-00 |
from US $200.13 |
||
|
18
|
18
973-01060-65-00 Bolt, Hexagon |
973-01060-65-00 |
from US $0.52 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
21
|
21
4U8-82317-00-00 Damper, Ignition Coil |
4U8-82317-00-00 |
from US $5.38 |
||
|
22
|
22
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
22
|
22
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
22
|
22
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
|
23
|
23
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
23
|
23
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $38.34 |
||
|
23
|
23
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $38.34 |
||
|
24
|
24
2XL-82305-10-00
Ignitor Unit Assembly 1
|
2XL-82305-10-00 |
— | ||
|
25
|
25
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
25
|
25
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
28
|
28
2XL-82590-00-00
Wire Harness Assembly
|
2XL-82590-00-00 |
— | ||
|
29
|
29
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
29
|
29
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
30
|
30
1A0-82161-00-00 Fuse (12V-20A)12V-20A |
1A0-82161-00-00 |
from US $11.96 |
||
|
31
|
31
2H7-82151-00-00 Fuse12V-30A |
2H7-82151-00-00 |
from US $4.82 |
||
|
32
|
32
4U8-81980-M0-00 Diode AssyFOR SIDE STAND SAFETY DEVISE |
4U8-81980-M0-00 |
from US $57.89 |
||
|
33
|
33
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
|
34
|
34
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
34
|
34
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
34
|
34
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
35
|
35
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
35
|
35
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
36
|
36
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
36
|
36
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
