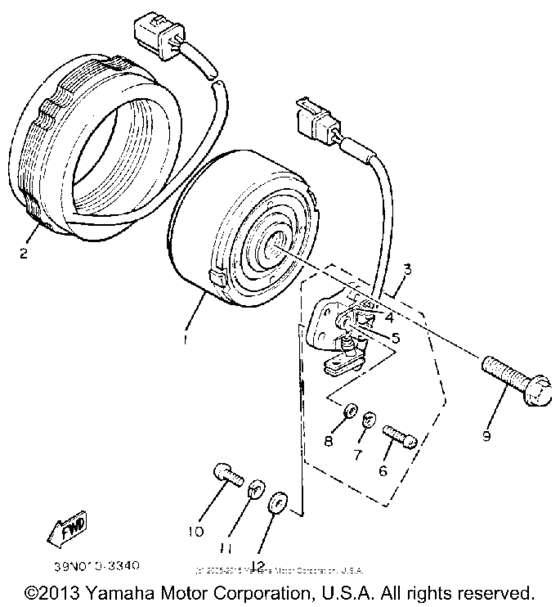

Generator Diagram Yamaha FZ600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- FZ600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2XL-81650-10-00
Rotor Assembly
|
2XL-81650-10-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2XL-81610-10-00
Stator Assembly
|
2XL-81610-10-00 |
— | ||
|
3
|
3
46X-81619-10-00
Brush Holder Assembly
|
46X-81619-10-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
46X-81611-10-00
Brush 1
|
46X-81611-10-00 |
— | ||
|
5
|
5
4G0-81612-10-00 Brush 2 |
4G0-81612-10-00 |
from US $21.91 |
||
|
6
|
6
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
7
|
7
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
8
|
8
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
9
|
9
90105-10152-00 Bolt, Flange |
90105-10152-00 |
from US $9.63 |
||
|
10
|
10
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
10
|
10
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
