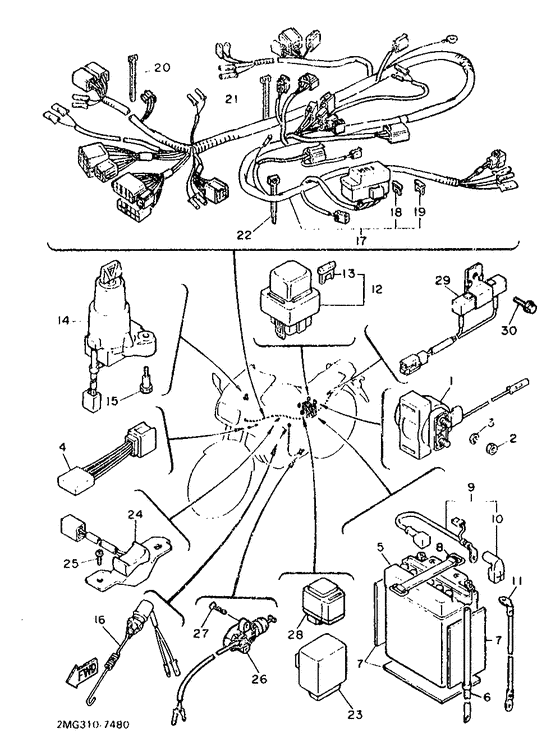

Electrical 2 Diagram Yamaha FZ750 FZ750 Genesis
- Year
- 1987
- Colour
- X005
- Model code
- 2MH
- Sales region
- Austria (999)
- Engine Capacity
- 750
- Model
- FZ750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
36Y-81940-00-00 Starter Relay Assy |
36Y-81940-00-00 |
from US $87.73 |
||
|
02
|
02
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
02
|
02
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
02
|
02
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
03
|
03
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
04
|
04
4U8-81980-M0-00 Diode AssyFor side stand safty devise |
4U8-81980-M0-00 |
from US $57.89 |
||
|
05
|
05
447-82110-78-00
Battery Assy
Yamaha |
447-82110-78-00 |
— | ||
| replacements | |||||
|
05
|
05
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
Yamaha |
YB1-4LA20-00-00 |
— | ||
|
05
|
05
CB1-4LA20-00-00
element
Yamaha |
CB1-4LA20-00-00 |
— | ||
|
06
|
06
90445-083A4-00 Hose (L1500) |
90445-083A4-00 |
from US $10.91 |
||
| replacement | |||||
|
06
|
06
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
07
|
07
5G3-82121-00-00 Seat, Battery |
5G3-82121-00-00 |
from US $4.53 |
||
| replacement | |||||
|
07
|
07
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
08
|
08
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.78 |
||
|
09
|
09
36Y-82115-00-00 Wire, Plus Lead |
36Y-82115-00-00 |
from US $49.06 |
||
| replacement | |||||
|
09
|
09
1TX-82115-00-00 Wire, Plus Lead |
1TX-82115-00-00 |
from US $49.06 |
||
|
10
|
10
4X7-82119-00-00 Cover, Lead Wire |
4X7-82119-00-00 |
from US $13.07 |
||
|
11
|
11
1AE-82116-00-00
Wire, Minus Lead
|
1AE-82116-00-00 |
— | ||
| replacement | |||||
|
11
|
11
1UF-82116-00-00
Wire, Minus Lead
|
1UF-82116-00-00 |
— | ||
|
12
|
12
1AE-82150-00-00 Fuse Holder Assy |
1AE-82150-00-00 |
from US $38.41 |
||
|
13
|
13
1AE-82151-00-00 Fuse (30A-Bl) |
1AE-82151-00-00 |
from US $2.02 |
||
|
14
|
14
41Y-82501-81-00
Main Switch Steering Lock
|
41Y-82501-81-00 |
— | ||
|
15
|
15
90109-06614-00 Bolt |
90109-06614-00 |
from US $1.98 |
||
| replacements | |||||
|
15
|
15
901-09062-82-00 Bolt |
901-09062-82-00 |
from US $1.62 |
||
|
15
|
15
97527-06516-00 Bolt, W/ Plain |
97527-06516-00 |
from US $1.70 |
||
|
16
|
16
33M-82530-00-00
Stop Switch Assy
|
33M-82530-00-00 |
— | ||
| replacements | |||||
|
16
|
16
33M-82530-02-00
Stop Switch Assembly
|
33M-82530-02-00 |
— | ||
|
16
|
16
33M-82530-01-00
Stop Switch Assy
|
33M-82530-01-00 |
— | ||
|
17
|
17
2MG-82590-00-00
Wire Harness Assy
|
2MG-82590-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
42X-82151-20-00 Fuse (10A-Bl) |
42X-82151-20-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
42X-82151-00-00 Fuse (10A-Bl) |
42X-82151-00-00 |
from US $1.66 |
||
|
19
|
19
36Y-82151-00-00 Fuse (15A-Blue) |
36Y-82151-00-00 |
from US $2.86 |
||
|
20
|
20
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
21
|
21
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
21
|
21
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
22
|
22
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
22
|
22
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
23
|
23
1AE-85740-01-00
Control Unit Assembly
|
1AE-85740-01-00 |
— | ||
|
24
|
24
1AE-83964-00-00 Switch |
1AE-83964-00-00 |
US $61.52 |
||
| replacement | |||||
|
24
|
24
3TJ-83964-10-00 Switch |
3TJ-83964-10-00 |
US $61.52 |
||
|
25
|
25
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.81 |
||
|
26
|
26
2KT-82566-00-00
Switch, Side Stand
|
2KT-82566-00-00 |
— | ||
| replacement | |||||
|
26
|
26
2KT-82566-01-00
Switch, Side Stand
|
2KT-82566-01-00 |
— | ||
|
27
|
27
90152-05016-00 Screw, Flat Head |
90152-05016-00 |
from US $2.27 |
||
| replacement | |||||
|
27
|
27
98707-05014-00 Screw, Flat Head |
98707-05014-00 |
from US $1.94 |
||
|
28
|
28
4U8-81950-01-00 Relay AssyFor side stand |
4U8-81950-01-00 |
from US $83.86 |
||
| replacements | |||||
|
28
|
28
4U8-81950-02-00 Relay Assy (4U8-02)For side stand |
4U8-81950-02-00 |
from US $83.86 |
||
|
28
|
28
4U8-81950-03-00 Relay AssyFor side stand |
4U8-81950-03-00 |
from US $93.93 |
||
|
29
|
29
1AE-85370-00-00 Resistor Assy |
1AE-85370-00-00 |
US $96.77 |
||
| replacement | |||||
|
29
|
29
3KS-85370-00-00 Resistor Assembly |
3KS-85370-00-00 |
US $94.86 |
||
|
30
|
30
95826-06012-00 Bolt, Flange |
95826-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
