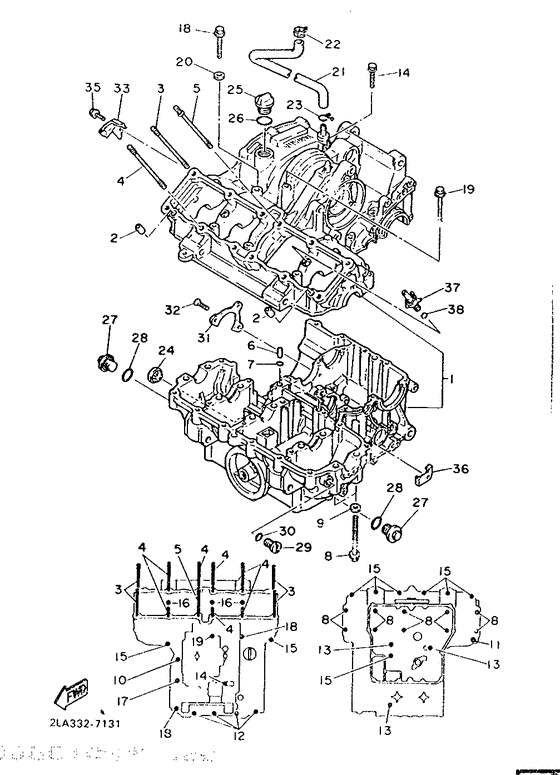

Crankcase Diagram Yamaha FZR1000
- Year
- 1987
- Colour
- Urushi Black (URB; 00JW)
- Model code
- 2LA
- Sales region
- Germany (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2GH-15100-01-00
Crankcase Assy
|
2GH-15100-01-00 |
— | ||
| replacements | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
01
|
01
2GH-15100-02-00
Crankcase Assembly
|
2GH-15100-02-00 |
— | ||
|
02
|
02
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
02
|
02
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
02
|
02
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
03
|
03
90116-09458-00
Bolt, Stud
|
90116-09458-00 |
— | ||
|
04
|
04
90116-09500-00 Bolt, Stud (1Aa) |
90116-09500-00 |
US $11.27 |
||
|
05
|
05
90116-09501-00 Bolt, Stud |
90116-09501-00 |
US $11.27 |
||
| replacement | |||||
|
05
|
05
90116-09500-00 Bolt, Stud (1Aa) |
90116-09500-00 |
US $11.27 |
||
|
06
|
06
90387-05383-00 Collar |
90387-05383-00 |
from US $2.69 |
||
|
07
|
07
932-10071-35-00 O-Ring (Small) |
932-10071-35-00 |
from US $2.22 |
||
|
08
|
08
90105-09373-00 Bolt, Flange |
90105-09373-00 |
from US $7.72 |
||
|
09
|
09
902-01096-J9-00 Washer, Plate |
902-01096-J9-00 |
from US $1.81 |
||
|
10
|
10
95816-06035-00 Bolt, Flange |
95816-06035-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-06035-00 Bolt, Flange |
95817-06035-00 |
from US $1.02 |
||
|
11
|
11
958-16080-45-00
Bolt, Flange
|
958-16080-45-00 |
— | ||
| replacement | |||||
|
11
|
11
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.18 |
||
|
12
|
12
95816-06060-00 Bolt, Flange |
95816-06060-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
95817-06060-00 Bolt, Flange |
95817-06060-00 |
from US $1.98 |
||
|
13
|
13
95816-06080-00 Bolt, Flange |
95816-06080-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-06080-00 Bolt, Flange |
95817-06080-00 |
from US $1.07 |
||
|
14
|
14
95816-06140-00 Bolt, Flange |
95816-06140-00 |
from US $4.11 |
||
| replacement | |||||
|
14
|
14
95817-06140-00
Bolt, Flange
|
95817-06140-00 |
— | ||
|
15
|
15
958-16080-45-00
Bolt, Flange
|
958-16080-45-00 |
— | ||
| replacement | |||||
|
15
|
15
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.18 |
||
|
16
|
16
95816-08055-00 Bolt, Flange |
95816-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
17
|
17
95816-08065-00 Bolt, Flange |
95816-08065-00 |
from US $5.10 |
||
| replacements | |||||
|
17
|
17
90105-084A1-00 Bolt, Flange |
90105-084A1-00 |
from US $5.55 |
||
|
17
|
17
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $5.97 |
||
|
18
|
18
95816-08090-00 Bolt, Flange |
95816-08090-00 |
from US $2.25 |
||
| replacement | |||||
|
18
|
18
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
19
|
19
95816-08135-00 Bolt, Flange |
95816-08135-00 |
US $4.73 |
||
| replacement | |||||
|
19
|
19
95817-08135-00 Bolt, Flange |
95817-08135-00 |
US $4.73 |
||
|
20
|
20
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
21
|
21
1AE-11166-00-00 Pipe, Breather 1 |
1AE-11166-00-00 |
US $25.06 |
||
|
22
|
22
90467-15054-00 Clip |
90467-15054-00 |
from US $1.28 |
||
|
23
|
23
90467-14056-00 Clip |
90467-14056-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
24
|
24
4H7-15361-00-00 Gauge, Level |
4H7-15361-00-00 |
from US $26.07 |
||
| replacement | |||||
|
24
|
24
2H7-15361-00-00 Gauge, Level |
2H7-15361-00-00 |
from US $28.71 |
||
|
25
|
25
2H9-15361-00-00
Gauge, Level
|
2H9-15361-00-00 |
— | ||
|
26
|
26
932-10271-94-00
O-Ring
|
932-10271-94-00 |
— | ||
| replacement | |||||
|
26
|
26
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $4.04 |
||
|
27
|
27
4K0-15189-00-00 Plug |
4K0-15189-00-00 |
from US $13.70 |
||
|
28
|
28
932-10205-73-00 O-Ring |
932-10205-73-00 |
from US $2.02 |
||
|
29
|
29
90340-14079-00 Plug, Straight Screw |
90340-14079-00 |
from US $14.03 |
||
|
30
|
30
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.94 |
||
|
31
|
31
1AE-15383-00-00
Plate, Bearing Cover
|
1AE-15383-00-00 |
— | ||
|
32
|
32
901-51060-14-00 Screw, Countersunk (4H7) |
901-51060-14-00 |
from US $2.35 |
||
|
33
|
33
90465-08291-00
Clamp
|
90465-08291-00 |
— | ||
|
35
|
35
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
35
|
35
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
36
|
36
90462-08158-00 Clamp |
90462-08158-00 |
US $7.25 |
||
|
37
|
37
2GH-15105-01-00
Nozzle Assembly
|
2GH-15105-01-00 |
— | ||
|
38
|
38
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
