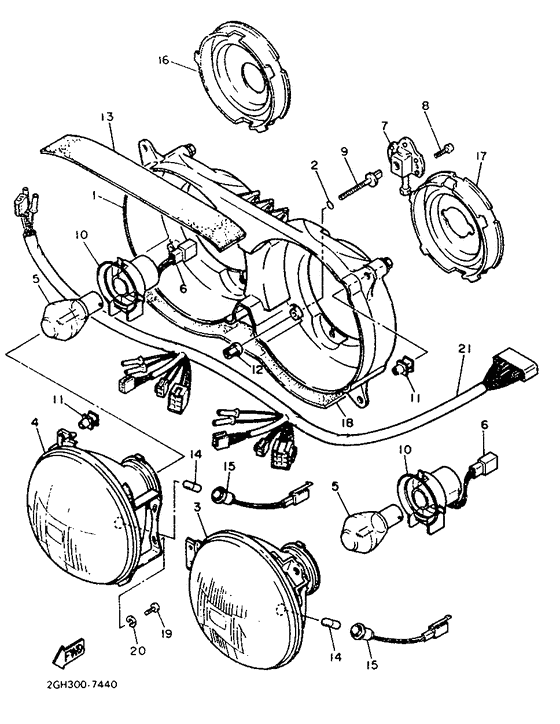

Headlight Diagram Yamaha FZR1000
- Year
- 1987
- Colour
- Urushi Black (URB; 00JW)
- Model code
- 2LA
- Sales region
- Germany (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2GH-84330-00-00
Body Assy
|
2GH-84330-00-00 |
— | ||
|
02
|
02
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
03
|
03
2GH-84320-00-00
Lens Assy
|
2GH-84320-00-00 |
— | ||
|
04
|
04
2GH-8432A-00-00
Lens Assy
|
2GH-8432A-00-00 |
— | ||
|
06
|
06
14A-84112-40-00
Socket
Lm |
14A-84112-40-00 |
— | ||
| replacement | |||||
|
06
|
06
4GA-84112-00-00
Socket
Lm |
4GA-84112-00-00 |
— | ||
|
07
|
07
46X-8430M-00-00 Gear Unit Assembly |
46X-8430M-00-00 |
US $30.13 |
||
| replacement | |||||
|
07
|
07
3LD-8430M-00-00 Gear Unit Assembly |
3LD-8430M-00-00 |
US $30.13 |
||
|
08
|
08
97706-40616-00 Screw, Tapping |
97706-40616-00 |
from US $1.26 |
||
| replacement | |||||
|
08
|
08
97707-40616-00 Screw, Tapping |
97707-40616-00 |
from US $1.42 |
||
|
09
|
09
2AX-84331-00-00
Screw, Rim Adjusting
|
2AX-84331-00-00 |
— | ||
|
10
|
10
3Y3-84197-00-00
Cover, Socket
|
3Y3-84197-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5T8-84397-00-00
Cover, Socket
|
5T8-84397-00-00 |
— | ||
|
11
|
11
51L-8431U-00-00
Holder
|
51L-8431U-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3AJ-8431U-00-00 Holder |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
12
|
12
51L-84334-00-00 Nut, Adjusting |
51L-84334-00-00 |
from US $10.55 |
||
|
13
|
13
2GH-84396-00-00
Cover
|
2GH-84396-00-00 |
— | ||
|
15
|
15
2LA-84312-00-00
Cord Assy
|
2LA-84312-00-00 |
— | ||
|
16
|
16
2LA-84397-00-00
Cover, Socket
|
2LA-84397-00-00 |
— | ||
|
17
|
17
2LA-84397-10-00
Cover, Socket
|
2LA-84397-10-00 |
— | ||
|
18
|
18
2GH-84396-10-00
Cover
|
2GH-84396-10-00 |
— | ||
| replacements | |||||
|
18
|
18
2GH-84396-00-00
Cover
|
2GH-84396-00-00 |
— | ||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
985-02040-08-00
Screw, Pan Head
|
985-02040-08-00 |
— | ||
| replacement | |||||
|
19
|
19
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
20
|
20
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
21
|
21
2GH-84359-00-00
Cord, Headlight
|
2GH-84359-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
