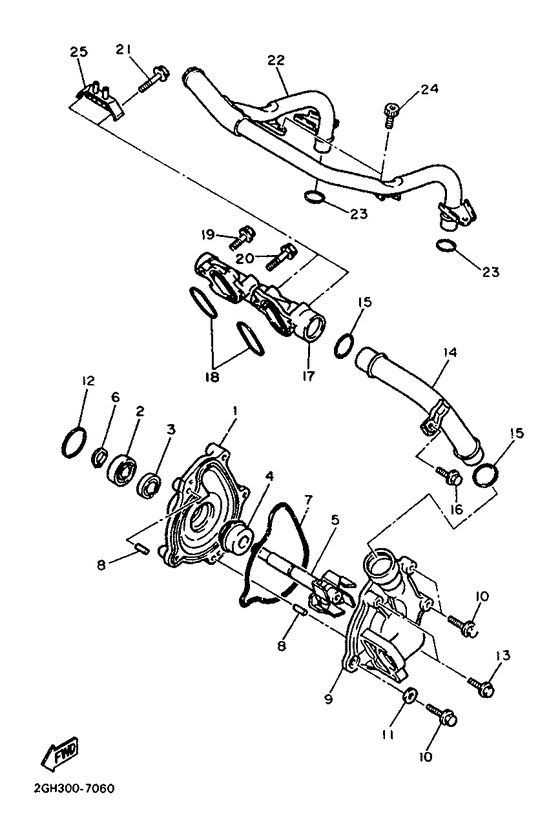

Water pump Diagram Yamaha FZR1000
- Year
- 1987
- Colour
- Urushi Black (URB; 00JW)
- Model code
- 2LA
- Sales region
- Germany (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1UF-12421-01-00
Housing, Water Pump
|
1UF-12421-01-00 |
— | ||
| replacement | |||||
|
01
|
01
1UF-12421-09-00
Housing, Water Pump
|
1UF-12421-09-00 |
— | ||
|
02
|
02
933-06001-06-00
Bearing
|
933-06001-06-00 |
— | ||
| replacement | |||||
|
02
|
02
93306-00105-00 Bearing |
93306-00105-00 |
from US $9.44 |
||
|
03
|
03
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
03
|
03
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $5.40 |
||
|
04
|
04
11H-12438-00-00
Seal, Mechanical
|
11H-12438-00-00 |
— | ||
| replacement | |||||
|
04
|
04
11H-12438-10-00 Seal, Mechanical |
11H-12438-10-00 |
from US $22.90 |
||
|
05
|
05
1UF-12450-00-00
Impeller Shaft Assembly
|
1UF-12450-00-00 |
— | ||
|
06
|
06
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
07
|
07
1AE-12439-00-00 O-Ring |
1AE-12439-00-00 |
from US $16.58 |
||
|
08
|
08
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.70 |
||
|
09
|
09
1AE-12422-01-00
Cover, Housing
|
1AE-12422-01-00 |
— | ||
| replacements | |||||
|
09
|
09
1AE-12422-09-00
Cover, Housing
|
1AE-12422-09-00 |
— | ||
|
09
|
09
1AE-12422-00-00
Cover,housing
|
1AE-12422-00-00 |
— | ||
|
10
|
10
950-26060-25-00
Bolt, Flange
|
950-26060-25-00 |
— | ||
| replacements | |||||
|
10
|
10
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
10
|
10
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
|
11
|
11
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
12
|
12
932-10331-33-00 O-Ring |
932-10331-33-00 |
from US $1.81 |
||
|
13
|
13
95026-06050-00 Bolt, Flange |
95026-06050-00 |
from US $1.53 |
||
| replacements | |||||
|
13
|
13
90105-06798-00 Bolt, Flange |
90105-06798-00 |
from US $3.89 |
||
|
13
|
13
950-27060-50-00
Bolt, Flange
|
950-27060-50-00 |
— | ||
|
14
|
14
1AE-12481-00-00 Pipe 1 |
1AE-12481-00-00 |
from US $28.21 |
||
| replacement | |||||
|
14
|
14
1AE-12481-01-00 Pipe 1 |
1AE-12481-01-00 |
from US $28.21 |
||
|
15
|
15
93210-23692-00 O-Ring |
93210-23692-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
932-10237-87-00 O-Ring |
932-10237-87-00 |
from US $1.36 |
||
|
16
|
16
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
17
|
17
1AE-12469-01-00
Joint 1
|
1AE-12469-01-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
93210-30694-00 O-Ring |
93210-30694-00 |
from US $1.94 |
||
|
19
|
19
95026-06020-00 Bolt, Flange |
95026-06020-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
20
|
20
950-26060-30-00
Bolt, Flange
|
950-26060-30-00 |
— | ||
| replacements | |||||
|
20
|
20
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
20
|
20
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
21
|
21
95026-06040-00 Bolt, Flange |
95026-06040-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.52 |
||
|
22
|
22
2GH-12482-00-00
Pipe 2
|
2GH-12482-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
932-10184-17-00 O-Ring |
932-10184-17-00 |
from US $1.94 |
||
|
24
|
24
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
24
|
24
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
25
|
25
2GH-14413-00-00
Stay
|
2GH-14413-00-00 |
— | ||
