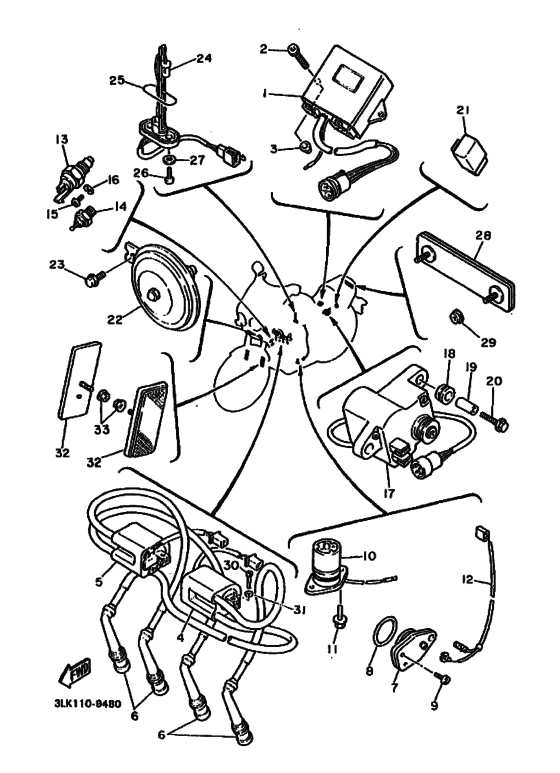

Electrical 1 Diagram Yamaha FZR1000
- Year
- 1989
- Colour
- Silky White (SW; 00GE)
- Model code
- 3LK3
- Sales region
- Europe (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-82305-00-00
Ignitor Unit Assy
|
3GM-82305-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3GM-82305-09-00
Ignitor Unit Assy
|
3GM-82305-09-00 |
— | ||
|
2
|
2
90110-06158-00 Bolt, Hexagon Socket Head(2Gh) |
90110-06158-00 |
US $1.77 |
||
|
3
|
3
31A-14477-00-00
Plate
|
31A-14477-00-00 |
— | ||
| replacement | |||||
|
3
|
3
31A-14477-10-00 Plate |
31A-14477-10-00 |
US $2.98 |
||
|
4
|
4
3GM-82310-00-00
Ignition Coil Asy
|
3GM-82310-00-00 |
— | ||
| replacement | |||||
|
4
|
4
1WG-82310-09-00 Ignition Coil Assy |
1WG-82310-09-00 |
from US $200.13 |
||
|
5
|
5
3GM-82320-00-00
Ignition Coil Asy
|
3GM-82320-00-00 |
— | ||
| replacement | |||||
|
5
|
5
1WG-82310-09-00 Ignition Coil Assy |
1WG-82310-09-00 |
from US $200.13 |
||
|
6
|
6
2KT-82370-00-00 Plug Cap Assembly |
2KT-82370-00-00 |
from US $42.14 |
||
|
7
|
7
1AE-82540-00-00 Neutral Switch Assy |
1AE-82540-00-00 |
from US $25.24 |
||
|
8
|
8
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.81 |
||
|
9
|
9
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
9
|
9
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
10
|
10
3GM-85720-00-00 Oil Level Gauge Assembly |
3GM-85720-00-00 |
US $260.91 |
||
|
11
|
11
950-26060-16-00
Bolt, Flange
|
950-26060-16-00 |
— | ||
| replacement | |||||
|
11
|
11
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
12
|
12
1AE-82509-00-00
Wire, Sub Lead
|
1AE-82509-00-00 |
— | ||
|
13
|
13
2EL-82560-00-00 Thermo Switch Assy |
2EL-82560-00-00 |
from US $59.22 |
||
| replacement | |||||
|
13
|
13
3LN-82560-01-00 Thermo Switch Assy |
3LN-82560-01-00 |
from US $61.07 |
||
|
14
|
14
11H-83591-00-00 Thermo Unit |
11H-83591-00-00 |
from US $90.36 |
||
|
15
|
15
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
15
|
15
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
15
|
15
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
16
|
16
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
3HW-85820-00-00 Servo Motor Assy |
3HW-85820-00-00 |
US $406.26 |
||
| replacement | |||||
|
17
|
17
3HW-85820-02-00 Servo Motor Assy 1 |
3HW-85820-02-00 |
US $398.36 |
||
|
18
|
18
90480-14412-00 Grommet |
90480-14412-00 |
from US $1.90 |
||
|
19
|
19
90387-065V1-00 Collar |
90387-065V1-00 |
from US $3.69 |
||
| replacement | |||||
|
19
|
19
90387-0609L-00 Collar |
90387-0609L-00 |
from US $4.68 |
||
|
20
|
20
91001-06030-00 Bolt, Flange |
91001-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
21
|
21
2UJ-83350-00-00 Flasher Relay Assy |
2UJ-83350-00-00 |
from US $113.29 |
||
| replacement | |||||
|
21
|
21
2UJ-83350-01-00 Flasher Relay Assy |
2UJ-83350-01-00 |
from US $99.19 |
||
|
22
|
22
2TV-83371-00-00 Horn |
2TV-83371-00-00 |
from US $59.20 |
||
| replacement | |||||
|
22
|
22
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
23
|
23
91026-06012-00 Bolt |
91026-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
24
|
24
3GM-85752-00-00 Sender Unit Assy, Fuel Meter |
3GM-85752-00-00 |
from US $76.81 |
||
| replacements | |||||
|
24
|
24
3GM-85752-02-00
Sender Unit Assy, Fuel Meter
|
3GM-85752-02-00 |
— | ||
|
24
|
24
3GM-85752-03-00 Sender Unit Assy, Fuel Meter |
3GM-85752-03-00 |
from US $105.64 |
||
|
25
|
25
42X-85753-00-00 Gasket, Sender Unit |
42X-85753-00-00 |
from US $3.38 |
||
|
26
|
26
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
27
|
27
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
27
|
27
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
28
|
28
1FK-85130-00-00 Rear Reflector Assy |
1FK-85130-00-00 |
from US $27.05 |
||
| replacement | |||||
|
28
|
28
8Y7-85130-00-00 Rear Reflector Assy |
8Y7-85130-00-00 |
US $22.34 |
||
|
29
|
29
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
30
|
30
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
32
|
32
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
33
|
33
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
33
|
33
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
