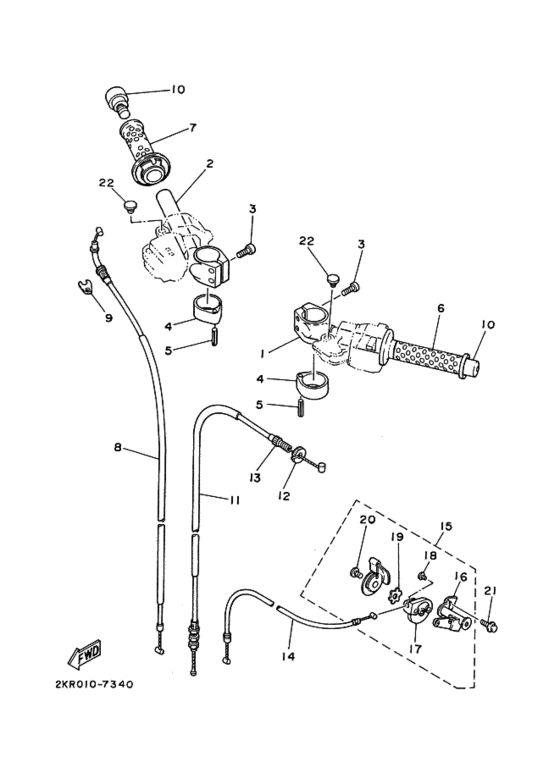

Steering handle & cable Diagram Yamaha FZR250 FZR250 Genesis
- Year
- 1987
- Colour
- Silky White (SW; 00GE)
- Model code
- 2KR0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- FZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2KR-26121-00-00
Handlebar (Left)
ハンドルバー ; レフト |
2KR-26121-00-00 |
— | ||
|
2
|
2
2KR-26122-00-00
Handlebar (Right)
ハンドルバー ; ライト |
2KR-26122-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2KR-26122-10-00
Handlebar (Right)
ハンドルバー ; ライト |
2KR-26122-10-00 |
— | ||
|
3
|
3
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
4
|
4
2KR-26114-00-00
Stopper, Handle Bar
ストツパ，ハンドルバー; |
2KR-26114-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
ストツパ，ハンドルバー; |
999-99999-99-00 |
— | ||
|
5
|
5
91609-40228-00
Pin, Spring
|
91609-40228-00 |
— | ||
|
6
|
6
1KG-26241-00-00
Grip (Left)
グリツプ ; レフト |
1KG-26241-00-00 |
— | ||
|
7
|
7
1KG-26240-00-00
Grip Assy
|
1KG-26240-00-00 |
— | ||
|
8
|
8
2KR-26311-00-00
Cable, Throttle 1
ケーブル，スロツトル １; |
2KR-26311-00-00 |
— | ||
| replacement | |||||
|
8
|
8
2KR-26311-01-00
Cable, Throttle 1
ケーブル，スロツトル １; |
2KR-26311-01-00 |
— | ||
|
9
|
9
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.47 |
||
|
10
|
10
1GU-26246-00-00 End, Grip |
1GU-26246-00-00 |
US $18.99 |
||
| replacement | |||||
|
10
|
10
5GJ-26246-00-00 End, Grip |
5GJ-26246-00-00 |
from US $13.82 |
||
|
11
|
11
2KR-26335-00-00
Cable, clutch
ケーブル，クラツチ; |
2KR-26335-00-00 |
— | ||
|
12
|
12
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
12
|
12
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
12
|
12
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
13
|
13
90123-08083-00 Bolt |
90123-08083-00 |
from US $3.74 |
||
| replacements | |||||
|
13
|
13
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
13
|
13
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
14
|
14
2KR-26331-00-00
Cable, Starter 1
ケーブル，スタータ １; |
2KR-26331-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
ケーブル，スタータ １; |
999-99999-99-00 |
— | ||
|
15
|
15
2KR-83940-00-00
Starter Assy
スターターアセンブリ; |
2KR-83940-00-00 |
— | ||
|
16
|
16
2KR-28357-00-00
Stay 2
．ステー ２; |
2KR-28357-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
．ステー ２; |
999-99999-99-00 |
— | ||
|
17
|
17
1WG-83942-00-00 Cover, Starter．カバー，スタータ; |
1WG-83942-00-00 |
from US $27.47 |
||
|
18
|
18
98906-03006-00 Screw, Bind．スクリユ，バインド; |
98906-03006-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
98907-03006-00 Screw, Bind．スクリユ，バインド; |
98907-03006-00 |
from US $1.20 |
||
|
19
|
19
90209-10131-00 Washer．ワツシヤ; |
90209-10131-00 |
from US $1.84 |
||
|
20
|
20
98906-06008-00 Screw, Binding (8G6)．スクリユ，バインド; |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
20
|
20
98907-06008-00 Screw, Bind．スクリユ，バインド; |
98907-06008-00 |
from US $1.39 |
||
|
21
|
21
91006-06010-00 Bolt, Flangeボルト，フランジ; |
91006-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
95817-06010-00 Bolt, Flangeボルト，フランジ; |
95817-06010-00 |
from US $1.18 |
||
|
22
|
22
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
