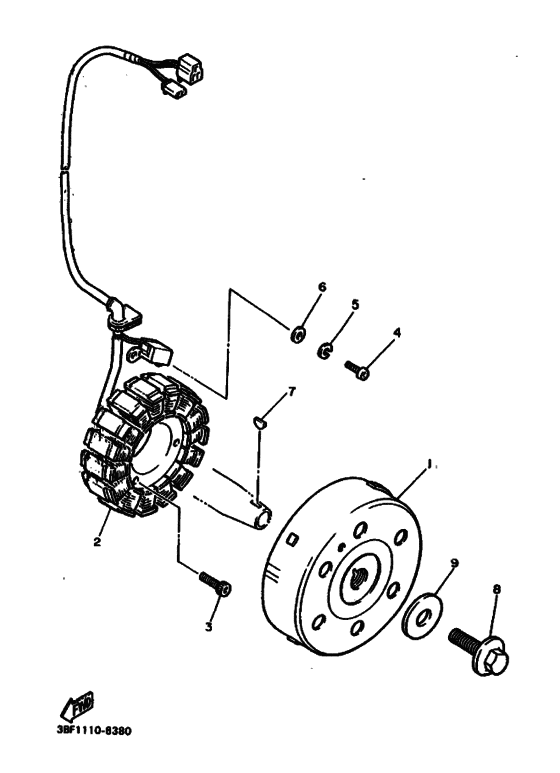

Generator Diagram Yamaha FZR400
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 3BF2
- Sales region
- Europe (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- FZR400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FH-81450-10-00
Rotor Assembly
|
3FH-81450-10-00 |
— | ||
|
2
|
2
3FH-81410-10-00
Stator Assembly
|
3FH-81410-10-00 |
— | ||
|
3
|
3
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
4
|
4
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
4
|
4
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
4
|
4
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
5
|
5
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
6
|
6
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
6
|
6
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
7
|
7
90280-03047-00 Key, Woodruff |
90280-03047-00 |
from US $5.06 |
||
|
8
|
8
90105-10430-00 Bolt, Flange |
90105-10430-00 |
from US $7.65 |
||
|
9
|
9
902-01107-K6-00 Washer, Plate |
902-01107-K6-00 |
from US $9.42 |
||
