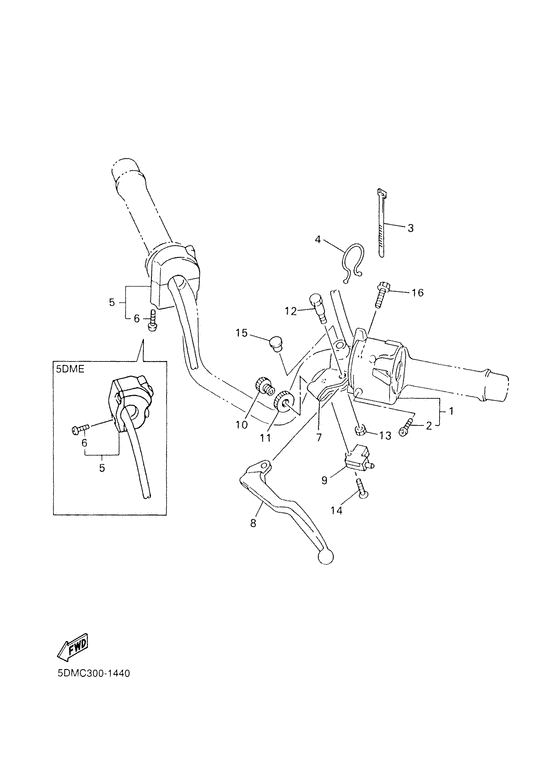

Handle switch & lever Diagram Yamaha FZS600 FAZER
- Year
- 2001
- Colour
- Silver Metallic 1 (SM1; 0660)
- Model code
- 5DMC
- Sales region
- Norway (110)
- Engine Capacity
- 600
- Model
- FZS600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5DM-83969-00-00
Switch, Handle 5
|
5DM-83969-00-00 |
— | ||
|
02
|
02
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
03
|
03
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
04
|
04
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
04
|
04
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
05
|
05
5DM-83963-01-00 Switch, Handle 3 (Right) |
5DM-83963-01-00 |
US $172.70 |
||
|
06
|
06
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
|
07
|
07
3YX-82911-01-00 Holder, Lever 1 |
3YX-82911-01-00 |
from US $24.98 |
||
|
08
|
08
3YX-83912-00-00 Lever 1 |
3YX-83912-00-00 |
from US $28.44 |
||
|
09
|
09
3YX-82917-00-00
Switch
|
3YX-82917-00-00 |
— | ||
| replacement | |||||
|
09
|
09
3YX-82917-01-00 Switch |
3YX-82917-01-00 |
from US $21.77 |
||
|
10
|
10
90123-08096-00 Bolt |
90123-08096-00 |
from US $2.81 |
||
|
11
|
11
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
12
|
12
3YX-83945-00-00 Bolt, Lever |
3YX-83945-00-00 |
from US $8.64 |
||
|
13
|
13
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
14
|
14
98707-03020-00 Screw, Flat Head |
98707-03020-00 |
from US $1.56 |
||
|
15
|
15
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
16
|
16
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
