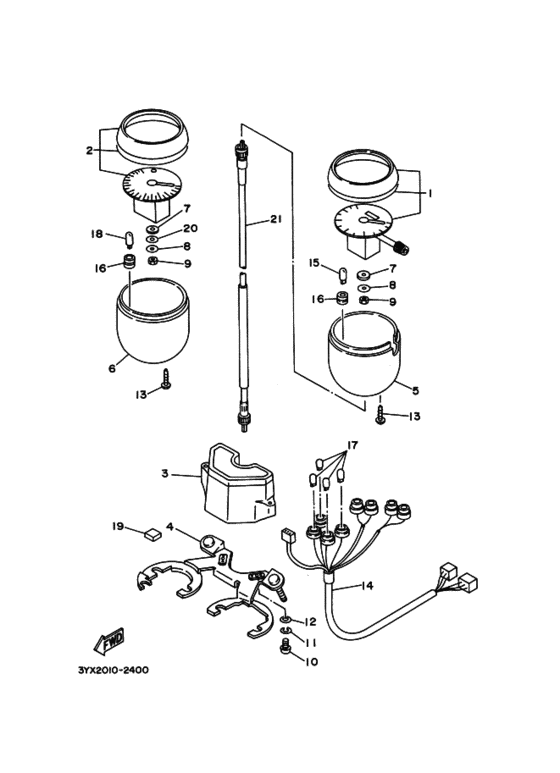

Meter Diagram Yamaha FZX250 ZEAL
- Year
- 1992
- Colour
- Frost Silver (FRS; 009G)
- Model code
- 3YX2
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- C
- Model
- FZX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3YX-83570-00-00
Speedometer Assy
スピードメータアセンブリ; |
3YX-83570-00-00 |
— | ||
|
2
|
2
3YX-83540-00-00
Tachometer Assy
タコメータアセンブリ; |
3YX-83540-00-00 |
— | ||
|
3
|
3
3YX-83530-00-00
Pilot Light Assy
|
3YX-83530-00-00 |
— | ||
|
4
|
4
3YX-83519-00-00
Bracket, Meter
ブラケツト，メータ; |
3YX-83519-00-00 |
— | ||
|
5
|
5
42X-83507-00-00 Case Comp, Underカバー，スピードメータ; |
42X-83507-00-00 |
from US $77.23 |
||
|
6
|
6
42X-83508-00-00 Cover, Tachometerカバー，タコメータ; |
42X-83508-00-00 |
from US $88.28 |
||
|
7
|
7
1FG-83523-00-00 Damper |
1FG-83523-00-00 |
from US $7.37 |
||
|
8
|
8
90201-05031-00 Washer, Plateワツシヤ，プレート; |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
8
|
8
90201-05725-00 Washer, Plateワツシヤ，プレート; |
90201-05725-00 |
from US $1.70 |
||
|
8
|
8
90201-05043-00 Washer, Plateワツシヤ，プレート; |
90201-05043-00 |
from US $1.70 |
||
|
9
|
9
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Springワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
929-01046-00-00
Washer
ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90046-00-00 Washer, Plateワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
13
|
13
90164-04009-00 Screw, Tapping |
90164-04009-00 |
from US $2.69 |
||
| replacement | |||||
|
13
|
13
90164-04023-00 Screw, Tapping(71E) |
90164-04023-00 |
from US $1.84 |
||
|
14
|
14
3YX-83509-00-00
Socket Cord Assy
ソケツトコードアセンブリ; |
3YX-83509-00-00 |
— | ||
|
15
|
15
2GV-83517-00-00 Bulb (12V-1.7W)バルブ ; １２Ｖ−１７Ｗ， Ｔ６５ |
2GV-83517-00-00 |
from US $4.53 |
||
| replacement | |||||
|
15
|
15
3FV-83517-00-00 Bulb (12V-1.7W)バルブ ; １２Ｖ−１７Ｗ， Ｔ６５ |
3FV-83517-00-00 |
from US $4.99 |
||
|
16
|
16
1FK-83523-00-00 Damper |
1FK-83523-00-00 |
from US $3.60 |
||
|
17
|
17
4G1-84744-00-00 Bulb (12V-3.4W T10)１２Ｖ−３４Ｗ |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
17
|
17
4G1-84744-00-XX
Bulb (12V-3.4W T10)
１２Ｖ−３４Ｗ |
4G1-84744-00-XX |
— | ||
|
18
|
18
42X-83517-00-00 Bulb (14V-3.4W)バルブ ; １２Ｖ−３Ｗ |
42X-83517-00-00 |
from US $2.83 |
||
| replacement | |||||
|
18
|
18
3FV-83517-00-00 Bulb (12V-1.7W)バルブ ; １２Ｖ−３Ｗ |
3FV-83517-00-00 |
from US $4.99 |
||
|
19
|
19
34M-2139X-00-00 Damper |
34M-2139X-00-00 |
from US $4.25 |
||
|
20
|
20
929-01086-00-00
Washer
ワツシヤ，プレート; |
929-01086-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.66 |
||
|
21
|
21
11L-83550-00-00 Sdmtr Cableスピードメータケーブルアセンブリ; |
11L-83550-00-00 |
from US $30.46 |
||
| replacement | |||||
|
21
|
21
3VP-83550-02-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
3VP-83550-02-00 |
from US $30.46 |
||
