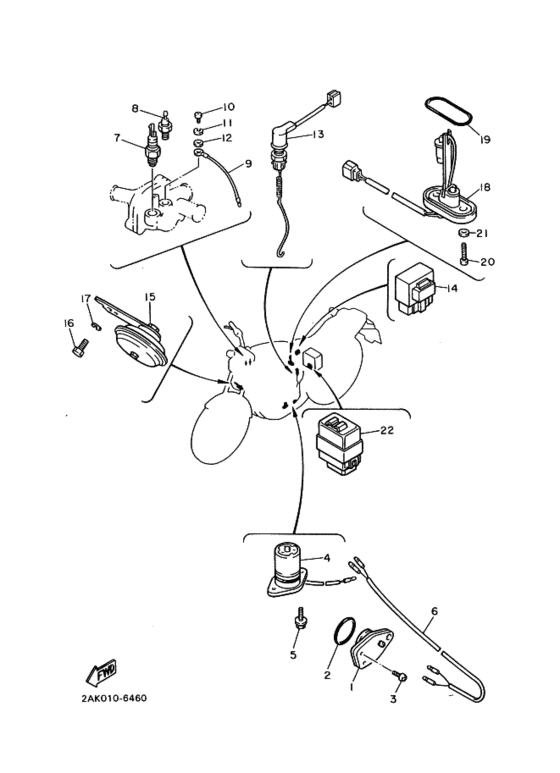

Electrical 2 Diagram Yamaha FZX750
- Year
- 1986
- Colour
- Orion Silver (OS; 00GA)
- Model code
- 2AK0
- Sales region
- Japan (010)
- Engine Capacity
- 750
- Color Variant
- A
- Model
- FZX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1AE-82540-00-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
1AE-82540-00-00 |
from US $25.24 |
||
|
2
|
2
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.81 |
||
|
3
|
3
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
3
|
3
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
4
|
4
4H7-85720-01-00 Oil Lvl Gauge Assemblyオイルレベルゲージアセンブリ; |
4H7-85720-01-00 |
from US $183.75 |
||
| replacement | |||||
|
4
|
4
4H7-85720-02-00 オイルレベルゲージアセンブリ; |
4H7-85720-02-00 |
US $190.94 |
||
|
5
|
5
950-26060-16-00
Bolt, Flange
ボルト，フランジ; |
950-26060-16-00 |
— | ||
| replacement | |||||
|
5
|
5
901-05066-96-00 Bolt, Flangeボルト，フランジ; |
901-05066-96-00 |
from US $2.64 |
||
|
6
|
6
1AE-82509-00-00
Wire, Sub Lead
ワイヤ，サブリード; |
1AE-82509-00-00 |
— | ||
|
7
|
7
47X-82560-00-00 Thermo Switch Assyサーモスイツチアセンブリ; |
47X-82560-00-00 |
US $60.35 |
||
| replacement | |||||
|
7
|
7
3LN-82560-01-00 Thermo Switch Assyサーモスイツチアセンブリ; |
3LN-82560-01-00 |
from US $61.07 |
||
|
8
|
8
11H-83591-00-00 Thermo Unitサーモ ユニツト; |
11H-83591-00-00 |
from US $90.36 |
||
|
9
|
9
26H-83354-00-00
Wire, Earth Lead 1
ワイヤ，アースリード １; |
26H-83354-00-00 |
— | ||
| replacements | |||||
|
9
|
9
4NK-83354-00-00
Wire, Earth Lead 1
ワイヤ，アースリード １; |
4NK-83354-00-00 |
— | ||
|
9
|
9
999-99999-99-00
Not Available
ワイヤ，アースリード １; |
999-99999-99-00 |
— | ||
|
10
|
10
985-01040-08-00
Screw, Pan Head
|
985-01040-08-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
11
|
11
929-02041-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-02041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Springワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
929-01046-00-00
Washer
ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90046-00-00 Washer, Plateワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
13
|
13
1UF-82530-00-00
Stop Switch Assy
|
1UF-82530-00-00 |
— | ||
| replacement | |||||
|
13
|
13
1UF-82530-02-00
Stop Switch Assembly
|
1UF-82530-02-00 |
— | ||
|
14
|
14
42H-85740-00-00 RELAY Main Primary Fuel Pumpコントロールユニツトアセンブリ; |
42H-85740-00-00 |
from US $193.42 |
||
|
15
|
15
1UF-83371-00-00 Hornホーン; |
1UF-83371-00-00 |
US $96.05 |
||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
ホーン; |
999-99999-99-00 |
— | ||
|
16
|
16
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
16
|
16
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
1UF-85752-00-00 Sender Unit Assy, Fuel Meterセンダユニツトアセンブリ，フユエルメータ; |
1UF-85752-00-00 |
US $85.19 |
||
| replacements | |||||
|
18
|
18
1UF-85752-10-00
Sender Unit Assy, Fuel Meter
センダユニツトアセンブリ，フユエルメータ; |
1UF-85752-10-00 |
— | ||
|
18
|
18
1UF-85752-03-00
Sender Unit Assy, Fuel Meter
センダユニツトアセンブリ，フユエルメータ; |
1UF-85752-03-00 |
— | ||
|
19
|
19
42X-85753-00-00 Gasket, Sender Unit |
42X-85753-00-00 |
from US $3.38 |
||
|
20
|
20
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
21
|
21
902-02060-10-00
Washer Plate 178147660000
ワツシヤ，プレート; |
902-02060-10-00 |
— | ||
| replacement | |||||
|
21
|
21
902-02051-87-00 Washer, Plateワツシヤ，プレート; |
902-02051-87-00 |
from US $1.50 |
||
|
22
|
22
47G-83350-41-00
Flasher Relay Assy
フラツシヤリレーアセンブリ; |
47G-83350-41-00 |
— | ||
