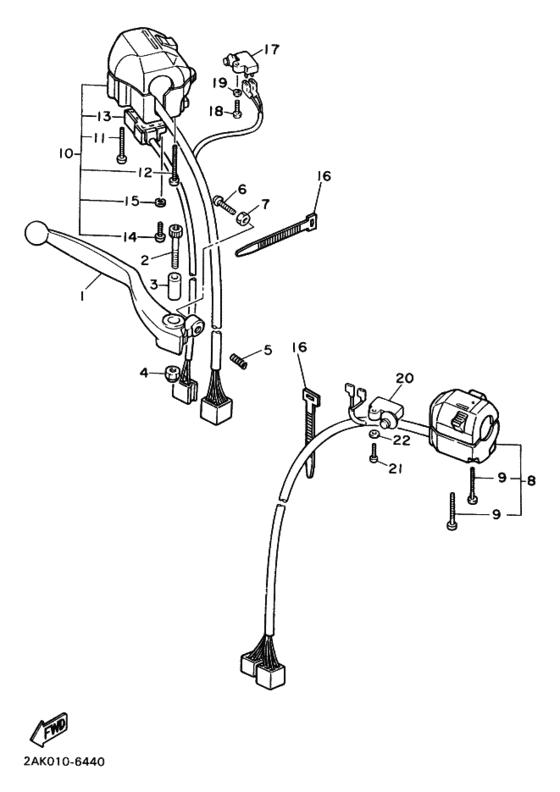

Handle switch & lever Diagram Yamaha FZX750
- Year
- 1986
- Colour
- Orion Silver (OS; 00GA)
- Model code
- 2AK0
- Sales region
- Japan (010)
- Engine Capacity
- 750
- Color Variant
- A
- Model
- FZX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36Y-83922-00-00 Lever 2レバー ２; |
36Y-83922-00-00 |
from US $24.37 |
||
|
2
|
2
90110-06074-00 Bolt, Hexagon Socket Head |
90110-06074-00 |
from US $1.84 |
||
|
3
|
3
36Y-83913-00-00 Collar, Lever 1カラー，レバー １; |
36Y-83913-00-00 |
from US $6.09 |
||
| replacement | |||||
|
3
|
3
36Y-83913-01-00 Collar, Lever 1カラー，レバー １; |
36Y-83913-01-00 |
from US $6.09 |
||
|
4
|
4
95606-06100-00 Nut, Uナツト，ｕ; |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
4
|
4
95617-06100-00 Nut, Uナツト，ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
5
|
5
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
6
|
6
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
7
|
7
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
8
|
8
2AK-83972-00-00
Switch, Handle 4
|
2AK-83972-00-00 |
— | ||
|
9
|
9
98506-05035-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
98507-05035-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05035-00 |
from US $1.42 |
||
|
10
|
10
2AK-83972-10-00
Switch, Handle 4
|
2AK-83972-10-00 |
— | ||
|
11
|
11
98506-05040-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98507-05040-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05040-00 |
from US $1.42 |
||
|
12
|
12
98506-05045-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-05045-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98507-05045-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05045-00 |
from US $1.52 |
||
|
13
|
13
42H-83964-00-00
Switch
．スイツチ; |
42H-83964-00-00 |
— | ||
|
14
|
14
985-01030-16-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01030-16-00 |
— | ||
| replacement | |||||
|
14
|
14
98507-03016-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-03016-00 |
from US $1.21 |
||
|
15
|
15
92990-03100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-03100-00 |
from US $1.21 |
||
|
16
|
16
437-83936-00-00
Band, Switch Cord
バンド，スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
16
|
16
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
36Y-83980-00-00 Front Stop Switch Assy |
36Y-83980-00-00 |
from US $27.31 |
||
| replacement | |||||
|
17
|
17
J45-82503-01-00 Front Stop Switch Assy |
J45-82503-01-00 |
from US $32.18 |
||
|
18
|
18
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
18
|
18
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
19
|
19
92906-04600-00 Washerワツシヤ，プレート; |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
92907-04600-00 Washer(Jf2)ワツシヤ，プレート; |
92907-04600-00 |
from US $1.07 |
||
|
20
|
20
36Y-82917-00-00 Stop Switch Assy |
36Y-82917-00-00 |
from US $19.84 |
||
|
21
|
21
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
21
|
21
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
22
|
22
92906-04600-00 Washerワツシヤ，プレート; |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
92907-04600-00 Washer(Jf2)ワツシヤ，プレート; |
92907-04600-00 |
from US $1.07 |
||
