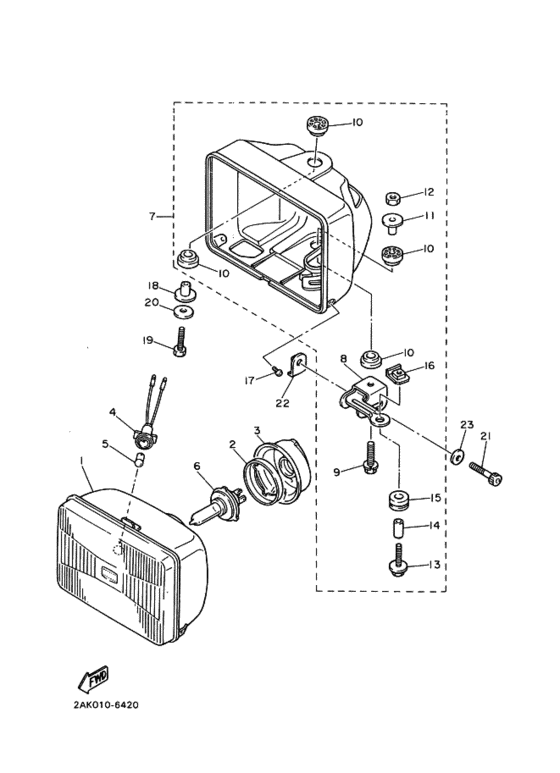

Headlight Diagram Yamaha FZX750
- Year
- 1986
- Colour
- Orion Silver (OS; 00GA)
- Model code
- 2AK0
- Sales region
- Japan (010)
- Engine Capacity
- 750
- Color Variant
- A
- Model
- FZX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2AK-84320-H0-00
Lens Assy
|
2AK-84320-H0-00 |
— | ||
|
2
|
2
2F9-84375-00-00 Setting Plate, Bulbフイツテイングプレート，バルブ; |
2F9-84375-00-00 |
from US $20.25 |
||
|
3
|
3
2F9-84397-01-00 Cover, Socket Ttr250 94 Adrカバー，ソケツト; |
2F9-84397-01-00 |
from US $17.48 |
||
|
4
|
4
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
5
|
5
123-83516-21-00 Bulb (12V3.4W)．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
5
|
5
123-83516-21-XX Bulb (12V-3.4W)．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
6
|
6
2F9-84314-00-00 Bulb (12V 60/55W Halogen)バルブ ; １２Ｖ−６０／５５Ｗ |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
6
|
6
5V2-84314-00-XX
Bulb (12V-60/55W)
バルブ ; １２Ｖ−６０／５５Ｗ |
5V2-84314-00-XX |
— | ||
|
6
|
6
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
バルブ ; １２Ｖ−６０／５５Ｗ |
YMC-00903-00-00 |
— | ||
|
6
|
6
5VK-H4314-00-00 Bulb, Headlightバルブ ; １２Ｖ−６０／５５Ｗ |
5VK-H4314-00-00 |
US $45.92 |
||
|
6
|
6
8V0-84314-10-00 Bulb, Headlightバルブ ; １２Ｖ−６０／５５Ｗ |
8V0-84314-10-00 |
from US $45.92 |
||
|
7
|
7
1UF-84330-00-00 Body Assyボデーアセンブリ; |
1UF-84330-00-00 |
US $243.67 |
||
| replacement | |||||
|
7
|
7
1UF-84330-01-00 Body Assemblyボデーアセンブリ; |
1UF-84330-01-00 |
US $243.67 |
||
|
8
|
8
1UF-84319-00-00 Stay, Headlight 2．ステー，ヘツドライト ２; |
1UF-84319-00-00 |
US $31.18 |
||
|
9
|
9
1UF-84337-00-00
Bolt, Special
．ボルト，スペシヤル; |
1UF-84337-00-00 |
— | ||
|
10
|
10
1UF-84366-00-00 Damper, Headlight 1．ダンパ，ヘツドライト １; |
1UF-84366-00-00 |
US $16.92 |
||
|
11
|
11
1UF-84338-00-00
Collar, Body Ftng
．カラー，ボデーフイツテイング; |
1UF-84338-00-00 |
— | ||
|
12
|
12
95302-08600-00 Nut, Hexagon．ナツト; |
95302-08600-00 |
from US $1.52 |
||
| replacements | |||||
|
12
|
12
997-80086-00-00 Nut, Hex．ナツト; |
997-80086-00-00 |
from US $1.81 |
||
|
12
|
12
953-33086-00-00 Nut．ナツト; |
953-33086-00-00 |
from US $1.39 |
||
|
13
|
13
1UF-84137-00-00 Bolt, Special．ボルト，スペシヤル; |
1UF-84137-00-00 |
US $14.56 |
||
|
14
|
14
1UF-84307-00-00 Collar．カラー; |
1UF-84307-00-00 |
US $4.43 |
||
|
15
|
15
1UF-84345-00-00 Damper, Headlight．ダンパ，ヘツドライト; |
1UF-84345-00-00 |
US $4.77 |
||
|
16
|
16
1UF-84316-00-00 Nut, Body Fitting．ナツト，ボデーフイツテイング; |
1UF-84316-00-00 |
US $14.56 |
||
|
17
|
17
90157-05084-00 Screw, Pan Head |
90157-05084-00 |
from US $2.69 |
||
|
18
|
18
1UF-84338-00-00
Collar, Body Ftng
カラー，ボデーフイツテイング; |
1UF-84338-00-00 |
— | ||
|
19
|
19
98002-08035-00 Bolt |
98002-08035-00 |
from US $2.13 |
||
| replacement | |||||
|
19
|
19
97017-08035-00 Bolt |
97017-08035-00 |
from US $2.04 |
||
|
20
|
20
90201-08795-00 Washer, Plateワツシヤ，プレート; |
90201-08795-00 |
from US $1.98 |
||
| replacement | |||||
|
20
|
20
90201-081R9-00 Washer, Plateワツシヤ，プレート; |
90201-081R9-00 |
from US $2.22 |
||
|
21
|
21
91316-08045-00 Bolt |
91316-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
91317-08045-00 Bolt |
91317-08045-00 |
from US $1.56 |
||
|
22
|
22
1UF-84327-00-00
Washer, Special
|
1UF-84327-00-00 |
— | ||
|
23
|
23
92906-08200-00 Washerワツシヤ，プレーン; |
92906-08200-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
92907-08200-00 Washerワツシヤ，プレーン; |
92907-08200-00 |
from US $1.66 |
||
