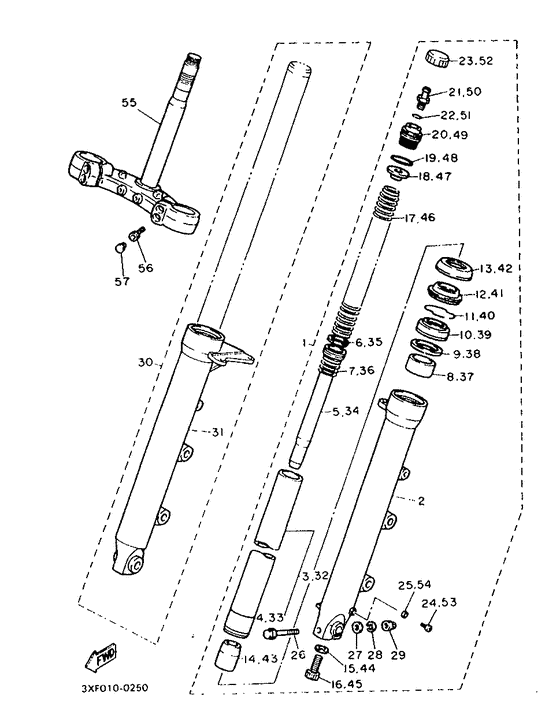

Front fork Diagram Yamaha FZX750
- Year
- 1991
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 4AM1
- Sales region
- France (999)
- Engine Capacity
- 750
- Model
- FZX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1UF-23102-00-00 Front Fork Asy L |
1UF-23102-00-00 |
US $1,180.64 |
||
| replacement | |||||
|
01
|
01
1UF-23102-02-00 Front Fork Assy (L.h) |
1UF-23102-02-00 |
US $925 |
||
|
02
|
02
1UF-23126-00-00
Tube, Outer (Left)
|
1UF-23126-00-00 |
— | ||
| replacements | |||||
|
02
|
02
1UF-23126-02-00
Tube, Outer (Left)
|
1UF-23126-02-00 |
— | ||
|
02
|
02
1UF-23126-01-00
Tube, Outer (L.h)
|
1UF-23126-01-00 |
— | ||
|
03
|
03
1UF-23110-00-00 Inner Tube 1 |
1UF-23110-00-00 |
from US $279.68 |
||
|
04
|
04
1UF-23135-00-00 Metal,slide 2 |
1UF-23135-00-00 |
from US $13.60 |
||
| replacement | |||||
|
04
|
04
3XC-23135-00-00 Metal, Slide |
3XC-23135-00-00 |
from US $13.60 |
||
|
05
|
05
1UF-23171-00-00 Piston, Front Fork |
1UF-23171-00-00 |
US $33.89 |
||
| replacement | |||||
|
05
|
05
1UF-23171-01-00 Piston, Front Fork |
1UF-23171-01-00 |
US $33.89 |
||
|
06
|
06
1UF-23157-00-00
Ring, Piston Frtfrk
|
1UF-23157-00-00 |
— | ||
|
07
|
07
1UF-23151-00-00 Spring, Rebound |
1UF-23151-00-00 |
US $19.13 |
||
|
08
|
08
3XC-23125-00-00 Metal, Side 1 |
3XC-23125-00-00 |
from US $13.88 |
||
|
09
|
09
1UF-23115-00-00 Guide, Cover Upper |
1UF-23115-00-00 |
from US $4.82 |
||
|
10
|
10
93110-38024-00 Oil Seal |
93110-38024-00 |
from US $15.16 |
||
| replacement | |||||
|
10
|
10
5GJ-23145-00-00 Oil Seal |
5GJ-23145-00-00 |
from US $14.88 |
||
|
11
|
11
1UF-23156-00-00 Clip, Oil Seal |
1UF-23156-00-00 |
from US $7.47 |
||
|
12
|
12
3XC-23144-00-00 Seal, Dust |
3XC-23144-00-00 |
from US $13.55 |
||
| replacement | |||||
|
12
|
12
5GJ-23144-00-00 Seal, Dust |
5GJ-23144-00-00 |
from US $16.43 |
||
|
13
|
13
1UF-23148-00-00 Cover, Dust Seal |
1UF-23148-00-00 |
from US $16.16 |
||
|
14
|
14
1GU-23173-00-00
Spindle, Taper
|
1GU-23173-00-00 |
— | ||
|
15
|
15
90430-08155-00 Gasket |
90430-08155-00 |
US $1.70 |
||
| replacements | |||||
|
15
|
15
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
15
|
15
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
16
|
16
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
17
|
17
1UF-23141-00-00
Spring, Front Fork
|
1UF-23141-00-00 |
— | ||
|
18
|
18
1UF-23142-00-00
Seat, Spring Upper
|
1UF-23142-00-00 |
— | ||
|
19
|
19
932-10277-32-00
O-Ring
|
932-10277-32-00 |
— | ||
|
20
|
20
1UF-23111-00-00 Bolt, Cap |
1UF-23111-00-00 |
US $44.77 |
||
|
21
|
21
1UF-23190-00-00 Air Valve |
1UF-23190-00-00 |
US $36.79 |
||
|
22
|
22
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
23
|
23
1UF-2319U-00-00
Cap
|
1UF-2319U-00-00 |
— | ||
|
24
|
24
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
24
|
24
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
24
|
24
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
24
|
24
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
24
|
24
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
25
|
25
5U8-23129-00-00 Gasket, Drain Plug |
5U8-23129-00-00 |
from US $3.97 |
||
|
26
|
26
95023-08060-00 Bolt, Flange (Small Head) |
95023-08060-00 |
from US $4.25 |
||
| replacement | |||||
|
26
|
26
950-24080-60-00 Bolt, Flange (Small Head) |
950-24080-60-00 |
from US $4.25 |
||
|
27
|
27
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
29
|
29
95303-08800-00 Nut (Crown) (93501-08800-00) |
95303-08800-00 |
from US $3.12 |
||
|
30
|
30
1UF-23103-00-00 Front Fork Asy R |
1UF-23103-00-00 |
US $1,180.64 |
||
| replacements | |||||
|
30
|
30
1UF-23103-02-00
Front Fork Assy (R.h)
|
1UF-23103-02-00 |
— | ||
|
30
|
30
1UF-23103-01-00 Front Fork Assy (R.h) |
1UF-23103-01-00 |
US $854.12 |
||
|
31
|
31
1UF-23136-00-00 Tube, Outer 2 |
1UF-23136-00-00 |
US $646.65 |
||
| replacements | |||||
|
31
|
31
1UF-23136-02-00
Tube, Outer (Right)
|
1UF-23136-02-00 |
— | ||
|
31
|
31
1UF-23136-01-00 Tube, Outer 2 |
1UF-23136-01-00 |
US $646.65 |
||
|
32
|
32
1UF-23110-00-00 Inner Tube 1 |
1UF-23110-00-00 |
from US $279.68 |
||
|
33
|
33
1UF-23135-00-00 Metal,slide 2 |
1UF-23135-00-00 |
from US $13.60 |
||
| replacement | |||||
|
33
|
33
3XC-23135-00-00 Metal, Slide |
3XC-23135-00-00 |
from US $13.60 |
||
|
34
|
34
1UF-23171-00-00 Piston, Front Fork |
1UF-23171-00-00 |
US $33.89 |
||
| replacement | |||||
|
34
|
34
1UF-23171-01-00 Piston, Front Fork |
1UF-23171-01-00 |
US $33.89 |
||
|
35
|
35
1UF-23157-00-00
Ring, Piston Frtfrk
|
1UF-23157-00-00 |
— | ||
|
36
|
36
1UF-23151-00-00 Spring, Rebound |
1UF-23151-00-00 |
US $19.13 |
||
|
37
|
37
3XC-23125-00-00 Metal, Side 1 |
3XC-23125-00-00 |
from US $13.88 |
||
|
38
|
38
1UF-23115-00-00 Guide, Cover Upper |
1UF-23115-00-00 |
from US $4.82 |
||
|
39
|
39
93110-38024-00 Oil Seal |
93110-38024-00 |
from US $15.16 |
||
| replacement | |||||
|
39
|
39
5GJ-23145-00-00 Oil Seal |
5GJ-23145-00-00 |
from US $14.88 |
||
|
40
|
40
1UF-23156-00-00 Clip, Oil Seal |
1UF-23156-00-00 |
from US $7.47 |
||
|
41
|
41
3XC-23144-00-00 Seal, Dust |
3XC-23144-00-00 |
from US $13.55 |
||
| replacement | |||||
|
41
|
41
5GJ-23144-00-00 Seal, Dust |
5GJ-23144-00-00 |
from US $16.43 |
||
|
42
|
42
1UF-23148-00-00 Cover, Dust Seal |
1UF-23148-00-00 |
from US $16.16 |
||
|
43
|
43
1GU-23173-00-00
Spindle, Taper
|
1GU-23173-00-00 |
— | ||
|
44
|
44
90430-08155-00 Gasket |
90430-08155-00 |
US $1.70 |
||
| replacements | |||||
|
44
|
44
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
44
|
44
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
45
|
45
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
45
|
45
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
46
|
46
1UF-23141-00-00
Spring, Front Fork
|
1UF-23141-00-00 |
— | ||
|
47
|
47
1UF-23142-00-00
Seat, Spring Upper
|
1UF-23142-00-00 |
— | ||
|
48
|
48
932-10277-32-00
O-Ring
|
932-10277-32-00 |
— | ||
|
49
|
49
1UF-23111-00-00 Bolt, Cap |
1UF-23111-00-00 |
US $44.77 |
||
|
50
|
50
1UF-23190-00-00 Air Valve |
1UF-23190-00-00 |
US $36.79 |
||
|
51
|
51
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
52
|
52
1UF-2319U-00-00
Cap
|
1UF-2319U-00-00 |
— | ||
|
53
|
53
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
53
|
53
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
53
|
53
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
53
|
53
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
53
|
53
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
54
|
54
5U8-23129-00-00 Gasket, Drain Plug |
5U8-23129-00-00 |
from US $3.97 |
||
|
55
|
55
2JE-23340-00-00
Under Bracket
|
2JE-23340-00-00 |
— | ||
|
56
|
56
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
56
|
56
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
57
|
57
903-38081-63-00 Plug (Chrome) |
903-38081-63-00 |
from US $2.36 |
||
