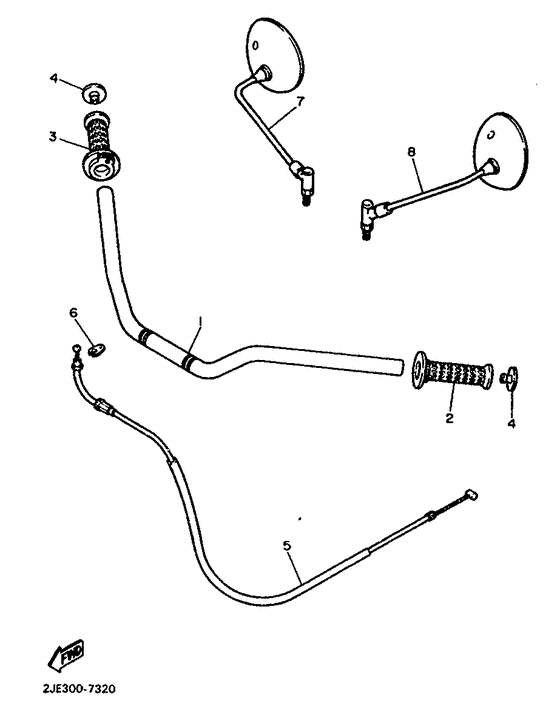

Steering handle & cable Diagram Yamaha FZX750
- Year
- 1991
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 4AM1
- Sales region
- France (999)
- Engine Capacity
- 750
- Model
- FZX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1UF-W2611-00-00
Handlebar
|
1UF-W2611-00-00 |
— | ||
|
02
|
02
42X-26241-00-00 Grip Lh |
42X-26241-00-00 |
from US $50.70 |
||
|
03
|
03
42X-26240-00-00 Grip Assembly |
42X-26240-00-00 |
US $75.85 |
||
|
04
|
04
26H-2628J-00-00 Cap, Grip |
26H-2628J-00-00 |
from US $10.31 |
||
|
05
|
05
1UF-26311-00-00
Cable,throttle 1
|
1UF-26311-00-00 |
— | ||
| replacement | |||||
|
05
|
05
1UF-26311-10-00 Cable, Throttle 1 |
1UF-26311-10-00 |
from US $35.80 |
||
|
06
|
06
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.47 |
||
|
07
|
07
1J7-26290-G0-00 Rear View Mirror Assy (Right) |
1J7-26290-G0-00 |
US $63.97 |
||
| replacements | |||||
|
07
|
07
1J7-26290-J0-00 Rear View Mirror Assy (Right) |
1J7-26290-J0-00 |
US $37.29 |
||
|
07
|
07
1J7-26290-G1-00 Back Mirror Assy (Right) |
1J7-26290-G1-00 |
US $37.29 |
||
|
08
|
08
1J7-26290-F0-00 Rear View Mirror Assy (Left) |
1J7-26290-F0-00 |
US $63.97 |
||
| replacements | |||||
|
08
|
08
1J7-26290-H0-00 Rear View Mirror Assy (Left) |
1J7-26290-H0-00 |
US $37.29 |
||
|
08
|
08
1J7-26290-F1-00 Back Mirror Assy(Left) |
1J7-26290-F1-00 |
US $37.29 |
||
