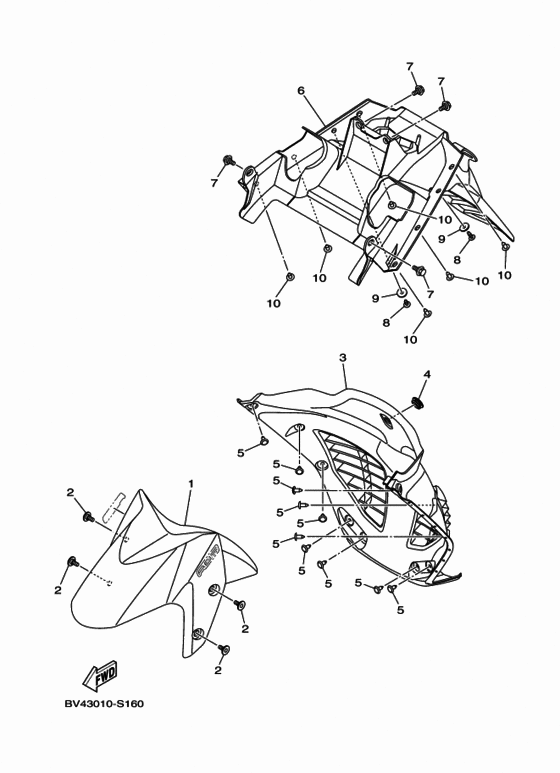

Fender Diagram Yamaha GPD150 NMAX
- Year
- 2017
- Colour
- Mat Deep Red Metallic 3
- Model code
- BV43
- Sales region
- Japan (010)
- Engine Capacity
- 150
- Color Variant
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DP-F1511-00-P5 Fender, FrontUR MDRM3, WOG |
2DP-F1511-00-P5 |
US $42.83 |
||
|
2
|
2
90109-068A4-00 Bolt |
90109-068A4-00 |
from US $1.98 |
||
|
3
|
3
2DP-F1552-00-00 Fender, Inner |
2DP-F1552-00-00 |
US $25.36 |
||
|
4
|
4
90480-01559-00 Grommet |
90480-01559-00 |
from US $4.72 |
||
|
5
|
5
90269-06816-00 Rivet |
90269-06816-00 |
from US $1.39 |
||
| replacement | |||||
|
5
|
5
902-69060-81-00 Rivet |
902-69060-81-00 |
from US $2.02 |
||
|
6
|
6
2DP-F1611-00-00 Fender, Rear |
2DP-F1611-00-00 |
US $19.27 |
||
|
7
|
7
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
8
|
8
977-07500-20-00
Screw, Tapping
|
977-07500-20-00 |
— | ||
| replacement | |||||
|
8
|
8
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
9
|
9
902-01050-36-00
Washer, Plate
|
902-01050-36-00 |
— | ||
| replacement | |||||
|
9
|
9
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
10
|
10
90269-06816-00 Rivet |
90269-06816-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
902-69060-81-00 Rivet |
902-69060-81-00 |
from US $2.02 |
||
