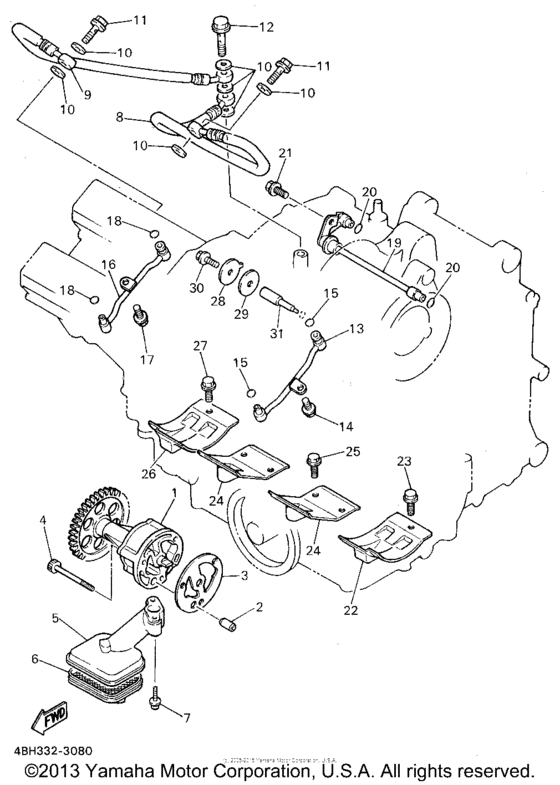

Oil pump Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1AE-13300-00-00
Oil Pump Assembly
|
1AE-13300-00-00 |
— | ||
|
2
|
2
995-10080-12-00
Pin, Dowel
|
995-10080-12-00 |
— | ||
| replacement | |||||
|
2
|
2
91808-12024-00 Pin, Dowel |
91808-12024-00 |
from US $1.84 |
||
|
3
|
3
2GH-13329-00-00 Gasket, Pump Cover |
2GH-13329-00-00 |
from US $3.29 |
||
|
4
|
4
913-16060-50-00
Bolt
|
913-16060-50-00 |
— | ||
| replacement | |||||
|
4
|
4
91317-06050-00 Bolt |
91317-06050-00 |
from US $1.18 |
||
|
5
|
5
4BH-13412-00-00
Housing, Strainer
|
4BH-13412-00-00 |
— | ||
|
6
|
6
4BH-13411-00-00
Strainer, Oil
|
4BH-13411-00-00 |
— | ||
|
7
|
7
950-26060-30-00
Bolt, Flange
|
950-26060-30-00 |
— | ||
| replacements | |||||
|
7
|
7
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
7
|
7
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
8
|
8
4BH-1316F-00-00
Hose, Oil 1
|
4BH-1316F-00-00 |
— | ||
|
9
|
9
4BH-1316G-00-00
Hose, Oil 2
|
4BH-1316G-00-00 |
— | ||
| replacement | |||||
|
9
|
9
4BH-1316G-01-00
Hose, Oil 2
|
4BH-1316G-01-00 |
— | ||
|
10
|
10
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
11
|
11
904-01100-96-00
Bolt, Union
|
904-01100-96-00 |
— | ||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
90401-10044-00 Bolt, Union |
90401-10044-00 |
from US $9.49 |
||
| replacement | |||||
|
12
|
12
90401-10038-00 Bolt, Union |
90401-10038-00 |
from US $9.49 |
||
|
13
|
13
3GM-13181-00-00 Pipe, Delivery 3 |
3GM-13181-00-00 |
from US $39.44 |
||
|
14
|
14
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
15
|
15
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
16
|
16
3GM-13191-00-00 Pipe, Delivery 4 |
3GM-13191-00-00 |
US $61.61 |
||
|
17
|
17
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
18
|
18
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
19
|
19
2GH-1316E-00-00 Pipe, Delivery 5 |
2GH-1316E-00-00 |
US $88.13 |
||
| replacement | |||||
|
19
|
19
2GH-1316E-01-00 Pipe, Delivery 5 |
2GH-1316E-01-00 |
US $88.13 |
||
|
20
|
20
932-10071-35-00 O-Ring (Small) |
932-10071-35-00 |
from US $2.22 |
||
|
21
|
21
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
22
|
22
2GH-15123-00-00 Plate, Baffle 1 |
2GH-15123-00-00 |
US $17.42 |
||
|
23
|
23
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
24
|
24
1AE-15124-00-00 Plate, Buffle 2 |
1AE-15124-00-00 |
US $21.65 |
||
|
25
|
25
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
26
|
26
2GH-15133-00-00 Plate, Buffle 3 |
2GH-15133-00-00 |
US $18.27 |
||
|
27
|
27
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
27
|
27
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
28
|
28
90201-061M7-00 Washer, Plate |
90201-061M7-00 |
US $2.18 |
||
|
29
|
29
4BH-13475-00-00 Gasket |
4BH-13475-00-00 |
US $1.66 |
||
| replacement | |||||
|
29
|
29
4FM-13475-00-00 Gasket |
4FM-13475-00-00 |
US $0.72 |
||
|
30
|
30
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
31
|
31
3GM-13454-00-00 Nozzle |
3GM-13454-00-00 |
US $41.17 |
||
