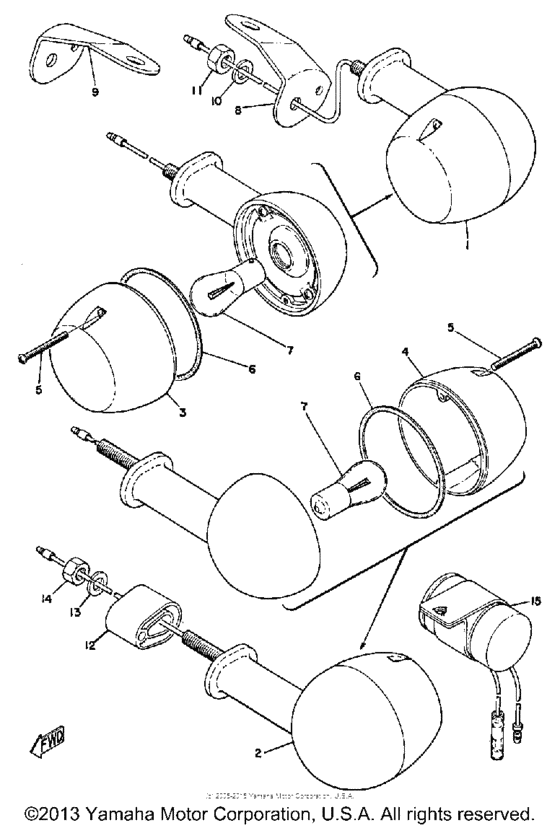

Flasher lamp Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
137-83310-72-93
Frt Flshr Lite Assembly
|
137-83310-72-93 |
— | ||
|
2
|
2
287-83330-75-93
R Flshr Lite Assembly
|
287-83330-75-93 |
— | ||
|
3
|
3
183-83312-70-00 Lens, Flasher |
183-83312-70-00 |
from US $20.57 |
||
|
4
|
4
211-83332-75-00
Lens, Flasher
|
211-83332-75-00 |
— | ||
|
5
|
5
183-83333-71-00 Screw, Lens Fitting |
183-83333-71-00 |
from US $5.95 |
||
|
6
|
6
183-83313-70-00 Gasket, Flshr Lens |
183-83313-70-00 |
from US $6.09 |
||
|
7
|
7
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
8
|
8
287-83318-00-00
Stay, Flasher 1
|
287-83318-00-00 |
— | ||
|
9
|
9
287-83328-00-00
Stay, Flasher 2
|
287-83328-00-00 |
— | ||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
12
|
12
249-83316-95-93
Collar,flasher 1
|
249-83316-95-93 |
— | ||
| replacement | |||||
|
12
|
12
249-83316-95-00
PISTON RINGSET STD
|
249-83316-95-00 |
— | ||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
14
|
14
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
14
|
14
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
15
|
15
278-83350-71-00
Flasher Relay Assembly
|
278-83350-71-00 |
— | ||
