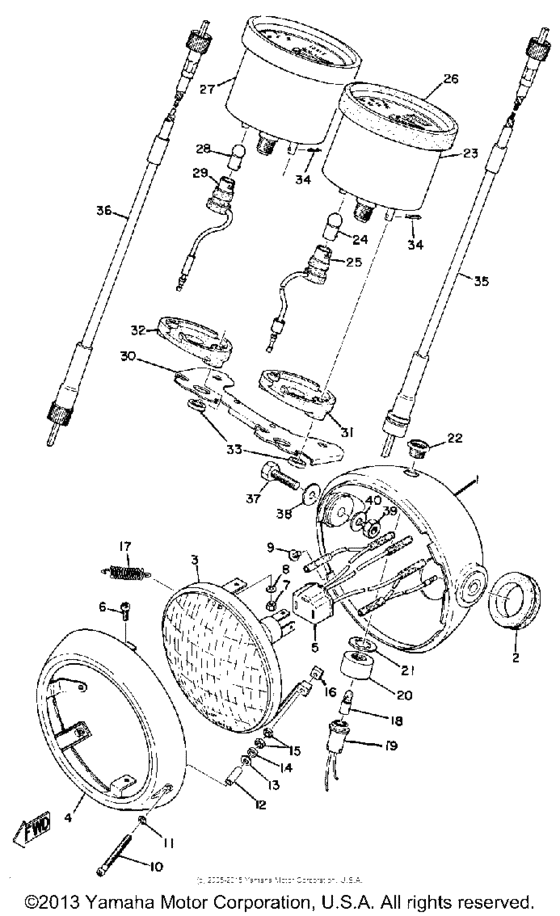

Head lamp, speedometer & tachometer Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
261-84330-60-65
Body Assembly
|
261-84330-60-65 |
— | ||
|
1
|
1
261-84330-60-26
Body Assembly
|
261-84330-60-26 |
— | ||
|
2
|
2
214-84153-60-00 Grommet, Wire Harness |
214-84153-60-00 |
from US $2.99 |
||
|
2
|
2
256-84301-61-00
Pilot Light Assembly 1
|
256-84301-61-00 |
— | ||
|
3
|
3
261-84320-61-00
Lens Assembly
|
261-84320-61-00 |
— | ||
|
4
|
4
261-84315-61-00
Rim, Headlight
|
261-84315-61-00 |
— | ||
|
5
|
5
261-84312-61-00
Socket, Cord
|
261-84312-61-00 |
— | ||
|
6
|
6
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
7
|
7
953-01047-00-00
Nut
95302-04700-00 ISO |
953-01047-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95380-04700-00 Nut(6L4)95302-04700-00 ISO |
95380-04700-00 |
from US $1.56 |
||
|
8
|
8
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
9
|
9
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
10
|
10
198-84331-60-00
Screw, Rim Adjusting
|
198-84331-60-00 |
— | ||
|
11
|
11
233-84127-60-00 Washer, Special |
233-84127-60-00 |
from US $4.84 |
||
|
12
|
12
233-84133-60-00
Collar, Screw
|
233-84133-60-00 |
— | ||
|
13
|
13
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
14
|
14
132-84328-60-00
Spacer
|
132-84328-60-00 |
— | ||
|
15
|
15
953-01047-00-00
Nut
95302-04700-00 ISO |
953-01047-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95380-04700-00 Nut(6L4)95302-04700-00 ISO |
95380-04700-00 |
from US $1.56 |
||
|
16
|
16
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
17
|
17
132-84335-60-00
Spring
|
132-84335-60-00 |
— | ||
|
18
|
18
256-84347-00-00
Bulb
|
256-84347-00-00 |
— | ||
|
19
|
19
256-84301-61-00
Pilot Light Assembly 1
|
256-84301-61-00 |
— | ||
|
20
|
20
214-84101-61-00
Pilot Light Assembly
|
214-84101-61-00 |
— | ||
|
21
|
21
929-01123-00-00
Washer, In.tooth
|
929-01123-00-00 |
— | ||
|
22
|
22
214-84101-61-00
Pilot Light Assembly
|
214-84101-61-00 |
— | ||
|
23
|
23
287-83510-40-00
Speedometer Assembly
|
287-83510-40-00 |
— | ||
|
24
|
24
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
24
|
24
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
25
|
25
287-83520-40-00
Socket Cord Assembly
|
287-83520-40-00 |
— | ||
|
26
|
26
336-83513-00-00
Damper
|
336-83513-00-00 |
— | ||
|
27
|
27
287-83540-00-00
Tachometer Assembly
|
287-83540-00-00 |
— | ||
|
28
|
28
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
28
|
28
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
29
|
29
287-83536-00-00
Socket, Meter
|
287-83536-00-00 |
— | ||
|
30
|
30
252-83519-00-00
Bracket, Meter
|
252-83519-00-00 |
— | ||
|
31
|
31
214-83523-00-00
Damper
|
214-83523-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
237-83523-00-00 Damper |
237-83523-00-00 |
from US $11.39 |
||
|
33
|
33
90209-05029-00 Washer, Spec''l Shap (214-83524Washer (214-83524-00) 214-83524 |
90209-05029-00 |
from US $4.25 |
||
|
34
|
34
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
35
|
35
252-83550-01-00 Speedometer Cable AsAS |
252-83550-01-00 |
from US $28.42 |
||
| replacement | |||||
|
35
|
35
1JN-83550-02-00 Speedometer Cable AssyAS |
1JN-83550-02-00 |
from US $39.79 |
||
|
36
|
36
237-83560-01-00 Tachometer Cable |
237-83560-01-00 |
US $49.61 |
||
| replacement | |||||
|
36
|
36
447-83560-01-00 Tachometer Cable |
447-83560-01-00 |
US $49.61 |
||
|
37
|
37
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
38
|
38
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
39
|
39
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
39
|
39
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
40
|
40
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
