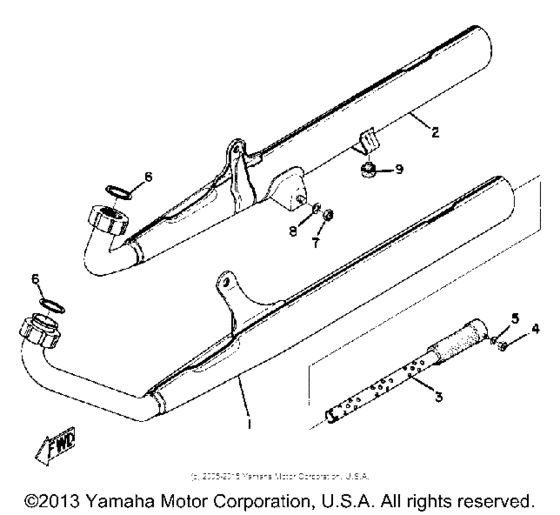

Muffler Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
241-14610-00-00
Exhaust Pipe Assembly L
|
241-14610-00-00 |
— | ||
|
2
|
2
241-14620-00-00
Exhaust Pipe Assembly R
|
241-14620-00-00 |
— | ||
|
3
|
3
201-14753-01-00
Silencer, Exhaust
|
201-14753-01-00 |
— | ||
|
4
|
4
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
5
|
5
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
9
|
9
1M3-27114-00-00 Stopper, Main Stand |
1M3-27114-00-00 |
from US $10.89 |
||
