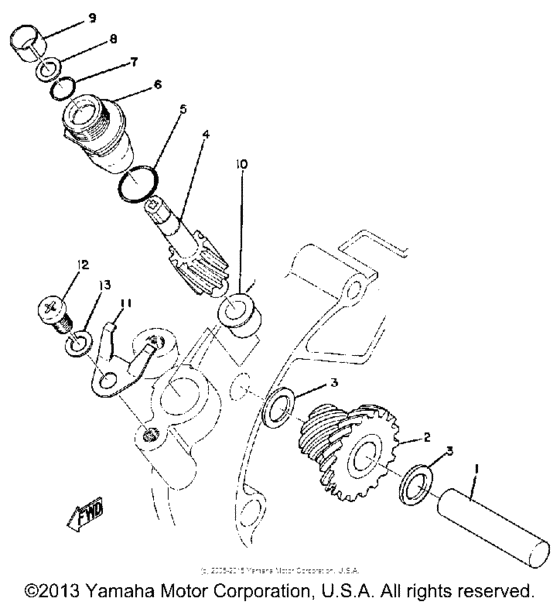

Tachometer gear Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
237-17861-00-00
Axle, Drive Gear
|
237-17861-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
248-17831-02-00
Gear, Drive
|
248-17831-02-00 |
— | ||
|
3
|
3
248-17837-00-00
Shim
|
248-17837-00-00 |
— | ||
|
4
|
4
248-17841-00-00
Gear, Driven
|
248-17841-00-00 |
— | ||
|
5
|
5
93210-13016-00 O-Ring |
93210-13016-00 |
from US $2.08 |
||
|
6
|
6
353-17810-00-00
Housing Assembly, Tach (214-178
214-178 |
353-17810-00-00 |
— | ||
|
7
|
7
93210-07100-00 O-Ring |
93210-07100-00 |
from US $2.36 |
||
|
8
|
8
214-17847-00-00
Shim (7.5-10.8-0.4)
7.5-10.8-0.4 |
214-17847-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
7.5-10.8-0.4 |
999-99999-99-00 |
— | ||
|
9
|
9
903-83100-05-00
Bush, Formed (214-17815-00)
214-17815-00 |
903-83100-05-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
214-17815-00 |
999-99999-99-00 |
— | ||
|
10
|
10
90381-08002-00 Bush, Solid |
90381-08002-00 |
from US $3.04 |
||
|
11
|
11
5U7-17812-00-00
Stopper
|
5U7-17812-00-00 |
— | ||
|
12
|
12
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
