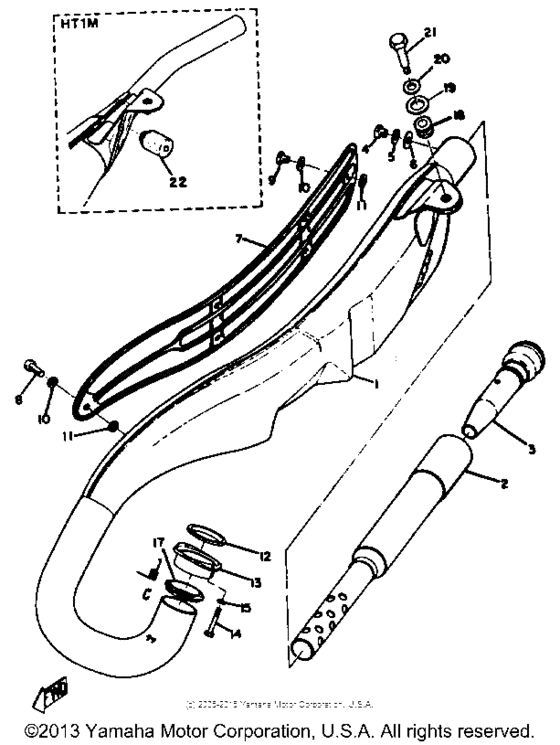

Muffler Diagram Yamaha HT1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
277-14610-30-00
Exhaust Pipe Assembly L
|
277-14610-30-00 |
— | ||
|
1
|
1
276-14610-70-00
Exhaust Pipe Assembly L
|
276-14610-70-00 |
— | ||
|
2
|
2
214-14753-01-00
Silencer, Exhaust
|
214-14753-01-00 |
— | ||
|
3
|
3
261-14752-30-00
Pipe, Outlet
|
261-14752-30-00 |
— | ||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010- |
985-80060-10-00 |
from US $1.42 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
7
|
7
276-14718-10-00
Protector, Muff 1
|
276-14718-10-00 |
— | ||
|
8
|
8
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
9
|
9
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
10
|
10
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
11
|
11
90202-05005-00 Washer, Plate |
90202-05005-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
902-02051-88-00 Washer, Plate |
902-02051-88-00 |
from US $1.70 |
||
|
12
|
12
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
12
|
12
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
13
|
13
2K5-14612-00-00
Nut, Ring
|
2K5-14612-00-00 |
— | ||
|
14
|
14
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
90506-12029-00 Spring, Tension |
90506-12029-00 |
from US $5.38 |
||
|
17
|
17
248-14623-00-00
Gasket
|
248-14623-00-00 |
— | ||
| replacement | |||||
|
17
|
17
248-14623-10-00 Gasket |
248-14623-10-00 |
from US $7.37 |
||
|
18
|
18
168-21638-00-00 Damper 1 |
168-21638-00-00 |
from US $8.08 |
||
|
19
|
19
90201-18262-00 Washer, Plate |
90201-18262-00 |
from US $2.08 |
||
|
20
|
20
90201-12190-00 Washer, Plate 1222224300 |
90201-12190-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.81 |
||
|
21
|
21
901-09083-91-00
Bolt (276-14719-00)
276-14719-00 |
901-09083-91-00 |
— | ||
|
22
|
22
276-14768-70-00
Stopper
|
276-14768-70-00 |
— | ||
