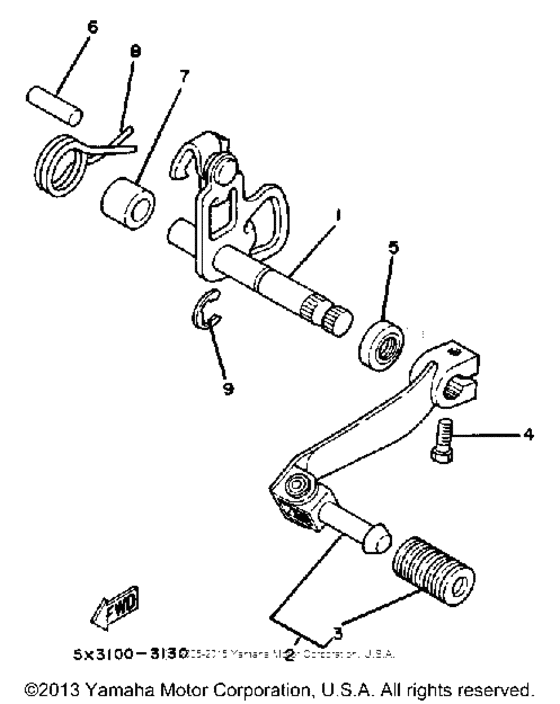

Shift shaft - pedal Diagram Yamaha IT
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24X-18101-01-00
Shift Shaft Assembly. 1
|
24X-18101-01-00 |
— | ||
|
2
|
2
5X4-18110-01-00
Shift Pedal Assembly (509-18111
509-18111 |
5X4-18110-01-00 |
— | ||
|
3
|
3
1W6-18113-00-00 Cover, Shift Pedal |
1W6-18113-00-00 |
from US $7.21 |
||
|
4
|
4
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
4
|
4
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
5
|
5
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
5
|
5
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $5.40 |
||
|
6
|
6
93608-25150-00
Pin, Dowel
|
93608-25150-00 |
— | ||
|
7
|
7
90560-11189-00
Spacer
|
90560-11189-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90508-29361-00
Spring, Torsion
|
90508-29361-00 |
— | ||
|
9
|
9
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
