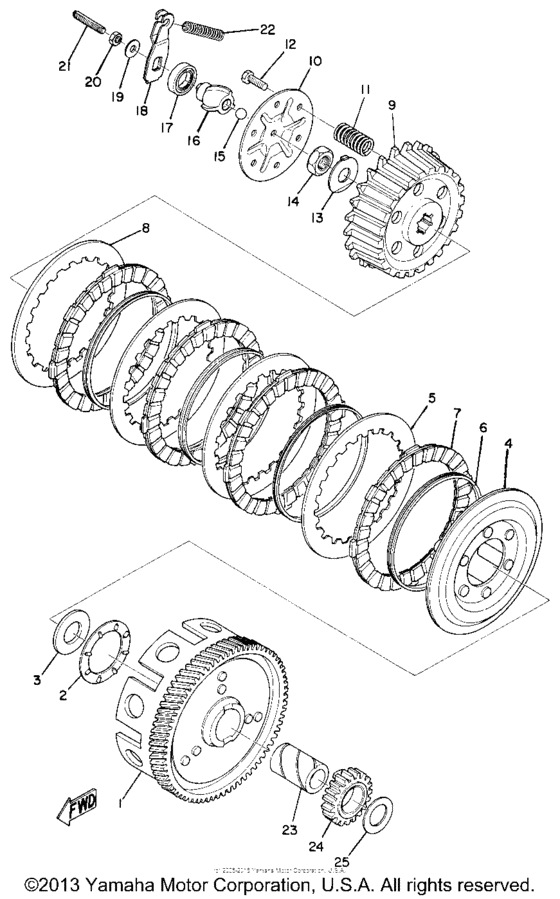

Clutch Diagram Yamaha L5
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 500
- Model
- L5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
164-16105-02-00
Pri Drvn Gear
|
164-16105-02-00 |
— | ||
|
1
|
1
357-16150-01-00
Pri Drvn Gear
|
357-16150-01-00 |
— | ||
|
1
|
1
164-16801-02-00
New Genuine Part
IN PRICE BOOK |
164-16801-02-00 |
— | ||
|
2
|
2
93341-22302-00
Bearing, Flat #41
|
93341-22302-00 |
— | ||
|
3
|
3
131-16154-00-00 Plate, Thrust 1 |
131-16154-00-00 |
from US $10.06 |
||
|
4
|
4
131-16352-01-00 Plate, Pressure 2PN258 |
131-16352-01-00 |
US $36.06 |
||
|
5
|
5
131-16324-00-00 Plate, Clutch 1 |
131-16324-00-00 |
from US $15.41 |
||
|
6
|
6
131-16324-00-00 Plate, Clutch 1 |
131-16324-00-00 |
from US $15.41 |
||
|
7
|
7
131-16321-00-00
Plate, Friction
|
131-16321-00-00 |
— | ||
| replacement | |||||
|
7
|
7
4EU-16321-00-00 Plate, Friction |
4EU-16321-00-00 |
from US $23.52 |
||
|
8
|
8
131-16326-00-00
Plate, Clutch 3
|
131-16326-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
164-16371-00-00
New Genuine Part
IN PRICE BOOK |
164-16371-00-00 |
— | ||
|
10
|
10
122-16351-90-00
Plate, Pressure 1
|
122-16351-90-00 |
— | ||
|
11
|
11
90501-20126-00 Spring, Compression |
90501-20126-00 |
from US $3.40 |
||
|
12
|
12
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
13
|
13
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
13
|
13
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
14
|
14
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.31 |
||
|
15
|
15
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
16
|
16
164-16341-01-00
Screw, Push
|
164-16341-01-00 |
— | ||
|
17
|
17
931-04150-09-00 Oil Seal, So-Type |
931-04150-09-00 |
from US $4.56 |
||
|
18
|
18
164-16342-01-00 Lever, Push |
164-16342-01-00 |
US $10.43 |
||
|
19
|
19
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
20
|
20
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
20
|
20
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
21
|
21
90113-06012-00 Bolt, Set |
90113-06012-00 |
US $2.69 |
||
|
22
|
22
90501-08040-00 Spring, Compression |
90501-08040-00 |
US $2.98 |
||
|
23
|
23
90560-17146-00 Spacer |
90560-17146-00 |
from US $20.26 |
||
|
24
|
24
254-15631-00-00
Gear, Kick Pinion
|
254-15631-00-00 |
— | ||
|
25
|
25
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
