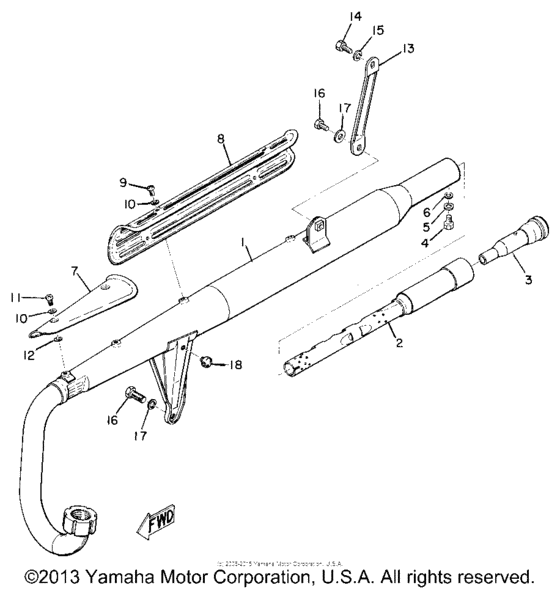

Muffler Diagram Yamaha L5
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 500
- Model
- L5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
234-14610-30-00
Exhaust Pipe Assembly L
|
234-14610-30-00 |
— | ||
|
2
|
2
178-14753-00-00
Silencer, Exhaust
|
178-14753-00-00 |
— | ||
|
3
|
3
234-14752-30-00
Pipe, Outlet
|
234-14752-30-00 |
— | ||
|
4
|
4
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
4
|
4
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
7
|
7
220-14718-10-00
Protector, Muff 1
|
220-14718-10-00 |
— | ||
|
8
|
8
220-14728-10-00
Protecter, Muff 2
|
220-14728-10-00 |
— | ||
|
9
|
9
98903-06008-00 Screw, Bind (2H9) |
98903-06008-00 |
US $1.42 |
||
| replacement | |||||
|
9
|
9
98980-06008-00 Screw, Bind |
98980-06008-00 |
from US $1.42 |
||
|
10
|
10
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
11
|
11
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
11
|
11
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
11
|
11
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
12
|
12
90202-05005-00 Washer, Plate |
90202-05005-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
902-02051-88-00 Washer, Plate |
902-02051-88-00 |
from US $1.70 |
||
|
13
|
13
220-14771-10-00
Stay, Muffler 1
|
220-14771-10-00 |
— | ||
|
14
|
14
901-01100-54-00
Bolt
|
901-01100-54-00 |
— | ||
|
15
|
15
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
16
|
16
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
16
|
16
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
141-21717-00-00 Damper |
141-21717-00-00 |
from US $3.26 |
||
