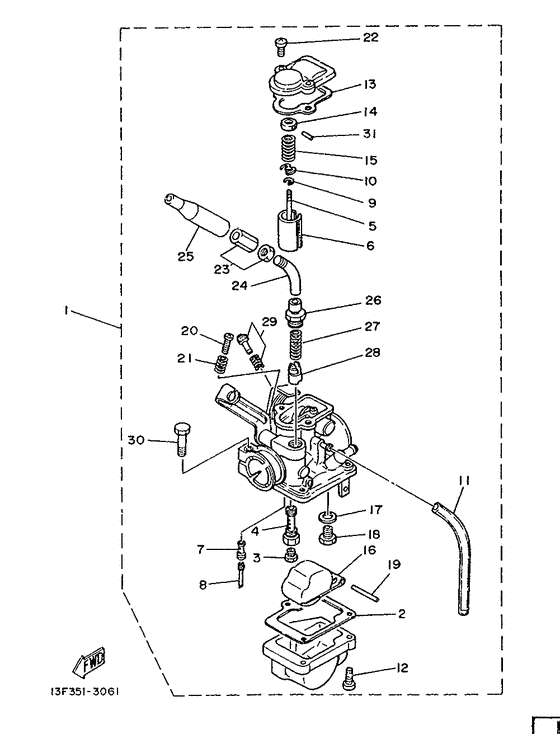

Carburetor Diagram Yamaha LB50
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3AR
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
550-14101-10-00
Carburetor Assy 1
|
550-14101-10-00 |
— | ||
|
02
|
02
439-14184-00-00 Gasket, Float Chmbr |
439-14184-00-00 |
from US $23.94 |
||
|
03
|
03
127-14143-20-00 Jet, Main #100Ur |
127-14143-20-00 |
from US $9.99 |
||
|
03
|
03
127-14143-21-00
Jet, Main #105
Ur std |
127-14143-21-00 |
— | ||
|
03
|
03
127-14143-22-00 Jet, Main #110Ur |
127-14143-22-00 |
from US $10.84 |
||
|
04
|
04
439-14141-14-00
Nozzle, Main
|
439-14141-14-00 |
— | ||
|
05
|
05
127-14116-09-00 Needle |
127-14116-09-00 |
from US $16.45 |
||
|
06
|
06
439-14112-15-00
Valve, Throttle 1
|
439-14112-15-00 |
— | ||
|
07
|
07
193-14148-00-00
Pipe
|
193-14148-00-00 |
— | ||
|
08
|
08
1M3-14148-00-00
Pipe
|
1M3-14148-00-00 |
— | ||
|
09
|
09
127-14137-00-00 Clip |
127-14137-00-00 |
from US $7.70 |
||
|
10
|
10
439-14136-01-00
Seat, Spring
|
439-14136-01-00 |
— | ||
|
11
|
11
1M4-14197-00-00
Pipe
|
1M4-14197-00-00 |
— | ||
| replacement | |||||
|
11
|
11
1UY-14197-00-00 Pipe |
1UY-14197-00-00 |
US $12.73 |
||
|
12
|
12
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
12
|
12
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
13
|
13
439-14198-01-00 Gasket |
439-14198-01-00 |
from US $10.91 |
||
|
14
|
14
1M3-14918-00-00
Ring
|
1M3-14918-00-00 |
— | ||
|
15
|
15
439-14931-00-00
Spring, Throttle Lever
|
439-14931-00-00 |
— | ||
|
16
|
16
439-14185-00-00
Float
|
439-14185-00-00 |
— | ||
|
17
|
17
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
18
|
18
353-14190-12-00 Needle Valve Assy |
353-14190-12-00 |
from US $42.14 |
||
|
19
|
19
439-14186-00-00 Pin, Float |
439-14186-00-00 |
from US $9.59 |
||
|
20
|
20
98302-03012-00
Screw, Cylinder.head
|
98302-03012-00 |
— | ||
| replacement | |||||
|
20
|
20
98301-03012-00
Screw, Cylinder Head
|
98301-03012-00 |
— | ||
|
21
|
21
620-14133-00-00 Spring, Throttle Stop (#37.5) |
620-14133-00-00 |
US $2.23 |
||
|
22
|
22
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
23
|
23
17L-14106-00-00 Cable Adjust Screw Set |
17L-14106-00-00 |
from US $3.72 |
||
|
24
|
24
439-14155-00-00
Guide, Cable
|
439-14155-00-00 |
— | ||
|
25
|
25
439-14169-00-00 Cap |
439-14169-00-00 |
US $36.70 |
||
|
26
|
26
439-14174-01-00
Cap, Plunger
|
439-14174-01-00 |
— | ||
|
27
|
27
127-14135-00-00 Coil, Spring |
127-14135-00-00 |
from US $4.58 |
||
|
28
|
28
127-14171-00-00 Plunger, Starter |
127-14171-00-00 |
from US $23.80 |
||
| replacements | |||||
|
28
|
28
3XV-14171-00-00 Plunger, Starter |
3XV-14171-00-00 |
from US $18.28 |
||
|
28
|
28
58E-14171-00-00 Plunger, Starter |
58E-14171-00-00 |
from US $26.21 |
||
|
29
|
29
127-W1412-00-00 Screw, Air Adjusting.set |
127-W1412-00-00 |
from US $17.33 |
||
|
31
|
31
1M3-14594-00-00
Nut
|
1M3-14594-00-00 |
— | ||
