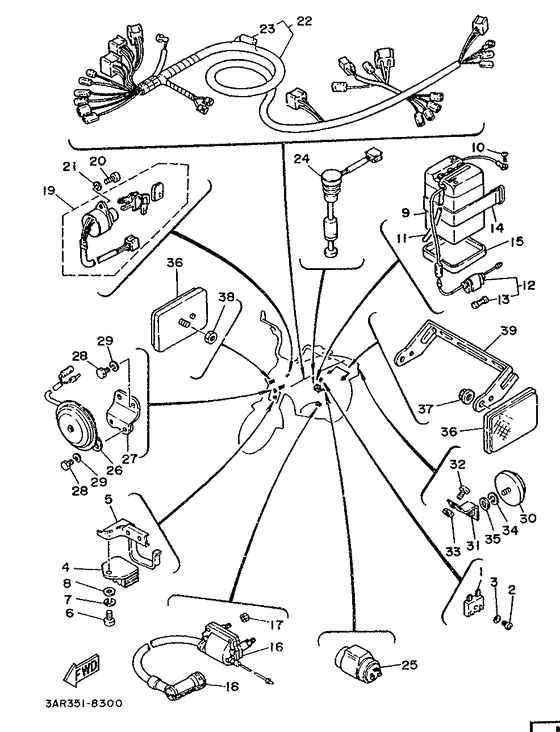

Electrical 1 Diagram Yamaha LB50
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3AR
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
353-81970-63-00 Rectifier AssemblyStanley |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
01
|
01
353-81970-M0-00 Rectifier AssyStanley |
353-81970-M0-00 |
from US $40.62 |
||
|
01
|
01
353-81970-M1-00 Rectifier AssyStanley |
353-81970-M1-00 |
US $17.99 |
||
|
02
|
02
98501-05020-00 Screw, Pan Head |
98501-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
02
|
02
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
03
|
03
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
03
|
03
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
03
|
03
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
04
|
04
4F4-81910-60-00 Voltage Reg AssemblyStanley |
4F4-81910-60-00 |
from US $133.05 |
||
|
05
|
05
2U7-81915-00-00
Plate, Reg Fitting
|
2U7-81915-00-00 |
— | ||
|
06
|
06
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
06
|
06
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
07
|
07
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
08
|
08
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
08
|
08
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
08
|
08
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
09
|
09
120-82110-29-00 Battery Assy (6N4-2A-2)(6n4-2a-2) |
120-82110-29-00 |
US $53.05 |
||
| replacements | |||||
|
09
|
09
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
(6n4-2a-2) |
6N4-2A200-00-00 |
— | ||
|
09
|
09
120-82110-15-00
Battery (6N4-2A-2)
(6n4-2a-2) |
120-82110-15-00 |
— | ||
|
10
|
10
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
11
|
11
90445-08247-00 Hose (L500) |
90445-08247-00 |
US $10.91 |
||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
353-82150-00-00
Fuse Holder Assy
|
353-82150-00-00 |
— | ||
| replacements | |||||
|
12
|
12
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
|
12
|
12
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
13
|
13
116-82151-00-00
Fuse (12V-10A)
|
116-82151-00-00 |
— | ||
| replacement | |||||
|
13
|
13
1A0-82151-00-00 Fuse (12V-10A) |
1A0-82151-00-00 |
from US $4.96 |
||
|
14
|
14
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
14
|
14
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
15
|
15
268-82131-00-00
Band, Battery
|
268-82131-00-00 |
— | ||
|
16
|
16
13F-82310-40-00 Ignition Coil Assy |
13F-82310-40-00 |
US $163.03 |
||
| replacement | |||||
|
16
|
16
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
17
|
17
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
18
|
18
512-82508-50-00
Main Switch Assy
|
512-82508-50-00 |
— | ||
|
19
|
19
2F7-82508-50-00 Main Switch Assembly |
2F7-82508-50-00 |
US $169.61 |
||
| replacement | |||||
|
19
|
19
2F7-82510-50-00 Main Switch Assy |
2F7-82510-50-00 |
US $164.38 |
||
|
20
|
20
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
20
|
20
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
21
|
21
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
22
|
22
13F-82590-00-00
Wire Harness Assy
|
13F-82590-00-00 |
— | ||
|
23
|
23
3K7-81980-00-00 Diode Assy |
3K7-81980-00-00 |
from US $15.44 |
||
|
24
|
24
524-85720-02-00
Oil Level Gauge Assy
|
524-85720-02-00 |
— | ||
|
25
|
25
1M3-83371-40-00
Horn
|
1M3-83371-40-00 |
— | ||
|
26
|
26
1M8-83378-00-00
Stay, Horn
|
1M8-83378-00-00 |
— | ||
|
27
|
27
13F-83378-00-00
Stay, Horn
|
13F-83378-00-00 |
— | ||
|
28
|
28
97001-06012-00 Bolt, Hexagon |
97001-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
28
|
28
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
28
|
28
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
29
|
29
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
30
|
30
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
31
|
31
13F-85132-00-00
Bracket, Reflector 1
|
13F-85132-00-00 |
— | ||
|
32
|
32
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
32
|
32
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
33
|
33
953-01056-00-00
Nut
|
953-01056-00-00 |
— | ||
| replacement | |||||
|
33
|
33
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
34
|
34
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
34
|
34
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
35
|
35
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
36
|
36
41M-81110-41-00
Stator Assy
|
41M-81110-41-00 |
— | ||
|
37
|
37
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
37
|
37
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
38
|
38
95301-05700-00 Nut (95302-05700-00) |
95301-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
38
|
38
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
39
|
39
41M-2481M-00-00
Bracket, Reflector 1
|
41M-2481M-00-00 |
— | ||
