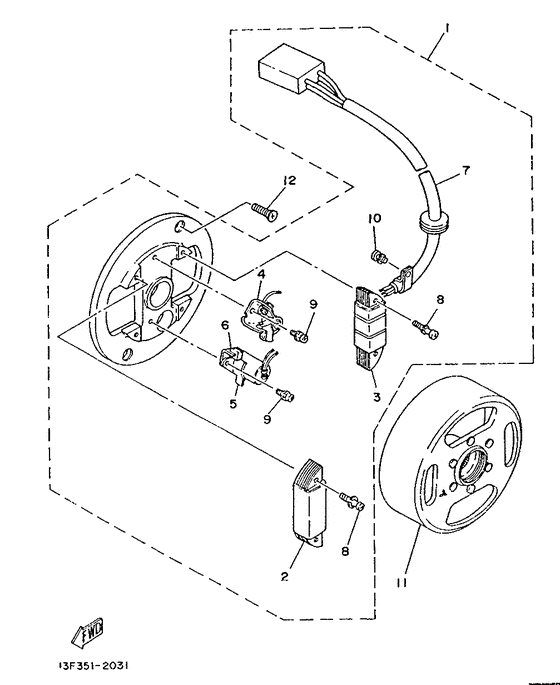

Generator Diagram Yamaha LB50
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3AR
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
13F-81310-20-00
Base Assy
|
13F-81310-20-00 |
— | ||
|
02
|
02
2M4-81312-20-00
Coil, Source
|
2M4-81312-20-00 |
— | ||
|
03
|
03
5N6-81313-20-00
Coil, Lighting 1
|
5N6-81313-20-00 |
— | ||
|
04
|
04
2A6-81321-20-00 Contact Brkr Assemblyassy |
2A6-81321-20-00 |
from US $56.34 |
||
|
05
|
05
1K8-81325-20-00 Condenser 1 |
1K8-81325-20-00 |
from US $46.28 |
||
|
06
|
06
116-81331-20-00 Lubricator |
116-81331-20-00 |
US $4.41 |
||
|
07
|
07
13F-81315-20-00
Lead Wire Assy
|
13F-81315-20-00 |
— | ||
|
08
|
08
97602-04125-00 Screw, Pan Head With Washer |
97602-04125-00 |
US $1.21 |
||
| replacement | |||||
|
08
|
08
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
09
|
09
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
10
|
10
110-81345-21-00 Screw, Pan Head |
110-81345-21-00 |
US $1.56 |
||
| replacement | |||||
|
10
|
10
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
11
|
11
520-81350-20-00
Rotor Assembly
|
520-81350-20-00 |
— | ||
|
12
|
12
98701-05016-00 Screw, Flat Head |
98701-05016-00 |
from US $1.42 |
||
| replacements | |||||
|
12
|
12
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
12
|
12
90151-05055-00 Screw, Countersunk(3Ac) |
90151-05055-00 |
from US $2.27 |
||
