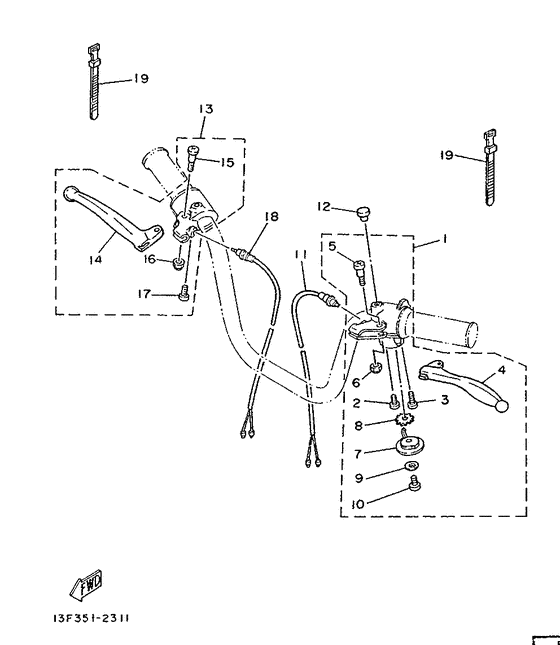

Handle switch & lever Diagram Yamaha LB50
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3AR
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1F1-W8271-00-00
Lever Holder Assy (Left)
|
1F1-W8271-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
02
|
02
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
02
|
02
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
03
|
03
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
03
|
03
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
03
|
03
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
04
|
04
425-83912-01-00
Lever 1
|
425-83912-01-00 |
— | ||
|
05
|
05
90149-05121-00 Screw |
90149-05121-00 |
US $2.52 |
||
|
06
|
06
953-01056-00-00
Nut
|
953-01056-00-00 |
— | ||
| replacement | |||||
|
06
|
06
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
07
|
07
439-83941-02-00 Lever, Starter |
439-83941-02-00 |
from US $14.38 |
||
| replacement | |||||
|
07
|
07
3LA-83941-00-00 Lever, Starter |
3LA-83941-00-00 |
from US $10.12 |
||
|
08
|
08
90209-10131-00 Washer |
90209-10131-00 |
from US $1.84 |
||
|
09
|
09
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
09
|
09
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
10
|
10
92501-06008-00 Screw, Pan Head |
92501-06008-00 |
US $1.56 |
||
| replacements | |||||
|
10
|
10
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
10
|
10
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
11
|
11
395-83980-00-00 Front Stop Switch As |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
11
|
11
395-83980-09-00 Front Stop Switch Assy |
395-83980-09-00 |
from US $28.79 |
||
|
12
|
12
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
13
|
13
13F-W8292-00-00
Lever Holder Assy (Right)
|
13F-W8292-00-00 |
— | ||
|
14
|
14
395-83922-02-00 Lever 2 |
395-83922-02-00 |
US $14.17 |
||
|
15
|
15
90149-05121-00 Screw |
90149-05121-00 |
US $2.52 |
||
|
16
|
16
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
16
|
16
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
17
|
17
98501-05025-00 Screw, Pan Head |
98501-05025-00 |
US $1.35 |
||
| replacement | |||||
|
17
|
17
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
18
|
18
17J-83980-00-00 Front Stop Switch Assy |
17J-83980-00-00 |
US $37.58 |
||
| replacement | |||||
|
18
|
18
395-83980-09-00 Front Stop Switch Assy |
395-83980-09-00 |
from US $28.79 |
||
|
19
|
19
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
19
|
19
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
