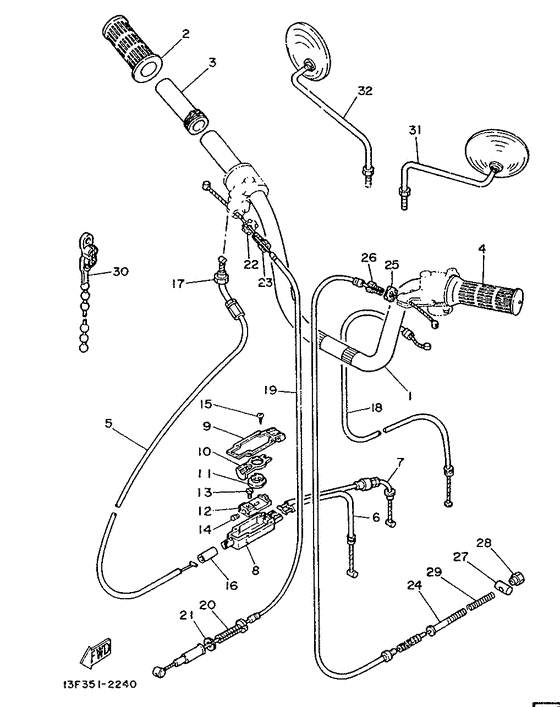

Steering handle & cable Diagram Yamaha LB50
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3AR
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2T5-26111-00-00 Handlebar |
2T5-26111-00-00 |
US $165.79 |
||
|
02
|
02
395-26242-00-00 Grip (Right) |
395-26242-00-00 |
US $20.83 |
||
|
03
|
03
395-26243-00-00 Tube, Throttle Guide |
395-26243-00-00 |
US $23.94 |
||
|
04
|
04
395-26241-00-00 Grip |
395-26241-00-00 |
US $20.83 |
||
|
05
|
05
2T5-26311-00-00 Cable, Throttle 1 |
2T5-26311-00-00 |
US $37.17 |
||
| replacement | |||||
|
05
|
05
2T5-26311-01-00 Cable, Throttle 1 |
2T5-26311-01-00 |
US $27.61 |
||
|
06
|
06
1FO-26312-00-00
Cable, Throttle 2
|
1FO-26312-00-00 |
— | ||
|
07
|
07
2T5-26321-00-00
Cable, Pump
|
2T5-26321-00-00 |
— | ||
| replacement | |||||
|
07
|
07
2T5-26321-01-00
Cable, Pump
|
2T5-26321-01-00 |
— | ||
|
08
|
08
2T5-26261-01-00 Connector, Cable |
2T5-26261-01-00 |
US $3.12 |
||
| replacement | |||||
|
08
|
08
2T5-26261-02-00 Connector, Cable |
2T5-26261-02-00 |
US $3.12 |
||
|
09
|
09
2T5-26262-00-00 Cap, Cable Connector |
2T5-26262-00-00 |
US $10.48 |
||
|
10
|
10
2T5-26274-00-00 Guide, Rotor |
2T5-26274-00-00 |
from US $5.99 |
||
|
11
|
11
2T5-26274-00-00 Guide, Rotor |
2T5-26274-00-00 |
from US $5.99 |
||
|
12
|
12
2T5-26244-00-00 Slider, Throttle |
2T5-26244-00-00 |
from US $3.72 |
||
|
13
|
13
2T5-26267-00-00 Pin |
2T5-26267-00-00 |
from US $2.02 |
||
|
14
|
14
90501-05512-00 Spring, Compression |
90501-05512-00 |
from US $1.70 |
||
|
15
|
15
90167-03004-00 Screw, Tapping |
90167-03004-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
97707-30514-00 Screw, Tapping |
97707-30514-00 |
from US $2.27 |
||
|
16
|
16
156-26329-00-00 Cap, Rubber |
156-26329-00-00 |
US $3.12 |
||
|
17
|
17
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
18
|
18
439-26331-00-00 Cable, Starter 1 |
439-26331-00-00 |
from US $17.85 |
||
|
19
|
19
439-26331-00-00 Cable, Starter 1 |
439-26331-00-00 |
from US $17.85 |
||
|
20
|
20
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
21
|
21
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
22
|
22
395-26323-00-00 Nut, Ajusting |
395-26323-00-00 |
from US $4.55 |
||
| replacements | |||||
|
22
|
22
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
22
|
22
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
23
|
23
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
23
|
23
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
23
|
23
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
24
|
24
439-26351-01-00 Cable, Brake |
439-26351-01-00 |
from US $41.72 |
||
|
25
|
25
395-26323-00-00 Nut, Ajusting |
395-26323-00-00 |
from US $4.55 |
||
| replacements | |||||
|
25
|
25
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
25
|
25
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
26
|
26
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
27
|
27
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
28
|
28
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
29
|
29
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
30
|
30
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
30
|
30
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
31
|
31
257-26290-21-00 Back Mirror Assy (Left) |
257-26290-21-00 |
US $32.16 |
||
| replacement | |||||
|
31
|
31
2FL-26280-00-00 Rear View Mirror Assy(Left) |
2FL-26280-00-00 |
US $32.16 |
||
|
32
|
32
257-26290-71-00
Back Mirror Assy (Right)
Ap |
257-26290-71-00 |
— | ||
| replacement | |||||
|
32
|
32
2FL-26290-00-00
Rear View Mirror Assy(Right)
Ap |
2FL-26290-00-00 |
— | ||
