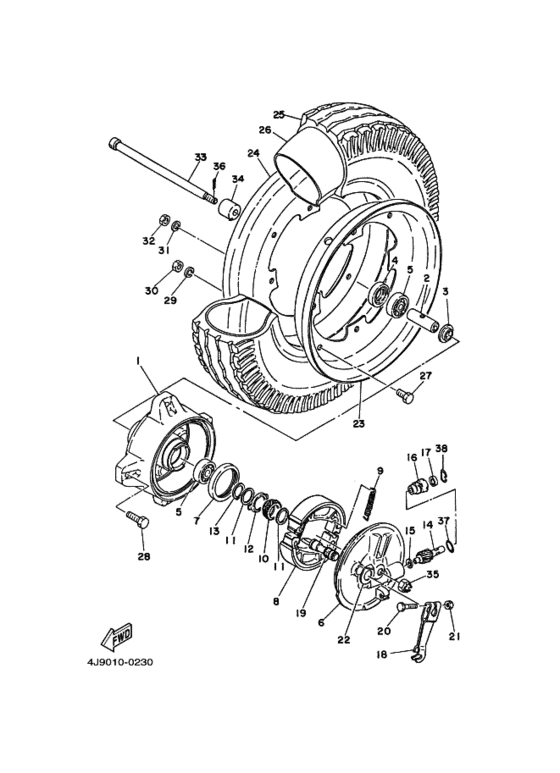

Front wheel Diagram Yamaha LB50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J90
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
439-25111-01-00 Hub, Front |
439-25111-01-00 |
US $179.28 |
||
| replacement | |||||
|
1
|
1
439-25111-01-35 Hub, Front |
439-25111-01-35 |
US $179.28 |
||
|
2
|
2
90560-10104-00 Spacerスペーサ; |
90560-10104-00 |
from US $7.78 |
||
|
3
|
3
195-25115-00-00 New Genuine Partフランジ，スペーサ １; |
195-25115-00-00 |
from US $2.43 |
||
| replacement | |||||
|
3
|
3
2E9-25116-00-00 Flange, Spacer 2フランジ，スペーサ １; |
2E9-25116-00-00 |
from US $3.47 |
||
|
4
|
4
93106-20001-00 Oil Sealオイルシール; |
93106-20001-00 |
US $6.24 |
||
|
5
|
5
933-06300-03-00 Bearingベアリング ; Ｂ６３００Ｚ |
933-06300-03-00 |
from US $10.10 |
||
|
6
|
6
3T5-25121-00-35 Plate, Brake Shoeプレート，ブレーキシユー; シルバー |
3T5-25121-00-35 |
US $92.36 |
||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
プレート，ブレーキシユー; シルバー |
999-99999-99-00 |
— | ||
|
7
|
7
93105-47007-00 Oil Sealオイルシール; |
93105-47007-00 |
from US $6.06 |
||
|
8
|
8
296-25330-00-00 Brake Shoe Compブレーキシユーコンプリート; |
296-25330-00-00 |
US $23.89 |
||
| replacement | |||||
|
8
|
8
4KN-W253E-11-00 Brake Shoe Kitブレーキシユーコンプリート; |
4KN-W253E-11-00 |
from US $28.08 |
||
|
9
|
9
90506-16150-00 Spring, Tension (566)スプリング，テンシヨン; |
90506-16150-00 |
from US $3.97 |
||
|
10
|
10
1M3-25135-01-00
Gear, Drive
|
1M3-25135-01-00 |
— | ||
|
11
|
11
90201-20269-00 Washer, Plateワツシヤ，プレート; |
90201-20269-00 |
from US $1.70 |
||
|
12
|
12
183-25149-00-00 Clutch, Meterクラツチ，メータ; |
183-25149-00-00 |
from US $2.98 |
||
|
13
|
13
93410-20009-00 Circlipサークリツプ; |
93410-20009-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
99009-20400-00 Circlipサークリツプ; |
99009-20400-00 |
from US $1.56 |
||
|
14
|
14
1M3-25138-01-00
Gear, Meter
ギア，メータ; |
1M3-25138-01-00 |
— | ||
|
15
|
15
90201-07076-00 Washer, Plateワツシヤ，プレート; |
90201-07076-00 |
from US $1.70 |
||
|
16
|
16
109-25136-00-00 Bushブツシユ １; |
109-25136-00-00 |
from US $10.71 |
||
|
17
|
17
93104-07003-00 Oil Seal, So-Typeオイルシール; |
93104-07003-00 |
from US $1.84 |
||
|
18
|
18
3E1-25155-00-00 Lever, Camshaft 1レバー，カムシヤフト １; |
3E1-25155-00-00 |
US $19.39 |
||
|
19
|
19
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
19
|
19
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
20
|
20
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
21
|
21
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
22
|
22
3E1-2513A-10-00 Plate, Indicatorプレート，インジケータ; |
3E1-2513A-10-00 |
from US $2.55 |
||
| replacements | |||||
|
22
|
22
5AD-F533A-00-00
Plate, Indicator
プレート，インジケータ; |
5AD-F533A-00-00 |
— | ||
|
22
|
22
3Y6-2533A-01-00 Plate, Indicatorプレート，インジケータ; |
3Y6-2533A-01-00 |
from US $2.55 |
||
|
23
|
23
1M3-25337-10-35
Panel, Wheel 1
パネル，ホイール １; |
1M3-25337-10-35 |
— | ||
|
24
|
24
1M3-25347-10-35
Panel, Wheel 2
パネル，ホイール ２; シルバー |
1M3-25347-10-35 |
— | ||
|
25
|
25
94140-10235-00
Tire (4.00-10)
．タイヤ ; ４００−１０; シルバー |
94140-10235-00 |
— | ||
|
26
|
26
94240-10073-00
Tube (4.00-10)
．チユーブ ; ４００−１０ |
94240-10073-00 |
— | ||
| replacement | |||||
|
26
|
26
942-35102-02-00
Tube
．チユーブ ; ４００−１０ |
942-35102-02-00 |
— | ||
|
27
|
27
90119-08023-00 Bolt, With Washer |
90119-08023-00 |
US $1.35 |
||
| replacements | |||||
|
27
|
27
97527-08516-00 Bolt, With Washer |
97527-08516-00 |
from US $1.35 |
||
|
27
|
27
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
28
|
28
90101-08249-00 Bolt |
90101-08249-00 |
from US $1.21 |
||
| replacement | |||||
|
28
|
28
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
29
|
29
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
30
|
30
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
30
|
30
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
30
|
30
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
31
|
31
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
32
|
32
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
32
|
32
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
32
|
32
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
33
|
33
439-25181-01-00
Axle, Wheel
アクスル，ホイール; |
439-25181-01-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99022-16-00
Axle, Wheel Kit
アクスル，ホイール; |
999-99022-16-00 |
— | ||
|
34
|
34
90387-10081-00 Collarカラー; |
90387-10081-00 |
from US $9.63 |
||
|
35
|
35
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.45 |
||
| replacement | |||||
|
35
|
35
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
36
|
36
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
36
|
36
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
37
|
37
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
37
|
37
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
38
|
38
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
