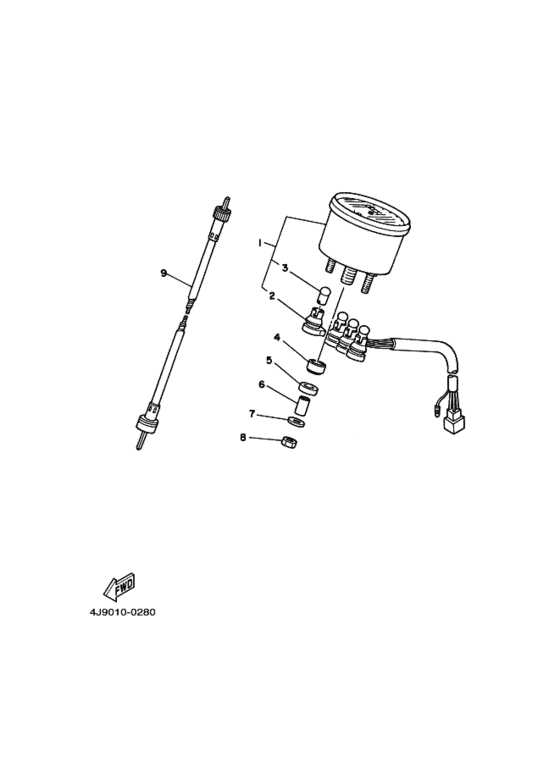

Meter Diagram Yamaha LB50
- Year
- 1980
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 4J90
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- LB50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4J9-83510-50-00
Speedometer Assy
スピードメータアセンブリ; |
4J9-83510-50-00 |
— | ||
|
2
|
2
4J9-83520-00-00
Socket Cord Assy
．ソケツトアセンブリ; |
4J9-83520-00-00 |
— | ||
|
3
|
3
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S．バルブ ; ６Ｖ−３Ｗ |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
3
|
3
122-83516-10-XX
Bulb
．バルブ ; ６Ｖ−３Ｗ |
122-83516-10-XX |
— | ||
|
4
|
4
1M3-83513-00-00
Damper
|
1M3-83513-00-00 |
— | ||
|
5
|
5
355-83526-00-00 Damper 2ダンパ ２; |
355-83526-00-00 |
from US $2.98 |
||
|
6
|
6
355-83522-00-00 Collarカラー; |
355-83522-00-00 |
US $9.79 |
||
|
7
|
7
355-83524-00-00 Washer, Special |
355-83524-00-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $2.13 |
||
|
8
|
8
95701-06100-00 Nut, With Washer |
95701-06100-00 |
from US $1.13 |
||
| replacement | |||||
|
8
|
8
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
9
|
9
4J9-83550-00-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
4J9-83550-00-00 |
US $39.79 |
||
