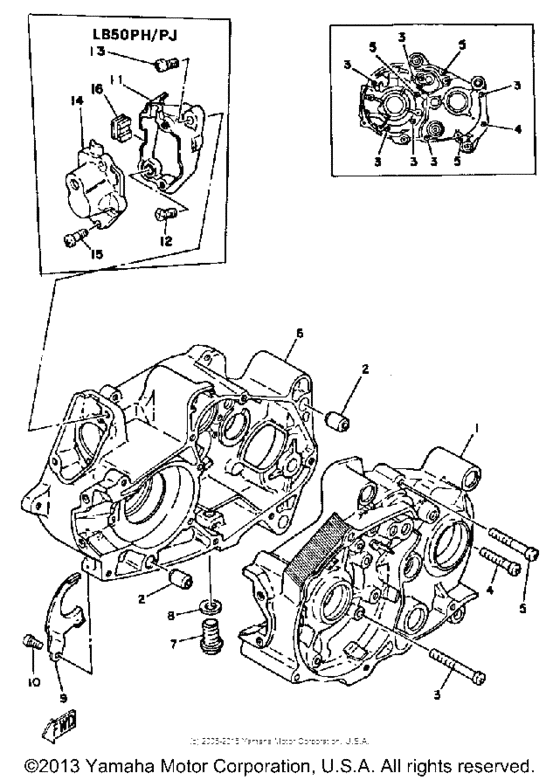

Crankcase Diagram Yamaha LB50
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
439-15111-04-00
Crankcase 1
|
439-15111-04-00 |
— | ||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
3
|
3
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
4
|
4
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
4
|
4
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
5
|
5
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
6
|
6
439-15121-04-00
Crankcase 2
|
439-15121-04-00 |
— | ||
|
7
|
7
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
8
|
8
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
9
|
9
296-15128-00-00 Holder |
296-15128-00-00 |
US $6.91 |
||
|
10
|
10
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.56 |
||
|
11
|
11
439-15416-02-00 Cover, Oil Pump |
439-15416-02-00 |
US $33.25 |
||
|
12
|
12
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
13
|
13
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
13
|
13
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
14
|
14
439-15426-03-00
Cover, Oil Pump R
|
439-15426-03-00 |
— | ||
|
15
|
15
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
15
|
15
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
16
|
16
90480-16179-00
Grommet
|
90480-16179-00 |
— | ||
