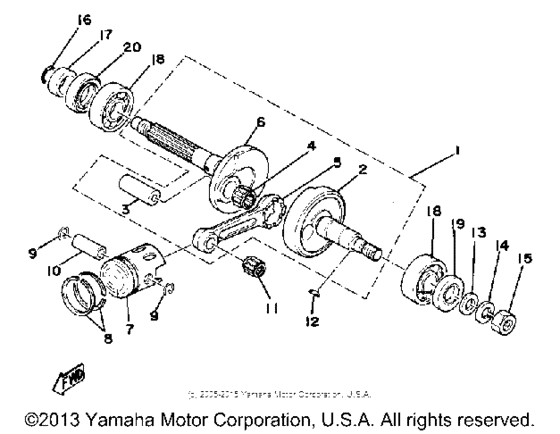

Crankshaft & Piston Diagram Yamaha LB50
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3E4-11400-00-00 Crankshaft Assembly |
3E4-11400-00-00 |
US $433.90 |
||
|
2
|
2
517-11412-03-00
Crank 1
|
517-11412-03-00 |
— | ||
|
3
|
3
257-11681-00-00
Pin, Crank 1
|
257-11681-00-00 |
— | ||
| replacement | |||||
|
3
|
3
257-11681-10-00 Pin, Crank 1 |
257-11681-10-00 |
from US $29.75 |
||
|
4
|
4
933-10418-T0-00
Bearing Cylinder #10
#10 |
933-10418-T0-00 |
— | ||
| replacement | |||||
|
4
|
4
93310-418C4-00 Bearing Cylinder #10#10 |
93310-418C4-00 |
from US $19.69 |
||
|
5
|
5
3R1-11651-01-00 Rod, Connecting (3R1-11651-003R1-11651-00 |
3R1-11651-01-00 |
from US $123.10 |
||
|
6
|
6
520-11422-01-00
Crank 2
|
520-11422-01-00 |
— | ||
|
7
|
7
353-11631-22-96 Piston Std (Std) |
353-11631-22-96 |
US $106.25 |
||
|
7
|
7
353-11635-22-00 Piston 1 O/s 0.25 (1St O/s 0.25O/S 0.25 1ST O/S 0.25 ALT. PRT |
353-11635-22-00 |
US $95.33 |
||
|
7
|
7
353-11636-22-00 Piston 2 O/s 0.50 (2Nd O/s 0.50O/S 0.50 2ND O/S 0.50 ALT. PRT |
353-11636-22-00 |
US $101.81 |
||
|
8
|
8
260-11601-02-00 Piston Ring Set (Std) |
260-11601-02-00 |
from US $50.70 |
||
|
8
|
8
260-11601-22-00 Piston Ring Set (0.50Mm Os)0.50MM OS ALT. PRT |
260-11601-22-00 |
from US $50.70 |
||
|
8
|
8
260-11601-12-00 Pist0N Ring Set (0.25 Mm O/s)0.25 MM O/S ALT. PRT |
260-11601-12-00 |
from US $50.70 |
||
| replacement | |||||
|
8
|
8
260-11601-13-00 Piston Ring Set (0.25Mm O/s)0.25 MM O/S ALT. PRT |
260-11601-13-00 |
from US $51.26 |
||
|
9
|
9
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.70 |
||
|
10
|
10
517-11633-00-00 Pin, Piston |
517-11633-00-00 |
from US $12.47 |
||
| replacement | |||||
|
10
|
10
102-11633-02-00 Pin, Piston |
102-11633-02-00 |
from US $8.84 |
||
|
11
|
11
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.15 |
||
|
12
|
12
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
13
|
13
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
14
|
14
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
15
|
15
95303-12600-00 Nut |
95303-12600-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
16
|
16
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $2.02 |
||
|
17
|
17
90387-20345-00 Collar (132-16136-01)132-16136-01 |
90387-20345-00 |
US $8.59 |
||
|
18
|
18
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
| replacement | |||||
|
18
|
18
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
19
|
19
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
20
|
20
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $6.40 |
||
