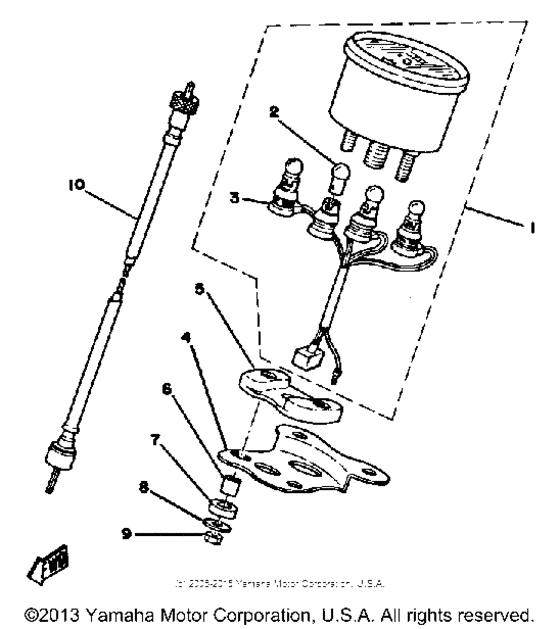

Meter Diagram Yamaha LB50
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2F7-83510-61-00
Speedometer Assembly
|
2F7-83510-61-00 |
— | ||
|
2
|
2
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S6V1CP BA9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
2
|
2
122-83516-10-XX
Bulb
6V1CP BA9S |
122-83516-10-XX |
— | ||
|
3
|
3
2F7-83520-60-00
Socket Cord Assy
|
2F7-83520-60-00 |
— | ||
|
4
|
4
439-83519-00-33
Bracket, Meter
|
439-83519-00-33 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
355-83513-00-00
Damper
|
355-83513-00-00 |
— | ||
|
6
|
6
355-83522-00-00 Collar |
355-83522-00-00 |
US $9.79 |
||
|
7
|
7
355-83526-00-00 Damper 2 |
355-83526-00-00 |
from US $2.98 |
||
|
8
|
8
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $2.13 |
||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
10
|
10
3T5-83550-80-00 Speedometer Cable |
3T5-83550-80-00 |
from US $42.83 |
||
