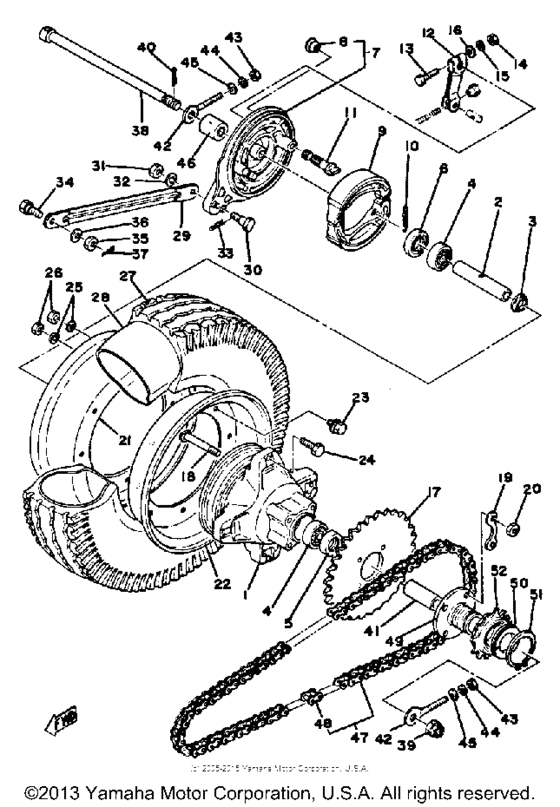

Rear wheel Diagram Yamaha LB50
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
439-25311-00-00
Hub, Rear
|
439-25311-00-00 |
— | ||
|
2
|
2
90560-12110-00 Spacer (439-25317-00)439-25317-00 |
90560-12110-00 |
US $15.32 |
||
|
3
|
3
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
4
|
4
93306-20111-00 Bearing |
93306-20111-00 |
from US $20.12 |
||
| replacement | |||||
|
4
|
4
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $12.12 |
||
|
5
|
5
93106-20011-00
Oil Seal, Dd-Type
|
93106-20011-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
7
|
7
339-25026-10-35 Brake Shoe Plt Assembly (339-25339-25 SILVER |
339-25026-10-35 |
US $94.64 |
||
|
8
|
8
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
9
|
9
10X-W2536-00-00 Brake Shoe Kit |
10X-W2536-00-00 |
from US $21.24 |
||
| replacement | |||||
|
9
|
9
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
10
|
10
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
11
|
11
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
12
|
12
102-25355-01-00
Lever, Camshaft
|
102-25355-01-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
17
|
17
109-25431-10-33
Sprocket, Drivn 31T
31T U.R.YAMAHA BLK |
109-25431-10-33 |
— | ||
| replacement | |||||
|
17
|
17
109-25432-10-00
Sprocket, Drivn 32T
31T U.R.YAMAHA BLK |
109-25432-10-00 |
— | ||
|
17
|
17
109-25432-10-00
Sprocket, Drivn 32T
32T U.R. STDYAMAHA BLK |
109-25432-10-00 |
— | ||
|
17
|
17
109-25433-10-00
Sprocket, Drvn 33T
33T U.R.YAMAHA BLK |
109-25433-10-00 |
— | ||
|
18
|
18
90109-08411-00
Bolt
|
90109-08411-00 |
— | ||
|
19
|
19
2A3-25412-00-00 Washer |
2A3-25412-00-00 |
from US $6.32 |
||
| replacement | |||||
|
19
|
19
2AL-25412-00-00 Washer |
2AL-25412-00-00 |
from US $6.66 |
||
|
20
|
20
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
21
|
21
1L4-25337-00-00 Panel, Wheel 1SILVER |
1L4-25337-00-00 |
from US $51.88 |
||
|
22
|
22
1L4-25347-00-35 Panel, Wheel 2SILVER |
1L4-25347-00-35 |
from US $69.05 |
||
| replacement | |||||
|
22
|
22
1L4-25347-00-00 Panel, Wheel 2SILVER |
1L4-25347-00-00 |
from US $51.88 |
||
|
23
|
23
90119-08023-00 Bolt, With Washer |
90119-08023-00 |
US $1.35 |
||
| replacements | |||||
|
23
|
23
97527-08516-00 Bolt, With Washer |
97527-08516-00 |
from US $1.35 |
||
|
23
|
23
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
24
|
24
90101-08249-00 Bolt |
90101-08249-00 |
from US $1.21 |
||
| replacement | |||||
|
24
|
24
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
26
|
26
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
27
|
27
94140-081M1-00 400-8 55J Irc Trials55J IRC TRIALS |
94140-081M1-00 |
US $158.04 |
||
| replacement | |||||
|
27
|
27
94140-08747-00 Tire (5F5)55J IRC TRIALS |
94140-08747-00 |
US $181.13 |
||
|
28
|
28
94240-08136-00 Tube |
94240-08136-00 |
US $40.93 |
||
|
29
|
29
353-25371-00-00
Bar, Tension
|
353-25371-00-00 |
— | ||
|
30
|
30
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
30
|
30
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
31
|
31
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
31
|
31
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
32
|
32
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
33
|
33
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
34
|
34
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
35
|
35
90179-08288-00
Nut, Special Shape
|
90179-08288-00 |
— | ||
|
36
|
36
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
37
|
37
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
38
|
38
550-25381-00-00 Axle, Wheel |
550-25381-00-00 |
US $53.89 |
||
|
39
|
39
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
39
|
39
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
40
|
40
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
40
|
40
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
41
|
41
903-87125-02-00 Collar |
903-87125-02-00 |
US $9.54 |
||
|
42
|
42
102-25389-00-00 Puller, Chain |
102-25389-00-00 |
from US $10.58 |
||
| replacements | |||||
|
42
|
42
3AC-2538G-10-00 Puller, Chain |
3AC-2538G-10-00 |
from US $10.63 |
||
|
42
|
42
4GL-2538G-10-00 Puller, Chain |
4GL-2538G-10-00 |
from US $12.35 |
||
|
43
|
43
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
44
|
44
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
45
|
45
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
45
|
45
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
45
|
45
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
45
|
45
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
46
|
46
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
47
|
47
945-13092-00-00
New Genuine Part
IN PRICE BOOK DK42 |
945-13092-00-00 |
— | ||
|
48
|
48
94680-52001-00 Joint, Chain(Did 420M)420M |
94680-52001-00 |
from US $2.98 |
||
|
49
|
49
550-25521-01-00
Boss
|
550-25521-01-00 |
— | ||
|
50
|
50
550-25522-00-00
Holder
|
550-25522-00-00 |
— | ||
| replacement | |||||
|
50
|
50
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
51
|
51
93410-48020-00 Circlip, S-Type |
93410-48020-00 |
US $8.60 |
||
|
52
|
52
34N-25510-00-00
Free Wheel Assembly
|
34N-25510-00-00 |
— | ||
