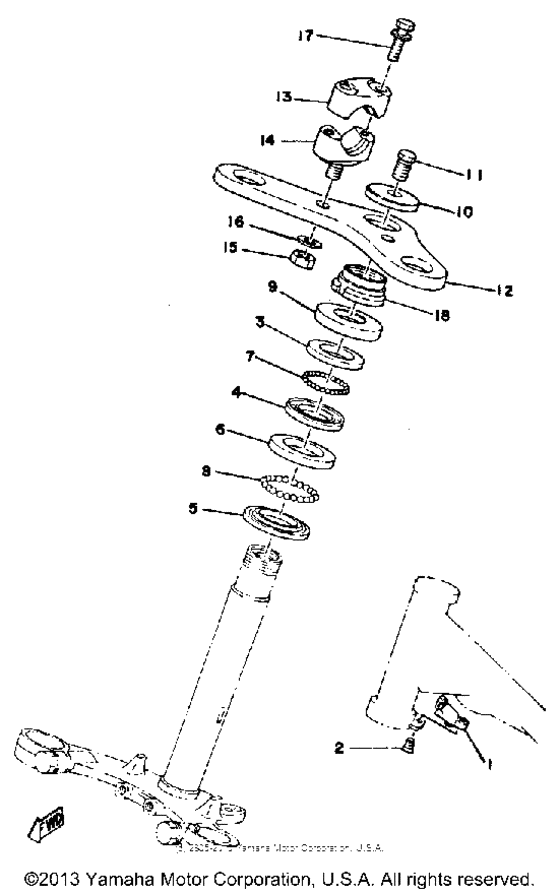

Steering Diagram Yamaha LB50
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
137-23480-00-00 Steering Lock Assembly |
137-23480-00-00 |
US $57.89 |
||
|
2
|
2
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
2
|
2
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $2.27 |
||
|
2
|
2
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
3
|
3
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
3
|
3
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
4
|
4
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
4
|
4
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
5
|
5
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
5
|
5
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
6
|
6
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
6
|
6
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
7
|
7
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
7
|
7
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
8
|
8
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
9
|
9
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
10
|
10
90209-10021-00 Washer |
90209-10021-00 |
US $4.53 |
||
| replacement | |||||
|
10
|
10
90209-10160-00 Washer (1Yj) |
90209-10160-00 |
from US $4.53 |
||
|
11
|
11
90105-10006-00 Bolt, Flange |
90105-10006-00 |
from US $4.68 |
||
| replacement | |||||
|
11
|
11
901-06100-46-00 Bolt(3Pp) |
901-06100-46-00 |
from US $6.17 |
||
|
12
|
12
439-23435-01-93
Crown, Handle
|
439-23435-01-93 |
— | ||
|
13
|
13
462-23441-00-00 Holder,handle Upr |
462-23441-00-00 |
from US $14.20 |
||
| replacement | |||||
|
13
|
13
462-23441-01-00 Holder, Handle Upper |
462-23441-01-00 |
from US $17.87 |
||
|
14
|
14
462-23442-00-98 Holder, Handle Lwr |
462-23442-00-98 |
from US $16.42 |
||
|
15
|
15
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
16
|
16
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
17
|
17
90119-06017-00 Bolt, Hexagon |
90119-06017-00 |
from US $1.44 |
||
| replacement | |||||
|
17
|
17
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
18
|
18
90179-25051-00 Nut |
90179-25051-00 |
from US $17.99 |
||
