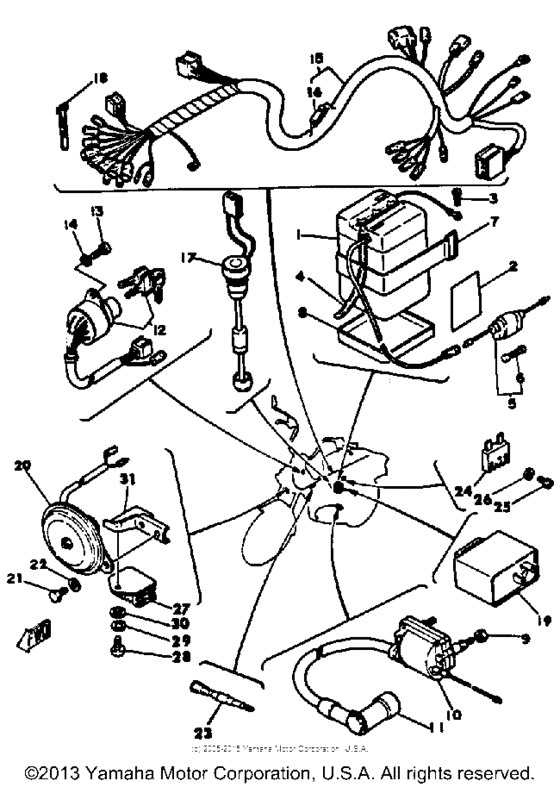

Electrical Diagram Yamaha LB50
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
1
|
1
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
2
|
2
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
2
|
2
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
4
|
4
90445-08247-00 Hose (L500) |
90445-08247-00 |
US $10.91 |
||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
5
|
5
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
6
|
6
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
6
|
6
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
7
|
7
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
7
|
7
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
8
|
8
268-82122-00-00
Seat, Battery
|
268-82122-00-00 |
— | ||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
10
|
10
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
11
|
11
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
12
|
12
2F7-82508-50-00 Main Switch Assembly |
2F7-82508-50-00 |
US $169.61 |
||
| replacement | |||||
|
12
|
12
2F7-82510-50-00 Main Switch Assy |
2F7-82510-50-00 |
US $164.38 |
||
|
13
|
13
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
13
|
13
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
14
|
14
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
15
|
15
2U7-82590-21-00
Wire Harness Assembly
|
2U7-82590-21-00 |
— | ||
|
16
|
16
3K7-81980-00-00 Diode Assy |
3K7-81980-00-00 |
from US $15.44 |
||
|
17
|
17
4L0-85720-00-00
Oil Lvl Guage Assembly
|
4L0-85720-00-00 |
— | ||
|
18
|
18
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
19
|
19
2F7-83350-60-00
Flasher Relay Assembly
|
2F7-83350-60-00 |
— | ||
|
20
|
20
439-83371-11-00 Horn |
439-83371-11-00 |
from US $62.96 |
||
| replacement | |||||
|
20
|
20
2A7-83371-10-00
Horn
|
2A7-83371-10-00 |
— | ||
|
21
|
21
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
21
|
21
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
517-81980-A0-00 Diode AssyDiode assy |
517-81980-A0-00 |
US $28.78 |
||
|
24
|
24
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
24
|
24
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
24
|
24
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
25
|
25
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
26
|
26
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
26
|
26
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
26
|
26
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
27
|
27
4F4-81910-60-00 Voltage Reg Assembly |
4F4-81910-60-00 |
from US $133.05 |
||
|
28
|
28
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
28
|
28
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
29
|
29
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
30
|
30
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
30
|
30
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
30
|
30
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
31
|
31
2U7-81915-00-00
Plate, Reg Fitting
|
2U7-81915-00-00 |
— | ||
