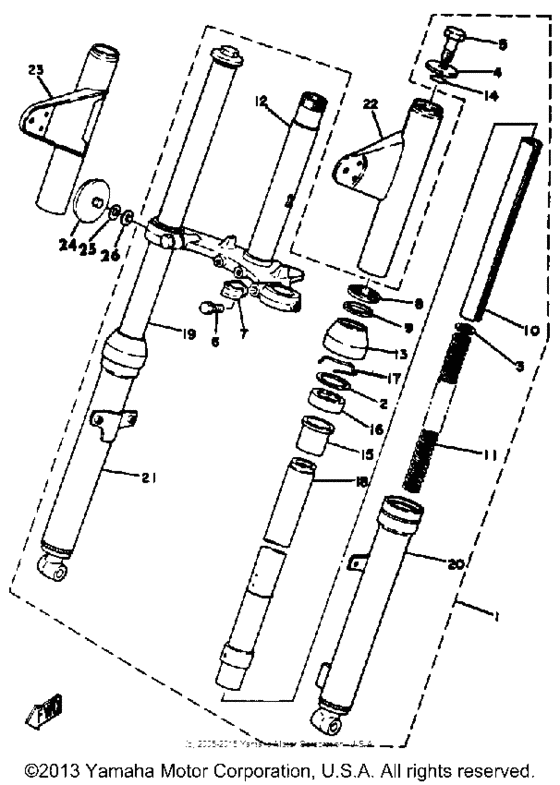

Front fork Diagram Yamaha LB50
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1J9-23101-00-00
Front Fork Assembly
|
1J9-23101-00-00 |
— | ||
|
2
|
2
367-23146-60-00 Washer, Oil Seal |
367-23146-60-00 |
US $12.33 |
||
|
3
|
3
290-23149-00-00
Washer, Spring Upr
|
290-23149-00-00 |
— | ||
|
4
|
4
207-23112-00-00 Washer, Cap |
207-23112-00-00 |
from US $14.45 |
||
|
5
|
5
395-23111-00-00 Bolt, Cap |
395-23111-00-00 |
US $20.71 |
||
|
6
|
6
1M3-23346-00-00 Bolt 1 |
1M3-23346-00-00 |
US $8.64 |
||
| replacement | |||||
|
6
|
6
1M3-23346-01-00 Bolt 1 |
1M3-23346-01-00 |
US $6.46 |
||
|
7
|
7
260-23318-40-00 Wire, Holder 1 |
260-23318-40-00 |
US $5.38 |
||
|
8
|
8
354-23115-90-00
Guide, Cover Upper
|
354-23115-90-00 |
— | ||
|
9
|
9
164-23163-00-00 Gasket |
164-23163-00-00 |
from US $7.65 |
||
|
10
|
10
2T5-23166-00-00
Spacer, Oil Lock
|
2T5-23166-00-00 |
— | ||
| replacement | |||||
|
10
|
10
28Y-23166-00-00
Spacer, Oil Lock
|
28Y-23166-00-00 |
— | ||
|
11
|
11
2T5-23141-00-00 Spring, Front Fork |
2T5-23141-00-00 |
US $34.22 |
||
|
12
|
12
2T5-23340-00-33
Under Bracket
|
2T5-23340-00-33 |
— | ||
|
13
|
13
367-23144-60-00 Seal, Dust |
367-23144-60-00 |
US $19.39 |
||
|
14
|
14
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
15
|
15
367-23125-60-00 Metal, Slide 1 |
367-23125-60-00 |
from US $24.51 |
||
|
16
|
16
3VR-23145-00-00 Oil Seal |
3VR-23145-00-00 |
from US $16.43 |
||
|
17
|
17
1T8-23156-00-00 Ring, Snap |
1T8-23156-00-00 |
from US $4.82 |
||
|
18
|
18
4F4-23124-00-00 Tube, Inner 1 |
4F4-23124-00-00 |
US $292.16 |
||
| replacement | |||||
|
18
|
18
4J9-23124-00-00 Tube, Inner 1 |
4J9-23124-00-00 |
US $292.16 |
||
|
19
|
19
4F4-23134-00-00 Tube, Inner 2 |
4F4-23134-00-00 |
from US $144.18 |
||
|
20
|
20
4F4-23126-00-35
Tube, Outer 1
SILVER |
4F4-23126-00-35 |
— | ||
|
21
|
21
4F4-23136-00-35 Tube, Outer 2SILVER |
4F4-23136-00-35 |
US $222.31 |
||
|
22
|
22
439-23121-00-66
Cover, Upper 1
SUNSHINE RED |
439-23121-00-66 |
— | ||
|
23
|
23
439-23131-00-66
Cover, Upper 2
SUNSHINE RED |
439-23131-00-66 |
— | ||
|
24
|
24
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
25
|
25
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
26
|
26
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
