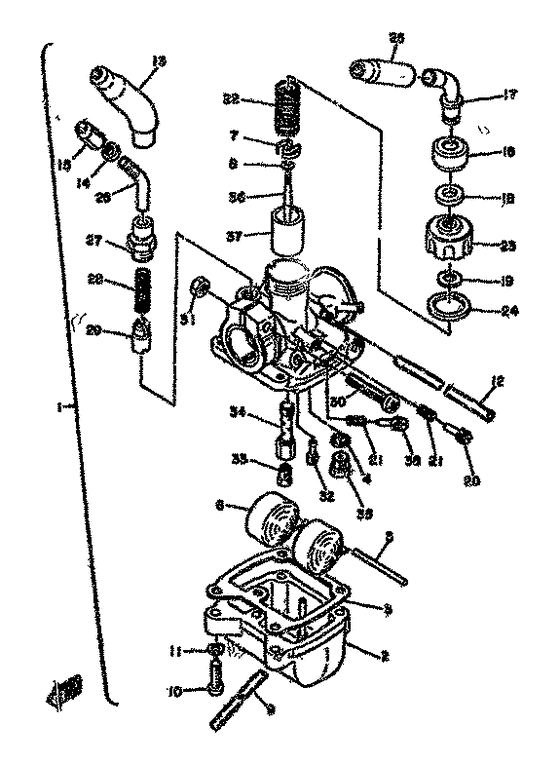

Carburetor Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1F5-14101-01-00 Carburetor Assy 1 |
1F5-14101-01-00 |
US $331.58 |
||
|
02
|
02
1V3-14181-05-00
Body, Float Chmbr 1
|
1V3-14181-05-00 |
— | ||
|
03
|
03
127-14184-00-00 Gasket, Float Chamber |
127-14184-00-00 |
from US $11.93 |
||
|
04
|
04
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
05
|
05
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
06
|
06
127-14185-00-00 Float |
127-14185-00-00 |
from US $43.66 |
||
|
07
|
07
296-14136-00-00
Seat, Spring
|
296-14136-00-00 |
— | ||
|
08
|
08
127-14137-00-00 Clip |
127-14137-00-00 |
from US $7.70 |
||
|
09
|
09
1V3-14196-00-00 Hose (L200) |
1V3-14196-00-00 |
from US $1.85 |
||
| replacements | |||||
|
09
|
09
904-4505N-13-00 Hose (L200) |
904-4505N-13-00 |
from US $3.33 |
||
|
09
|
09
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $5.41 |
||
|
10
|
10
98501-04018-00 Screw, Pan Head |
98501-04018-00 |
US $1.56 |
||
| replacements | |||||
|
10
|
10
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
10
|
10
985-17040-20-00 Screw, Pan Head |
985-17040-20-00 |
from US $1.35 |
||
|
11
|
11
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
1M2-14196-00-00
Pipe, Overflow
|
1M2-14196-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
1R0-14169-00-00 Cap |
1R0-14169-00-00 |
from US $9.49 |
||
|
14
|
14
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
15
|
15
432-14124-00-00 Screw, Cable Adjusting |
432-14124-00-00 |
from US $8.93 |
||
| replacement | |||||
|
15
|
15
17L-14106-00-00 Cable Adjust Screw Set |
17L-14106-00-00 |
from US $3.72 |
||
|
16
|
16
1M1-14169-00-00 Cap |
1M1-14169-00-00 |
from US $7.97 |
||
| replacement | |||||
|
16
|
16
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $13.60 |
||
|
17
|
17
1V3-14155-00-00
Guide Holder Assy
|
1V3-14155-00-00 |
— | ||
|
18
|
18
509-14198-00-00 Gasket |
509-14198-00-00 |
from US $13.60 |
||
|
19
|
19
341-14952-00-00
Washer
|
341-14952-00-00 |
— | ||
| replacement | |||||
|
19
|
19
584-14956-00-00
Washer, Plug Screw
|
584-14956-00-00 |
— | ||
|
20
|
20
102-14122-00-00 Throttle Screw Set |
102-14122-00-00 |
from US $21.39 |
||
| replacement | |||||
|
20
|
20
12G-14103-00-00 Throttle Screw Set |
12G-14103-00-00 |
from US $21.39 |
||
|
21
|
21
127-14134-00-00 Spring, Air Adj |
127-14134-00-00 |
from US $9.49 |
||
|
22
|
22
127-14131-00-00 Spring, Thrtl Valve |
127-14131-00-00 |
US $11.47 |
||
|
23
|
23
1V3-14158-00-00
Top, Mixing Chamber
|
1V3-14158-00-00 |
— | ||
|
24
|
24
1V3-14126-00-00 Gasket |
1V3-14126-00-00 |
from US $10.63 |
||
|
25
|
25
439-14169-00-00 Cap |
439-14169-00-00 |
US $36.70 |
||
|
26
|
26
439-14155-00-00
Guide, Cable
|
439-14155-00-00 |
— | ||
|
27
|
27
439-14174-01-00
Cap, Plunger
|
439-14174-01-00 |
— | ||
|
28
|
28
127-14135-00-00 Coil, Spring |
127-14135-00-00 |
from US $4.58 |
||
|
29
|
29
127-14171-00-00 Plunger, Starter |
127-14171-00-00 |
from US $23.80 |
||
| replacements | |||||
|
29
|
29
3XV-14171-00-00 Plunger, Starter |
3XV-14171-00-00 |
from US $18.28 |
||
|
29
|
29
58E-14171-00-00 Plunger, Starter |
58E-14171-00-00 |
from US $26.21 |
||
|
30
|
30
127-14125-01-00 Screw, Body Fitting |
127-14125-01-00 |
from US $6.02 |
||
|
31
|
31
296-14164-00-00
Nut, Holding
|
296-14164-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
193-14142-15-00 Jet, Pilot (# 15) |
193-14142-15-00 |
from US $9.61 |
||
| replacement | |||||
|
32
|
32
193-14142-15-A0 Jet, Pilot (# 15) |
193-14142-15-A0 |
from US $10.46 |
||
|
33
|
33
127-14143-20-00 Jet, Main #100Ur |
127-14143-20-00 |
from US $9.99 |
||
|
33
|
33
127-14143-18-00 Jet, Main #90Ur |
127-14143-18-00 |
US $16.31 |
||
|
33
|
33
127-14143-19-00 Jet, Main #95Ur |
127-14143-19-00 |
US $4.79 |
||
|
34
|
34
127-14141-18-00
Nozzle, Main
|
127-14141-18-00 |
— | ||
|
35
|
35
353-14190-12-00 Needle Valve Assy |
353-14190-12-00 |
from US $42.14 |
||
|
36
|
36
127-14116-09-00 Needle |
127-14116-09-00 |
from US $16.45 |
||
|
37
|
37
1F5-14112-25-00
Valve, Throttle 1
|
1F5-14112-25-00 |
— | ||
|
38
|
38
127-14123-00-00 Screw, Air Adjusting.set |
127-14123-00-00 |
from US $17.33 |
||
| replacement | |||||
|
38
|
38
127-W1412-00-00 Screw, Air Adjusting.set |
127-W1412-00-00 |
from US $17.33 |
||
