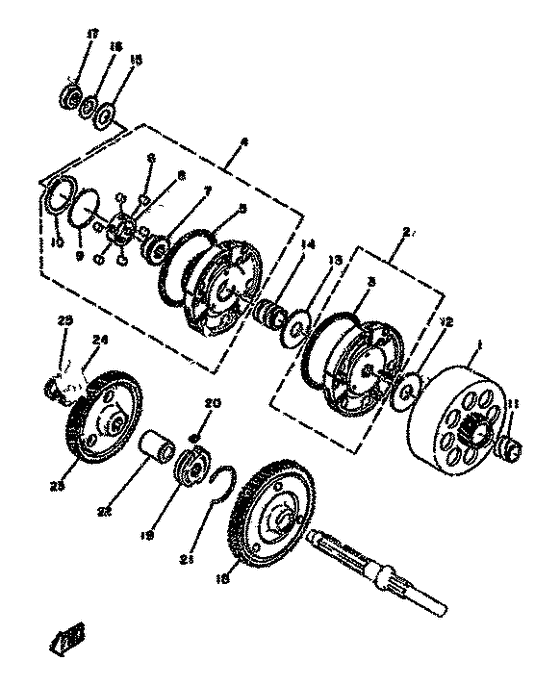

Clutch Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
384-16110-00-00
Pri Drv Gear Assembly
|
384-16110-00-00 |
— | ||
|
02
|
02
384-16620-02-00
Clutch Carrier Assembly
|
384-16620-02-00 |
— | ||
|
03
|
03
90506-12025-00 Spring, Tension |
90506-12025-00 |
US $3.37 |
||
|
04
|
04
439-16630-00-00
Clutch Carrier Assembly
|
439-16630-00-00 |
— | ||
|
05
|
05
90506-12139-00
Spring, Tension
|
90506-12139-00 |
— | ||
|
06
|
06
93606-06091-00 Pin, Dowel |
93606-06091-00 |
US $2.98 |
||
|
07
|
07
296-16512-00-00
Boss, Clutch Hsng
|
296-16512-00-00 |
— | ||
|
08
|
08
384-16586-01-00
Cage
|
384-16586-01-00 |
— | ||
|
09
|
09
90508-10225-00 Spring Torsion 2J |
90508-10225-00 |
US $4.12 |
||
| replacement | |||||
|
09
|
09
905-08107-39-00 Spring, Torsion(2Jg) |
905-08107-39-00 |
US $4.12 |
||
|
10
|
10
93450-41030-00 Circlip, Inner |
93450-41030-00 |
US $5.14 |
||
|
11
|
11
90560-15119-00 Spacer |
90560-15119-00 |
US $6.77 |
||
|
12
|
12
90201-16250-00
Washer, Plate
|
90201-16250-00 |
— | ||
|
13
|
13
90201-16250-00
Washer, Plate
|
90201-16250-00 |
— | ||
|
14
|
14
90560-15120-00
Spacer
|
90560-15120-00 |
— | ||
|
15
|
15
902-01134-09-00
Washer, Plate
|
902-01134-09-00 |
— | ||
| replacement | |||||
|
15
|
15
902-01133-P2-00 Washer, Plate(3Rr) |
902-01133-P2-00 |
from US $4.03 |
||
|
16
|
16
90208-13016-00 Washer, Conical Spr (384-16119- |
90208-13016-00 |
from US $2.50 |
||
|
17
|
17
90179-13073-00
Nut, Spec''l Shape
|
90179-13073-00 |
— | ||
|
18
|
18
1F5-16170-00-00
Pri Drvn Gear
|
1F5-16170-00-00 |
— | ||
|
19
|
19
517-16180-00-00 One Way Boss Comp |
517-16180-00-00 |
from US $26.03 |
||
|
20
|
20
384-15635-00-00 Pawl, Kick |
384-15635-00-00 |
from US $7.52 |
||
|
21
|
21
2T4-15637-00-00 Spring, Pawl |
2T4-15637-00-00 |
from US $6.09 |
||
| replacement | |||||
|
21
|
21
2T4-15637-01-00 Spring, Pawl |
2T4-15637-01-00 |
from US $3.47 |
||
|
22
|
22
1L4-16176-00-00 Collar, Distance |
1L4-16176-00-00 |
US $13.31 |
||
|
23
|
23
386-16150-01-00 Pri Drvn Gear (59T) |
386-16150-01-00 |
US $262.40 |
||
|
24
|
24
137-15654-00-00 Holder, Kick Gear |
137-15654-00-00 |
US $16.06 |
||
|
25
|
25
93410-20009-00 Circlip |
93410-20009-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
