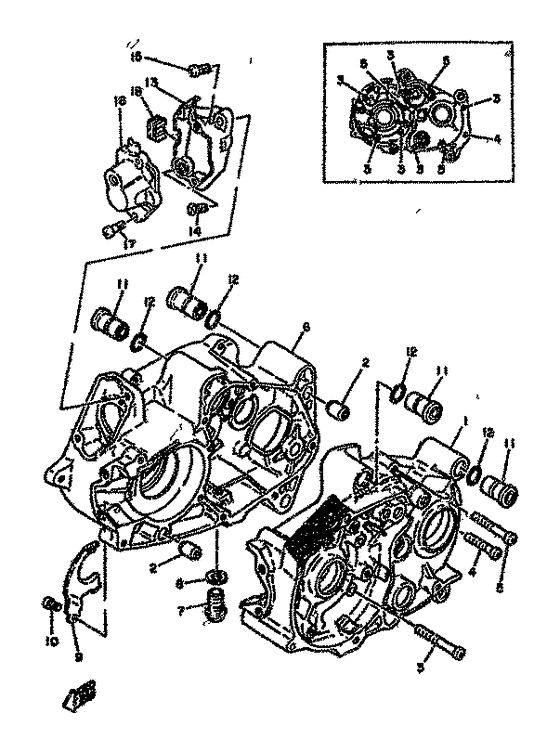

Crankcase Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
440-15111-03-00
Crankcase 1
|
440-15111-03-00 |
— | ||
|
02
|
02
918-30220-16-00 Pin, Dowel |
918-30220-16-00 |
from US $1.42 |
||
| replacement | |||||
|
02
|
02
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
03
|
03
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
03
|
03
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
04
|
04
92501-06035-00 Screw, Pan Head |
92501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
04
|
04
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
04
|
04
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
05
|
05
92501-06045-00 Screw, Pan Head (92503-06045-00 |
92501-06045-00 |
from US $4.25 |
||
| replacement | |||||
|
05
|
05
98580-06545-00 Screw, Pan Head (92503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
06
|
06
440-15121-03-00
Crankcase 2
|
440-15121-03-00 |
— | ||
|
07
|
07
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
08
|
08
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
08
|
08
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
09
|
09
296-15128-00-00 Holder |
296-15128-00-00 |
US $6.91 |
||
|
10
|
10
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.56 |
||
|
11
|
11
530-15317-00-00 Spacer, Eng Mount |
530-15317-00-00 |
US $11.60 |
||
|
12
|
12
93210-22327-00
O-Ring
|
93210-22327-00 |
— | ||
|
13
|
13
439-15416-02-00 Cover, Oil Pump |
439-15416-02-00 |
US $33.25 |
||
|
14
|
14
92701-06012-00 Screw, Flat Head |
92701-06012-00 |
from US $2.41 |
||
| replacement | |||||
|
14
|
14
98707-06012-00 Screw, Flat Head |
98707-06012-00 |
from US $2.09 |
||
|
15
|
15
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
16
|
16
439-15426-03-00
Cover, Oil Pump R
|
439-15426-03-00 |
— | ||
|
17
|
17
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
18
|
18
90480-16179-00
Grommet
|
90480-16179-00 |
— | ||
