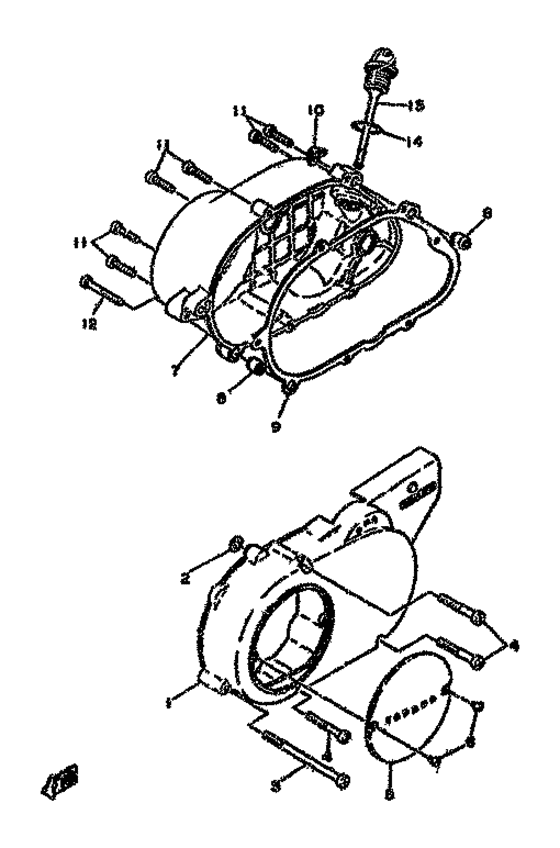

Crankcase cover Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4F4-15411-01-00
Cover, Crankcase L
|
4F4-15411-01-00 |
— | ||
|
02
|
02
90201-063A5-00 Washer, Plate |
90201-063A5-00 |
from US $2.69 |
||
|
03
|
03
92501-06100-00 Screw, Pan Head |
92501-06100-00 |
from US $1.98 |
||
| replacement | |||||
|
03
|
03
98507-06100-00 Screw, Pan Head |
98507-06100-00 |
from US $1.98 |
||
|
04
|
04
92501-06045-00 Screw, Pan Head (92503-06045-00 |
92501-06045-00 |
from US $4.25 |
||
| replacement | |||||
|
04
|
04
98580-06545-00 Screw, Pan Head (92503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
05
|
05
164-15415-00-00 Cover, 1 |
164-15415-00-00 |
from US $23.09 |
||
|
06
|
06
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
06
|
06
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
06
|
06
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
06
|
06
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
06
|
06
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
07
|
07
384-15421-01-00 Cover, Crankcase R |
384-15421-01-00 |
from US $100.15 |
||
|
08
|
08
91830-21014-00 Pin, Dowel |
91830-21014-00 |
from US $1.07 |
||
| replacements | |||||
|
08
|
08
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
08
|
08
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
09
|
09
296-15451-01-00 Gasket, Crankcase Cover 1 |
296-15451-01-00 |
from US $17.43 |
||
| replacement | |||||
|
09
|
09
296-15451-03-00 Gasket, Crcs Cover |
296-15451-03-00 |
from US $17.43 |
||
|
10
|
10
439-15378-00-00
Holder
|
439-15378-00-00 |
— | ||
|
11
|
11
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
12
|
12
925-01060-40-00
Screw, Pan Head
|
925-01060-40-00 |
— | ||
| replacement | |||||
|
12
|
12
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
13
|
13
439-15363-01-00 Plug, Oil |
439-15363-01-00 |
from US $24.09 |
||
|
14
|
14
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.81 |
||
