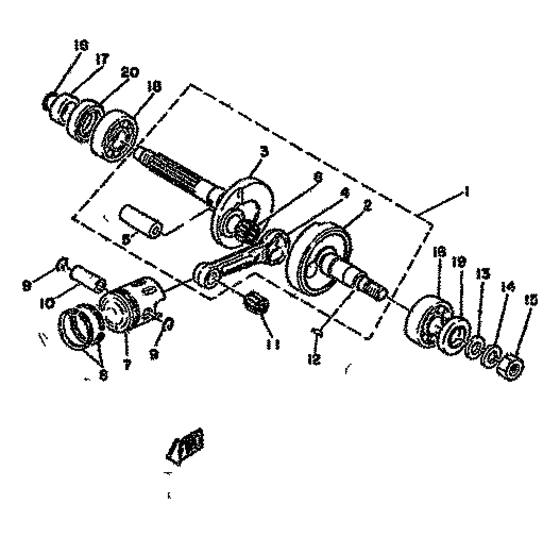

Crankshaft & Piston Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
530-11400-02-00 Crankshaft Assembly |
530-11400-02-00 |
US $611.16 |
||
|
02
|
02
527-11412-03-00
Crank 1
|
527-11412-03-00 |
— | ||
|
03
|
03
530-11422-01-00
Crank 2
|
530-11422-01-00 |
— | ||
|
04
|
04
538-11651-01-00 Rod, Connecting |
538-11651-01-00 |
from US $101.16 |
||
| replacement | |||||
|
04
|
04
3R1-11651-01-00 Rod, Connecting (3R1-11651-00 |
3R1-11651-01-00 |
from US $123.10 |
||
|
05
|
05
257-11681-00-00
Pin, Crank 1
|
257-11681-00-00 |
— | ||
| replacement | |||||
|
05
|
05
257-11681-10-00 Pin, Crank 1 |
257-11681-10-00 |
from US $29.75 |
||
|
06
|
06
93310-41809-00 Bearing |
93310-41809-00 |
from US $19.69 |
||
| replacement | |||||
|
06
|
06
93310-418C4-00 Bearing Cylinder #10 |
93310-418C4-00 |
from US $19.69 |
||
|
07
|
07
367-11631-11-96 Piston StdUr |
367-11631-11-96 |
from US $95.33 |
||
|
07
|
07
367-11631-11-98 Piston (Std)Ur |
367-11631-11-98 |
US $95.33 |
||
|
07
|
07
367-11635-11-00 Piston 1 O/s 0.25Ap |
367-11635-11-00 |
from US $95.33 |
||
|
07
|
07
367-11636-11-00 Piston 2 O/s 0.50Ap |
367-11636-11-00 |
from US $95.33 |
||
|
08
|
08
367-11610-00-00 Piston Ringset Std |
367-11610-00-00 |
from US $63.28 |
||
|
08
|
08
367-11610-10-00 Piston Ringset 1StPiston ring set (1st o/s) Ap |
367-11610-10-00 |
from US $63.28 |
||
|
08
|
08
367-11610-20-00 Piston Ringset 2NdPiston ring set (2nd o/s) Ap |
367-11610-20-00 |
from US $62.75 |
||
|
09
|
09
93450-13022-00 Circlip |
93450-13022-00 |
from US $1.70 |
||
|
10
|
10
527-11633-00-00 Pin, Piston |
527-11633-00-00 |
from US $14.29 |
||
|
11
|
11
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.15 |
||
|
12
|
12
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
13
|
13
92901-12600-00 Washer, Plate |
92901-12600-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
14
|
14
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
15
|
15
95301-12600-00 Nut |
95301-12600-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
16
|
16
932-10180-23-00
O-Ring
|
932-10180-23-00 |
— | ||
| replacement | |||||
|
16
|
16
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $2.02 |
||
|
17
|
17
90387-20345-00 Collar (132-16136-01) |
90387-20345-00 |
US $8.59 |
||
|
18
|
18
93306-20418-00 Bearing |
93306-20418-00 |
from US $21.96 |
||
| replacements | |||||
|
18
|
18
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
18
|
18
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
|
19
|
19
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
20
|
20
93103-28011-00 Oil Seal, Sw-Type (93103-28100) |
93103-28011-00 |
from US $6.40 |
||
