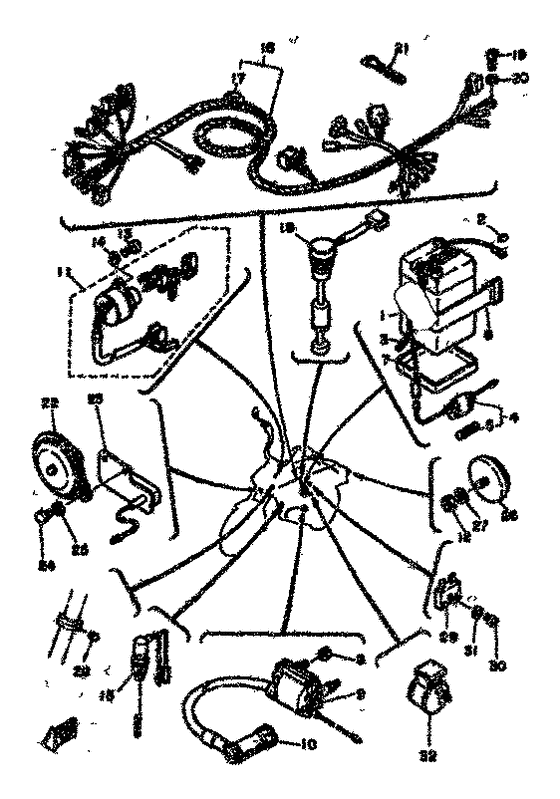

Electrical 1 Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
120-82110-29-00 Battery Assy (6N4-2A-2) |
120-82110-29-00 |
US $53.05 |
||
| replacements | |||||
|
01
|
01
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
|
6N4-2A200-00-00 |
— | ||
|
01
|
01
120-82110-15-00
Battery (6N4-2A-2)
|
120-82110-15-00 |
— | ||
|
02
|
02
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
02
|
02
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
03
|
03
90445-08247-00 Hose (L500) |
90445-08247-00 |
US $10.91 |
||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
353-82150-00-00
Fuse Holder Assy
|
353-82150-00-00 |
— | ||
| replacements | |||||
|
04
|
04
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
|
04
|
04
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
05
|
05
116-82151-00-00
Fuse (12V-10A)
|
116-82151-00-00 |
— | ||
| replacement | |||||
|
05
|
05
1A0-82151-00-00 Fuse (12V-10A) |
1A0-82151-00-00 |
from US $4.96 |
||
|
06
|
06
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
06
|
06
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
07
|
07
268-82122-00-00
Seat, Battery
|
268-82122-00-00 |
— | ||
|
08
|
08
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
08
|
08
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
09
|
09
439-82310-40-00 Ignition Coil Assy |
439-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
09
|
09
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
10
|
10
512-82370-10-00 Plug Cap Assembly |
512-82370-10-00 |
from US $44.80 |
||
| replacement | |||||
|
10
|
10
7KA-82370-00-00 Plug Cap Assy |
7KA-82370-00-00 |
from US $52.92 |
||
|
11
|
11
5F5-82508-20-00
Main Switch Assy
|
5F5-82508-20-00 |
— | ||
|
12
|
12
953-01056-00-00
Nut
|
953-01056-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
13
|
13
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
14
|
14
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
15
|
15
1J7-82530-00-00 Stop Switch Assy |
1J7-82530-00-00 |
from US $30.84 |
||
| replacement | |||||
|
15
|
15
1J7-82530-02-00
Stop Switch
|
1J7-82530-02-00 |
— | ||
|
16
|
16
5F5-82590-20-00
Wire Harness Assy
|
5F5-82590-20-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
3K7-81980-00-00 Diode Assy |
3K7-81980-00-00 |
from US $15.44 |
||
|
18
|
18
542-85720-02-00 Oil Lvl Guage Assembly |
542-85720-02-00 |
US $69.56 |
||
| replacement | |||||
|
18
|
18
4L0-85720-00-00
Oil Lvl Guage Assembly
|
4L0-85720-00-00 |
— | ||
|
19
|
19
92501-06008-00 Screw, Pan Head |
92501-06008-00 |
US $1.56 |
||
| replacements | |||||
|
19
|
19
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
19
|
19
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
20
|
20
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
21
|
21
168-83936-01-00 Band, Switch Cord |
168-83936-01-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
22
|
22
2T5-83371-10-00 Horn |
2T5-83371-10-00 |
US $68.84 |
||
| replacement | |||||
|
22
|
22
2A7-83371-10-00
Horn
|
2A7-83371-10-00 |
— | ||
|
23
|
23
511-85370-10-00
Resistor Assy
|
511-85370-10-00 |
— | ||
|
24
|
24
97301-06012-00 Bolt |
97301-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
24
|
24
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
24
|
24
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
25
|
25
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
449-85131-01-00 Reflector, Rear 1 |
449-85131-01-00 |
from US $22.21 |
||
| replacement | |||||
|
26
|
26
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
27
|
27
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
28
|
28
90338-04010-00 Plug, Spec''l Shape |
90338-04010-00 |
US $3.40 |
||
|
29
|
29
353-81970-50-00 Rectifier AssyUr |
353-81970-50-00 |
US $40.62 |
||
| replacements | |||||
|
29
|
29
353-81970-M0-00 Rectifier AssyUr |
353-81970-M0-00 |
from US $40.62 |
||
|
29
|
29
353-81970-M1-00 Rectifier AssyUr |
353-81970-M1-00 |
US $17.99 |
||
|
29
|
29
353-81970-63-00 Rectifier AssemblyUr |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
29
|
29
353-81970-M0-00 Rectifier AssyUr |
353-81970-M0-00 |
from US $40.62 |
||
|
29
|
29
353-81970-M1-00 Rectifier AssyUr |
353-81970-M1-00 |
US $17.99 |
||
|
30
|
30
98501-05020-00 Screw, Pan Head |
98501-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
30
|
30
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
31
|
31
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
31
|
31
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
31
|
31
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
32
|
32
3K3-83350-12-00
Flasher Relay Assy
|
3K3-83350-12-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
