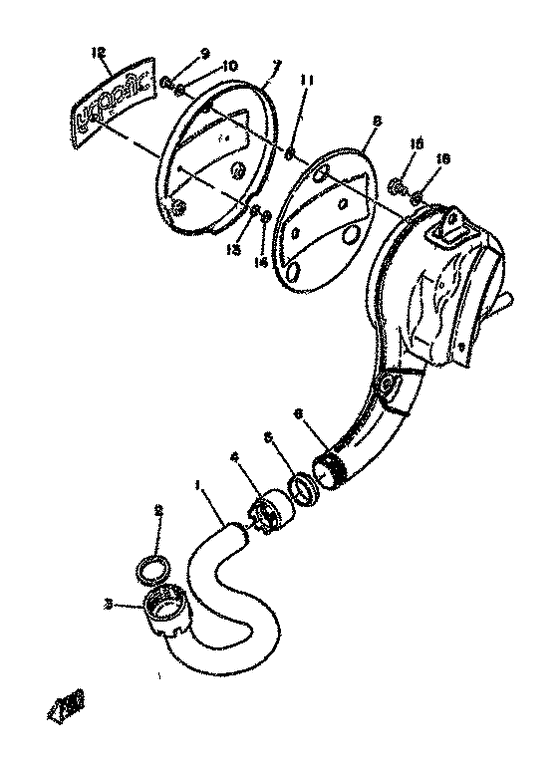

Exhaust Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
439-14611-03-00 Pipe, Exhaust L |
439-14611-03-00 |
US $104.76 |
||
|
02
|
02
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
|
03
|
03
1L4-14612-00-00 Nut, Ring |
1L4-14612-00-00 |
from US $15.73 |
||
|
04
|
04
395-14713-00-00 Nut, Muffler Joint |
395-14713-00-00 |
from US $25.11 |
||
|
05
|
05
132-14714-01-00 Gasket, Muffler |
132-14714-01-00 |
from US $16.43 |
||
| replacements | |||||
|
05
|
05
3NA-14714-01-00 Gasket, Muffler |
3NA-14714-01-00 |
from US $16.43 |
||
|
05
|
05
3NA-14714-00-00 Gasket, Muffler |
3NA-14714-00-00 |
US $11.45 |
||
|
06
|
06
1F5-14710-00-00
Muffler Assy 1
|
1F5-14710-00-00 |
— | ||
|
07
|
07
439-14718-01-00 Protector, Muff 1 |
439-14718-01-00 |
from US $113.43 |
||
|
08
|
08
550-14757-00-00 Damper, Muffler 2 |
550-14757-00-00 |
US $25.50 |
||
|
09
|
09
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
09
|
09
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
09
|
09
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
10
|
10
902-02060-10-00
Washer Plate 178147660000
|
902-02060-10-00 |
— | ||
| replacement | |||||
|
10
|
10
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
11
|
11
90430-06012-00 Washer, Plate |
90430-06012-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
|
12
|
12
439-14729-00-00 Emblem, Protector |
439-14729-00-00 |
from US $59.69 |
||
|
13
|
13
90202-04003-00 Washer, Plate |
90202-04003-00 |
from US $2.41 |
||
|
14
|
14
116-28317-00-00 Nut, Special |
116-28317-00-00 |
US $1.70 |
||
| replacement | |||||
|
14
|
14
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
|
15
|
15
97301-08016-00 Bolt |
97301-08016-00 |
US $4.53 |
||
| replacement | |||||
|
15
|
15
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
16
|
16
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
