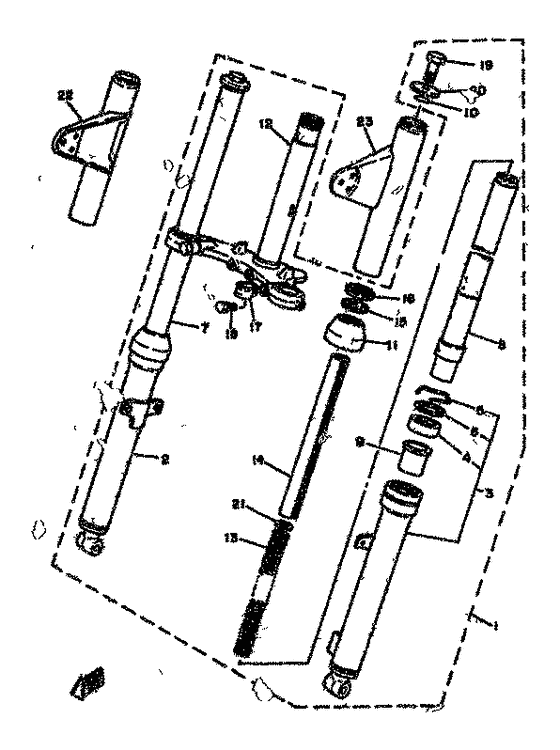

Front fork Diagram Yamaha LB80
- Year
- 1981
- Model code
- 5F5
- Sales region
- Europe (General) (999)
- Engine Capacity
- 80
- Model
- LB80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5F5-23101-00-00
Front Fork Assy
|
5F5-23101-00-00 |
— | ||
|
02
|
02
4F4-23136-00-35 Tube, Outer 2 |
4F4-23136-00-35 |
US $222.31 |
||
|
03
|
03
4F4-23126-00-35
Tube, Outer 1
|
4F4-23126-00-35 |
— | ||
|
04
|
04
367-23145-60-00 Oil Seal |
367-23145-60-00 |
from US $18.17 |
||
| replacement | |||||
|
04
|
04
3VR-23145-00-00 Oil Seal |
3VR-23145-00-00 |
from US $16.43 |
||
|
05
|
05
1T8-23156-00-00 Ring, Snap |
1T8-23156-00-00 |
from US $4.82 |
||
|
06
|
06
367-23146-60-00 Washer, Oil Seal |
367-23146-60-00 |
US $12.33 |
||
|
07
|
07
4F4-23134-00-00 Tube, Inner 2 |
4F4-23134-00-00 |
from US $144.18 |
||
|
08
|
08
4F4-23124-00-00 Tube, Inner 1 |
4F4-23124-00-00 |
US $292.16 |
||
| replacement | |||||
|
08
|
08
4J9-23124-00-00 Tube, Inner 1 |
4J9-23124-00-00 |
US $292.16 |
||
|
09
|
09
367-23125-60-00 Metal, Slide 1 |
367-23125-60-00 |
from US $24.51 |
||
|
10
|
10
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
11
|
11
367-23144-60-00 Seal, Dust |
367-23144-60-00 |
US $19.39 |
||
|
12
|
12
439-23340-02-33
Under Bracket Comp
|
439-23340-02-33 |
— | ||
| replacement | |||||
|
12
|
12
2T5-23340-00-33
Under Bracket
|
2T5-23340-00-33 |
— | ||
|
13
|
13
1F2-23141-00-00
Spring, Front Fork
|
1F2-23141-00-00 |
— | ||
|
14
|
14
1F2-23166-00-00
Spacer, Oil Lock
|
1F2-23166-00-00 |
— | ||
|
15
|
15
122-23163-00-00 Gasket |
122-23163-00-00 |
from US $7.65 |
||
| replacement | |||||
|
15
|
15
164-23163-00-00 Gasket |
164-23163-00-00 |
from US $7.65 |
||
|
16
|
16
354-23115-90-00
Guide, Cover Upper
|
354-23115-90-00 |
— | ||
|
17
|
17
260-23318-40-00 Wire, Holder 1 |
260-23318-40-00 |
US $5.38 |
||
|
18
|
18
1M3-23346-00-00 Bolt 1 |
1M3-23346-00-00 |
US $8.64 |
||
| replacement | |||||
|
18
|
18
1M3-23346-01-00 Bolt 1 |
1M3-23346-01-00 |
US $6.46 |
||
|
19
|
19
395-23111-00-00 Bolt, Cap |
395-23111-00-00 |
US $20.71 |
||
|
20
|
20
122-23112-00-00
Washer, Cap
|
122-23112-00-00 |
— | ||
|
21
|
21
290-23149-00-00
Washer, Spring Upr
|
290-23149-00-00 |
— | ||
|
22
|
22
439-23131-00-E1
Cover, Upper 2
Ur |
439-23131-00-E1 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
22
|
22
439-23121-00-33
Cover, Upper 1
Ur |
439-23121-00-33 |
— | ||
|
22
|
22
439-23131-00-1A
Cover, Upper 2
Ur |
439-23131-00-1A |
— | ||
|
22
|
22
439-23131-00-29
Cover, Upper 2
Ur |
439-23131-00-29 |
— | ||
|
22
|
22
439-23131-00-33
Cover, Upper 2
Ur |
439-23131-00-33 |
— | ||
|
23
|
23
439-23121-00-1A
Cover, Upper 1
Ur |
439-23121-00-1A |
— | ||
|
23
|
23
439-23121-00-29
Cover, Upper 1
Ur |
439-23121-00-29 |
— | ||
|
23
|
23
439-23121-00-E1
Cover, Upper 1
Ur |
439-23121-00-E1 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
